ALFA Heat Exchanger Plate M10MX Titanium Plate for Seawater Heat Exchanger

Specifications

Brand Name :

Model Number :

M10MX

Certification :

ISO9001

Place of Origin :

china

MOQ :

20 pcs

Price :

$30/Pcs

Payment Terms :

T/T, Western Union, MoneyGram

Supply Ability :

100000 packs/month

Delivery Time :

5-8 days

Packaging Details :

wooden case

Plate Thickness :

0.5 mm/0.6mm

Plate Arrangement :

dialognal

Center size :

719*223 mm

Max Working Temperature :

Up to 170°C

Certifications :

ISO9001, CE, UL

Gasket Material :

EPDM

Gasket Glue :

Non-toxic, food grade

Material :

Titanium

Plate Type :

Gasketed Plate

Heat Transfer Area :

0.24 m2

Max Working Pressure :

15 bar

Plate L*Width :

871*371 mm

Application :

HVAC, Refrigeration, Food & Beverage

Plate Connection :

Clip-on

Description

M10MX Titaniumplate,dialognal heat exchanger plate,Channel plate,flow Plate with clip on Gasket NBR for Seawater Heat exchanger

Detailed Product Description
1. Equal to ALFA M10MX plate heat exchanger.
2. Plate gasket: NBR / EPDM
3. Plate material: 316L /304/Ti material
Same as ALFA M10 gasket plate heat exchanger, can replace original M10 plates and gasket.
Material: 316L, 304, Ti, SMO, Hastelloy
Thickness: 0.5mm, 0.6mm
Gasket: NBR, EPDM
Gasket type: clip on
Applications:
District heating, district cooling, marine oil cooling, chemical, food industry

Competitive Advantages Well and High Quality Control

Well and High Quality Control

ALFA Heat Exchanger Plate M10MX Titanium Plate for Seawater Heat Exchanger

Model	Corrugation Angle	Corrugation Depth (mm)	Angle Hole Diameter (mm)	Angle Hole Center Distance (mm)	Plate Size (mm)	Area of Plate (㎡)
M10B	60°118°	2.6	φ97	719*223	874*373	0.24
M10M	57°121°	4	φ98	719*223	871*371	0.24

1. Plate material

*stainless steel AISI304(14301)

*stainless steel AIsI316(14401)

*Ti, ti-*Titanium and titaniumpalladium

Special steel *HASTELLoY alloy *254SMO

*20Cr,18Ni,,nickel(Ni) etc

2. Gaster material

*NBR,HT-NBR,HNBR

*EPDM,EPDM-NT,EPDM-HT

*CR

*Viton (FKM):Viton-A, Viton-G,Viton-B

3.Material Choose reference:

Plate material	Suitable for fluid
Stainless(AISI304,AISI316):	Clean water, river water, cooking oil, mineral oil
Ti,Ti-Pd:	Sea water, salt water, salt
20Cr,18Ni,6Mo(254SMO):	Dilute sulfuric acid, dilute salinized water solution, inorganic water solution
Ni:	High temperature, high viscosity caustic soda
HASTELLOY:	Concentrated sulfuric acid, hydrochloric acid, phosphoric acid
Sealing material:	adapt temperature	Suitable for fluid
NBR	-15~+120℃	Water, sea water, cooking oil, salt water
HNBR	-15~+140℃	High temperature mineral oil, high temperature water
EPDM	-25~+170℃	Hot water, water vapor, acid, alkali
Viton	-5~+130℃	Acid, alkali, fluid

4.Poduct Show:

ALFA Heat Exchanger Plate M10MX Titanium Plate for Seawater Heat Exchanger

5.Other models

ALFA Heat Exchanger Plate Gasket
M3	M15M	M10BW	AM20B	Clip8	TL6B	T20S
M6B	MX25M	MK15BW	A20B	Clip10	TS6M	TL35S
M6M	MX25B	T20MW	AM20	Clip15	TL10B	TL35B
M6MX	M30	MA30W	AK20	P16	TL10P	T45M
M10B	MA30S	AM10	AX30B	P26	TL15B	M20
M10M	MA30M	A10B	AX30BW	P32	T20M	T20MW
M15B	M6MW	A15B	Clip6	P36	T20B	P30
Front6/Clip6WS

6.More Information about spares

ALFA Heat Exchanger Plate M10MX Titanium Plate for Seawater Heat Exchanger

Send your message to this supplier

Message*

Email*

Phone or WhatsApp*

Name

Company

Please reply me within 24 hours.

Yes! I would like your verified suppliers matching service!

Send Now

Submission successful!

ALFA Heat Exchanger Plate M10MX Titanium Plate for Seawater Heat Exchanger

Ask Latest Price

Product Detail

Brand Name :

Model Number :

M10MX

Certification :

ISO9001

Place of Origin :

china

MOQ :

20 pcs

Price :

$30/Pcs

Contact Supplier

shanghai tengbao heat exchanger Co,.ltd

Site Member

6 Years

Since 2022

Business Type :

Manufacturer, Exporter, Trading Company

Main Products :

ALFA Heat Exchanger Plate, plate heat exchanger,

Total Annual :

1000000-10000000

Employee Number :

10~20

Certification Level :

Site Member

Competitive Advantages Well and High Quality Control

ALFA Heat Exchanger Plate M10MX Titanium Plate for Seawater Heat Exchanger

shanghai tengbao heat exchanger Co,.ltd

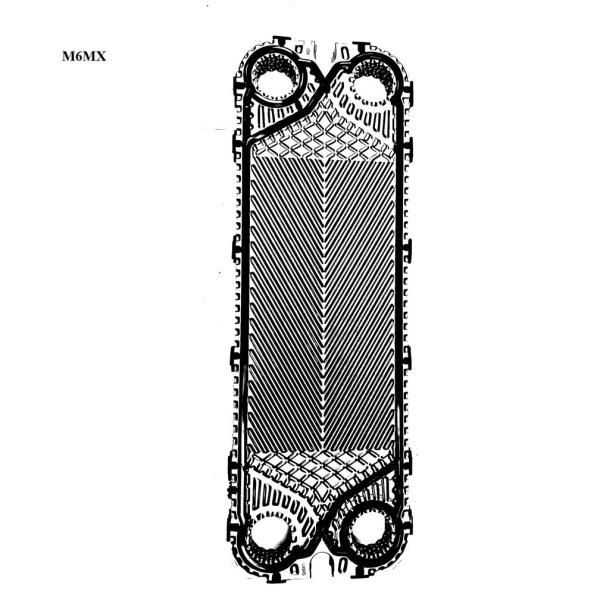

M6MX Titanium/0.6 dialognal flow Plate LT with Gasket NBR for Seawater Heat
