Specifications
Brand Name :
BEST
Model Number :
H TYPE
Certification :
CCVO SANCAP
Place of Origin :
CHINA
MOQ :
5 units
Price :
60-200 usd
Payment Terms :
Western Union, L/C, D/A, T/T
Supply Ability :
1000 units one week
Delivery Time :
5-8 days
Packaging Details :
20ft container, 40Hq container
Product name :
Automatic Chicken Cage Equipment
Type :
H Type
Tiers :
3 Tiers, 4 Tiers, 5 Tiers
Size :
1.25m by 1 by 1.95m
Capacity :
144 Birds
Material :
Q235 Steel
Surface Treatment :
Hot galvanized
Weight :
120 kg
Lifespan :
25 Years
Key Words :
Full Automatic Poultry Cage System
Description
50,000 Birds Poultry Farm With Automatic Chicken Cage Equipment Mia

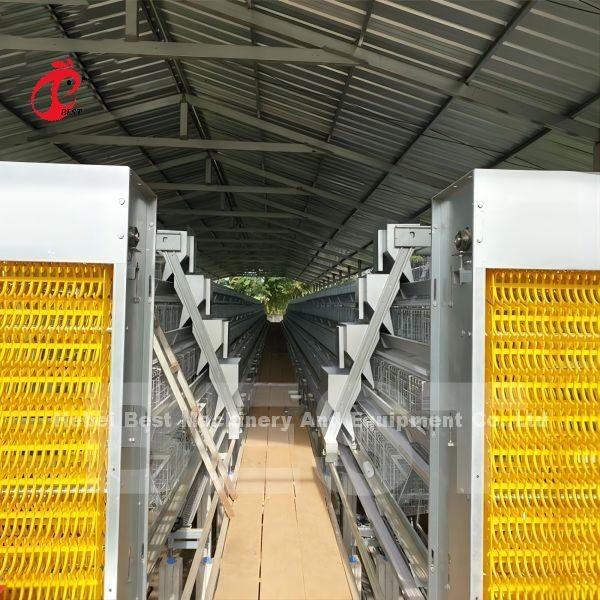

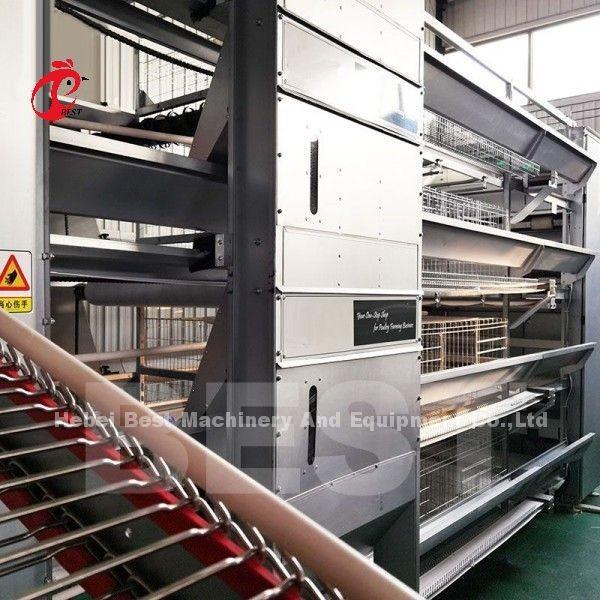

Automatic chicken cage equipment introduction
Automatic chicken cage equipment include chicken cage system, drinking system, automatic feeding system, automatic eggs collection system, manure removal system. The farm owns the equipment for automated management
Parameter list
Production name Automatic chicken cage equipment
Chicken cage system H type/ A type
Drinking system Pvc material
Automatic feeding system Feeding cart used in cage
Automatic eggs collection system

Automatic eggs collection machine

Egg collection belt

Plastic egg collection belt hooks
Manure removal system

Longitudinal manure removal machines

Longitudinal manure removal belt

Transverse manure conveyor belts
Chicken cage system
Chicken cage is cold-drawn steel mesh welding and then hot dig galvanized, corrosion resistance, long life time. The bottom mesh is welded by steel mesh which wire diameter. Is 2mm,and with re-enforced steel mesh, not only flexible, but also reduce the tired of layer, and reduce the egg damage rate.The door of cage have key and lock which stop chicken run away, but stop the chicken waste the feed when eating
Automatic Chicken Cage Automatic Feeding System Used In Poultry Chicken Farm Mia
Drinking system
There are 2 to 3 nipple drinkers for each two cage sections on the pvc pipes which are located between two cage sections. The “V” shape leakage gutter underneath the water pipes holds the water drops and prevent the drops to the manure belt, therefore a drier manure is obtained
The automatic feeding system
1. It is the feeding system with feed carts. Our feeding system with feed carts which enable adjust to make feed distributed hygienically, homogeneous, mixed and equally
2. In this system, feed is distributed automatically to the feed carts from the feed silos by the spiral augers located in a pipe with 90-150 mm diameter
3. Feed carts are moved by steel cables and 0.75-1.50 hp (according to the chicken house length and hopper) electric gear motor the rails that are located on the top of the cages
Automatic Chicken Cage Automatic Feeding System Used In Poultry Chicken Farm Mia
Automatic egg collection system
1. Automatic egg collection unit made of galvanized sheet and apparatus produced by our advanced own production machines, the egg bands and lift engine powers are 0.75 -1.50 hp
2. The egg bands made of import cloth and the joint components made of plastic sheet
Manure removal system
1. Manure is cleaned and discharged by the polypropylene (PP) manure belts of 1.10 mm thickness
2. These pp belts are located under neath every tier and row of the cages and towed by drive reducer engines to clean the manure in a flawless way
