Broiler Poultry Farming 45 Chicken Feeding Line Drinking Line Automatic Equipment Rose
Broiler Poultry Farming 45 Chicken Feeding Line Drinking Line Automatic Equipment Rose
Broiler Poultry Farming 45 Chicken Feeding Line Drinking Line Automatic Equipment Rose
Broiler Poultry Farming 45 Chicken Feeding Line Drinking Line Automatic Equipment Rose
Specifications
Brand Name :
BEST
Model Number :
Feeding
Certification :
ISO9001, ISO14001, OHSAS18001, CE, SONCAP, PVOC
Place of Origin :
Hebei, China
MOQ :
1 set
Price :
200-15000USD
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets per month
Delivery Time :
5-10 days
Packaging Details :
full container load
Material :
steel and plastic
Applicable industries :
Farms, Other, Poultry farm, Animal husbandry, Chicken
Core components :
Motor, Pump, Other, Pressure vessel
Weight :
60kg
Product name :
Automatic poultry farm equipment chicken feeding
Feed pipe :
45mm diameter, 275 g/sq.m zinc coating
Warranty of core components :
2 years
Feature :
Long Service Life
Gear motor power :
380v, 0.75kw
Feed pan capability :
45-60 Chicken
Description

Broiler Poultry Farming Chicken Feeding Line Drinking Line Automatic Equipment Rose

Product information

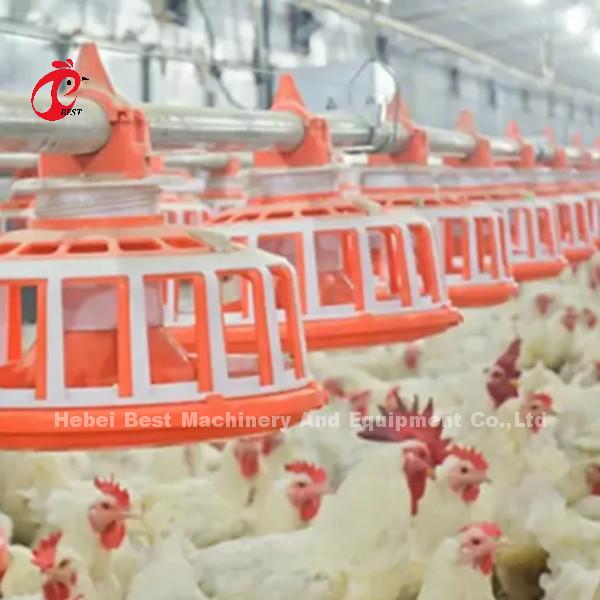

Poultry farm chicken free raising pan feeding system
Consists of a driving device, a hopper, a conveying pipe, an auger, trays, a suspension lifting device, an anti-perching device, and a feed sensor

The main function of the system is to convey the feed in the hopper into each tray to ensure the eating of the broiler and automatically control the conveying opening/closing of the motor by the material level sensor to feed automatically

Product specification
Automatic feeding line and drinking line for broiler

Marketing type Direct factory with nice quantity
Feed pipe 45mm diameter, 275 g per sq.m zinc coating
Capacity 30000 to 50000 birds
Service life More than 10 years
Sensor Imported from Germany
Advantage Excellent epidemic prevention effect
Feed pan capability 45 to 60 Chicken

Product advantage of feeding and drinking line
1. Rills feed pan with special design, can save the feed
2. No need to open the feed pan. Feed downfalls to the side of the shallow plate, to make sure that even the birds stand outside of the pans, they can also eat feed conveniently
3. Colorful, birds can easily see the feed pan and eat the feed
4. PP material, firm and durable, corrosion resistance, long service life
5. Convenient to dismantle and easy to clean

Broiler Poultry Farming 45 Chicken Feeding Line Drinking Line Automatic Equipment Rose

Product description of automatic feeding and drinking line
1. Motor
Slowdown motor driver 750w, 380v, transmission speed 450 kg per hour
2. Hopper
Bin volume 120L, material, hot deep galvanized sheet, material thickness 1.5mm
3. Feed pipe
Hot galvanized steel with the zinc thickness of 275 g per sq.m
4. Auger
Import from South Africa, high quality and durable
5. Hanging system
Composed of winch, pulley, fixed parts, steel wire rope and wire clamp, etc. Feed pipe, hot galvanized steel with the zinc thickness of 275 g per sq.m
6. Feeder sensor
Installed in the feed pan, control the drive motor starting or stop

Broiler Poultry Farming 45 Chicken Feeding Line Drinking Line Automatic Equipment Rose
