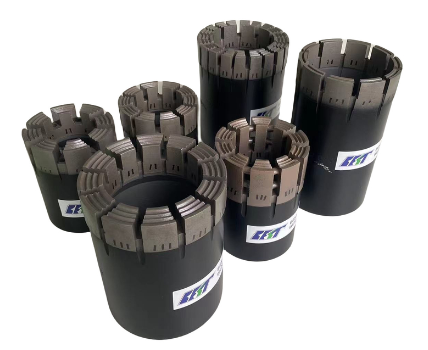

Cylindrical Impregnated Diamond Core Bit Wear Resistance
Cylindrical Impregnated Diamond Core Bit Wear Resistance
Cylindrical Impregnated Diamond Core Bit Wear Resistance
Cylindrical Impregnated Diamond Core Bit Wear Resistance
Cylindrical Impregnated Diamond Core Bit Wear Resistance
Cylindrical Impregnated Diamond Core Bit Wear Resistance
Cylindrical Impregnated Diamond Core Bit Wear Resistance
Cylindrical Impregnated Diamond Core Bit Wear Resistance
Specifications
Brand Name :
Best
Model Number :
AQ, BQ, NQ, NQ3, HQ, HQ3, PQ, PQ3
Certification :
GB/T19001-2016/ISO9001:2015
Place of Origin :
China
MOQ :
5
Price :
$110-$250
Supply Ability :
10000 per month
Delivery Time :
3-10 Days
Packaging Details :
Box, Plywood Case or as Request.
Product Name :
Impregnated Diamond Core Bit
Shape :
Cylindrical
Cutter Type :
Impregnated Diamond
Material :
Carbide, Diamond
Surface Finish :
Smooth
Thread Type :
API, Metric, Etc.
Connection :
Male/Female
Application :
Mining, Geological Exploration
MOQ :
10 Piece
Payment Term :
T/T, L/C
Surface Treatment :
Polishing, Sandblasting
Warranty :
1 Year
Description

Wear Resistance Impregnated Diamond Core Bit From Wuxi Manufacturer

Impregnated Diamond Core Bits are manufactured with very small, high quality synthetic diamonds, mixed evenly through a metal alloy matrix. The matrix erodes away at the same rate as the diamonds become worn and rounded. Thus new sharp diamonds are exposed to continue cutting through the rock. In most geological formations, impregnated bits are more economical to use than other bits.

Applications: Mixed, fractured or faulted geologies that would quickly dull solid diamond or PDC bits. Provides longrun times before resharpening required.
Advantages: Less expensive than other designs; tolerates varied lithologies and impact; maintains cutting edges longer than natural diamond bits.

Cylindrical Impregnated Diamond Core Bit Wear Resistance

Core bit choice chart:

Rock Type
Rock Hardness
Abrasiveness
Hardness NO.

Clay,Shale,Ash Stone,Gypsum,Tuff,Serpentinite,Calcite,
Coal,Argillite,Volcanics,Sandly Pebble
Soft
Medium		 BST 1/3

Sandstone,Lithoid Limestone, Limonite
Medium Soft
Very High		 BST 3/5

Medium Hard Sandstone,Hard Shale,
Hard Ash Stone,Dolomitic,Marble,Hard Schist,
Hard Streak Stone,Siltstone,Andestite
Medium
High		 BST 5/7
Peridotite,Gneiss,Limonite
Medium Hard
Medium High		 BST 7/9

Pegmatite,Schist,Norite,Syenite,Gabbro,Peridotite,
Grandiorite,Granite,Basalt,Hard Streak Stone
Hard
Medium To Low		 BST 9/11
Amphibolite,Diorite,Rhyolite,Quartzite Very Hard Medium To Low BST 11

Silicious,Hard Sandstone,Rhyolite,
Dense Quartzite,Ironstone,Taconite,Jasperite,Chert
Utral Hard
Low		 BST 14

Cylindrical Impregnated Diamond Core Bit Wear Resistance

Detailed photos:

Packing:

Cylindrical Impregnated Diamond Core Bit Wear Resistance Cylindrical Impregnated Diamond Core Bit Wear Resistance

Situated in Wuxi City which is renowned as geological drilling equipment manufacturing cernter of China,Best Drilling has been specializing in geological equipment since 2008. and now it has become one of the leading manufacturers in this industry.

Best Drilling people sincerely look forward to working with you in the near future.
