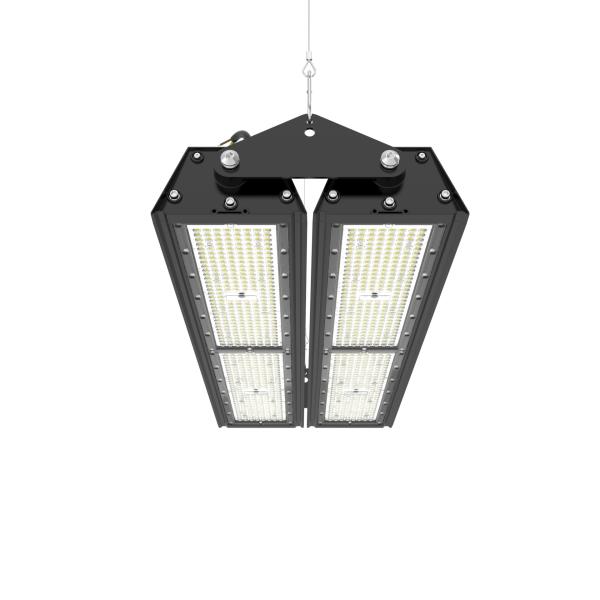

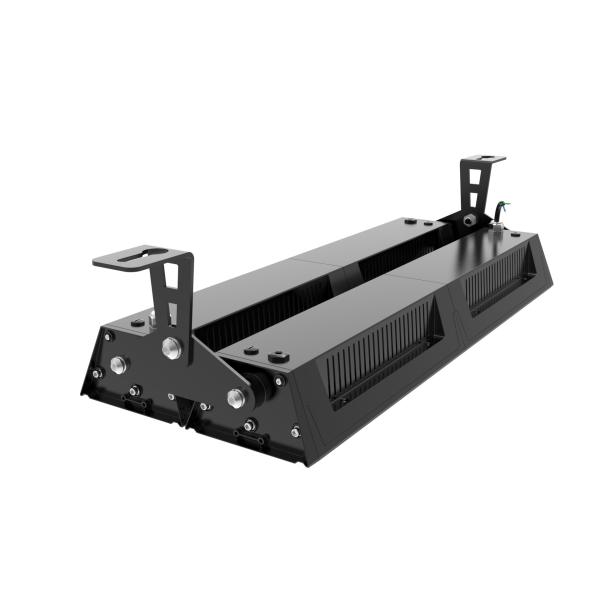

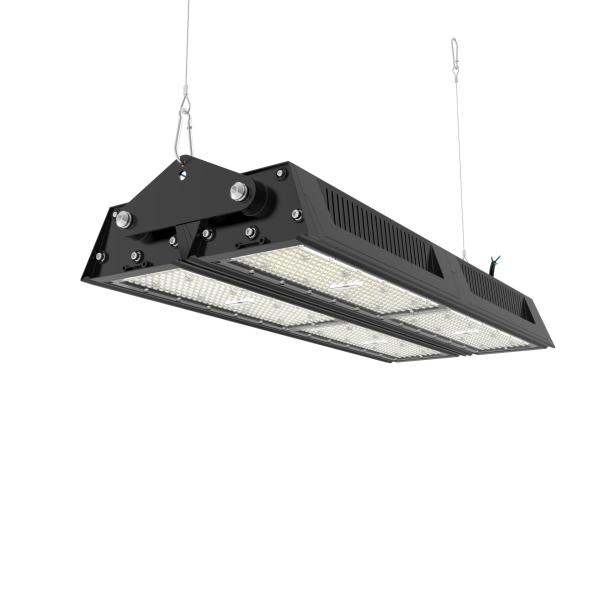

480W LED Linear High Bay Light 170lm/W Commercial / Industrial LED Highbay Light
480W LED Linear High Bay Light 170lm/W Commercial / Industrial LED Highbay Light
480W LED Linear High Bay Light 170lm/W Commercial / Industrial LED Highbay Light
480W LED Linear High Bay Light 170lm/W Commercial / Industrial LED Highbay Light
480W LED Linear High Bay Light 170lm/W Commercial / Industrial LED Highbay Light
480W LED Linear High Bay Light 170lm/W Commercial / Industrial LED Highbay Light
480W LED Linear High Bay Light 170lm/W Commercial / Industrial LED Highbay Light
480W LED Linear High Bay Light 170lm/W Commercial / Industrial LED Highbay Light
480W LED Linear High Bay Light 170lm/W Commercial / Industrial LED Highbay Light
480W LED Linear High Bay Light 170lm/W Commercial / Industrial LED Highbay Light
Specifications
Brand Name :
Kingsway
Model Number :
LHB
Certification :
CE UKCA ROHS ErP
Place of Origin :
China
MOQ :
200pcs of each
Packaging Details :
Standard package
Delivery Time :
Depend on order quantity
Payment Terms :
TT, OA
Supply Ability :
Depend on order quantity
Price :
Negotiable
Name :
480W LED Linear High Bay Light
Material :
Die-casting Aluminium housing with Polycarbonate
Beam Angle :
30x70° / 60x90° / 40x110°
Wattage :
100W/120W/150W/200W/240W/300W/400W/480W
Color Temp :
3000K/4000K/ 5000K/5700K/6500K
Rated :
IP65 and IK09
Efficiency :
150lm/w or 170lm/w
Driver brand :
Lifud
Mounting options :
pendant mounting and ceiling mounting
Description

480W LED Linear High Bay Light 170lm/W Commercial And Industrial Lighting 30x70° 60x90° 40x110°

Product Description

The LED Linear High Bay is the best replacement for industrial or commercial applications. Its lumen output is much more better than metal halide high bay lights and high-pressure sodium lights, offering high performance, energy saving and long life. Light can be dimmed to ideal brightness levels and achieve the exact light level that needed for the applications. LED High Bays have a sleek, robust design that meets a variety of application needs, such as warehouses, factory, supermarkets, retail stores, gyms and garages and many other applications.

This linear high bay is available from 100W to 480W,high visual comfort,rectangular light type specially designed for warehouse aisles or storage rack, the efficacy is available for 150lm/w and 170lm/w, the professional light distribution makes maximum use of lumens, Multiple mounting options for replacement and new installations.

ECO LED linear high bay data sheet.pdf

480W LED Linear High Bay Light 170lm/W Commercial / Industrial LED Highbay Light

Features

●Die-casting Aluminium housing with Polycarbonate (with integrated lenses)

●House finish, Electrostatic polyester powder coating

●Offer ultra high efficiency up to 150lm/w or 170lm/w

●Options for beam angle, 30x70°,60x90° , 40x110°

●Safety, open circuit protection,short circuit protection and overvoltage protection

●Driver brand could be own brand, Lifud or MEANWELL

●Suitable for wet locations, IP65 rated, IK09

●Surge protection, 6KV-Line-Line 6KV-Line-Earth

●Installation height 4m to 12m

●Operation Condition temp:-40 ° to +50 °, Humidity:10%-90%RH

●Plug and Play PIR or microwave sensor and emergency kit

●Mounting options, pendant mounting and ceiling mounting

Specification

Model Power Light efficiency Luminous Flux Input Voltage Dimension IP code Warranty
KS-LHB04-100W 100W >150lm/w 15000LM AC220-277V 585*205*175mm IP65 5 year
KS-LHB04-120W 120W >150lm/w 18000LM AC220-277V 585*205*175mm IP65 5 year
KS-LHB04-150W 150W >150lm/w 22500LM AC220-277V 945*205*175mm IP65 5 year
KS-LHB04-200W 200W >150lm/w 30000LM AC220-277V 945*205*175mm IP65 5 year
KS-LHB04-240W 240W >150lm/w 36000LM AC220-277V 945*205*175mm IP65 5 year
KS-LHB04-300W 300W >150lm/w 45000LM AC220-277V 1300*205*175mm IP65 5 year
KS-LHB04-400W 400W >150lm/w 60000LM AC220-277V 955*360*175mm IP65 5 year
KS-LHB04-480W 480W >150lm/w 72000LM AC220-277V 955*360*175mm IP65 5 year
