Round LED High Bay Lights 100W 150W 200W Commercial Emergency Light Fixtures
Round LED High Bay Lights 100W 150W 200W Commercial Emergency Light Fixtures
Round LED High Bay Lights 100W 150W 200W Commercial Emergency Light Fixtures
Round LED High Bay Lights 100W 150W 200W Commercial Emergency Light Fixtures
Round LED High Bay Lights 100W 150W 200W Commercial Emergency Light Fixtures
Round LED High Bay Lights 100W 150W 200W Commercial Emergency Light Fixtures
Round LED High Bay Lights 100W 150W 200W Commercial Emergency Light Fixtures
Round LED High Bay Lights 100W 150W 200W Commercial Emergency Light Fixtures
Specifications
Brand Name :
Kingsway
Model Number :
UFO
Certification :
CE UKCA ROHS ErP
Place of Origin :
China
MOQ :
200pcs of each
Price :
Negotiable
Payment Terms :
TT, OA
Supply Ability :
Depend on order quantity
Delivery Time :
Depend on order quantity
Packaging Details :
Standard package
Name :
Commercial Emergency Light Fixtures
Wattage :
100W/150W/200W selectable
Efficiency :
15000lm/22500lm/30000lm
Driver brand :
Private driver brand
Dimming :
0-10V or DALI dimming
Emergency :
3 hours
Emergency power :
15W/20W30W selectable
Description

Industrial High Bay Light For Warehouse Emergency Commercial Light Fixtures

Product Description

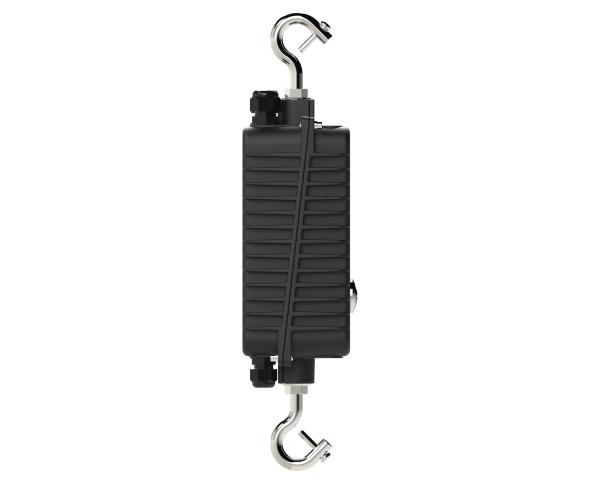

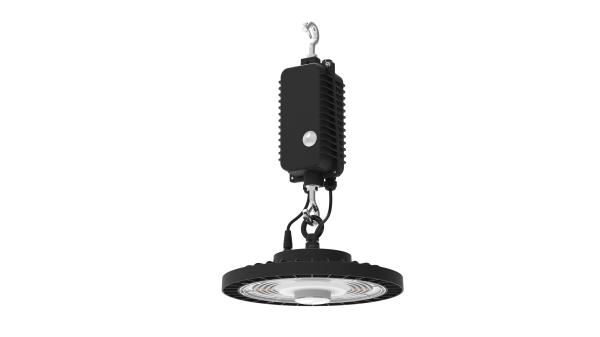

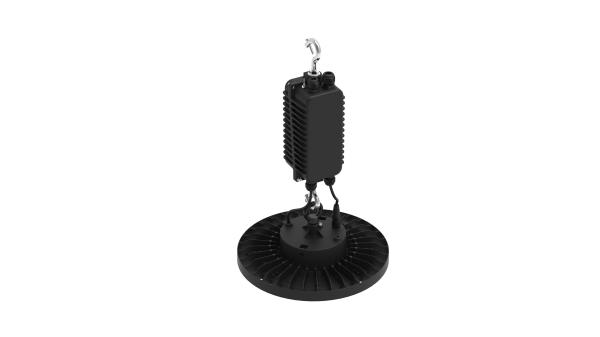

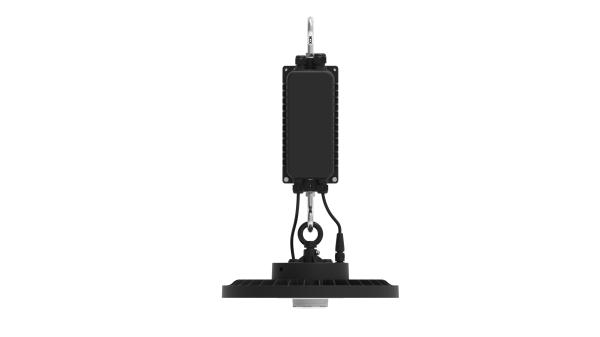

This is a unique design emergency UFO high bay light, its emergency pack is external, designed for the high bay luminaires with integrated LEDs. It is suspended with a luminaire to provide a back-up supply in the event of the power cut. This emergency pack requires a permanent live un-switched supply to maintain the battery charge. In the event of the power cut, the battery will supply the integrated LEDs at rated output. This emergency pack, its installation is very simple, only need to plug in a 4-pin cable, then it is done, greatly reducing the number of connection lines, so that the entire emergency high bay light looks clean and tidy. UFO LED High Bays have a sleek, robust design that meets a variety of application needs, such as warehouses, factory, supermarkets, retail stores, gyms and garages and many other applications.

Wattage selectable UFO high bay data sheet.pdf

Features

●15W/20W/30W selectable power for emergency version

●For LED modules with a wide voltage 30-150VDC

●Tow gears for adjustingmaximum output voltage:60V/150V

●Equipped with IP65 certified water-proof connector

●1.5 hours or 2 hours or 3 hours rated duration

●Battery LiFePO4 12.8V 6Ah

●Easy wiring for UFO high bay light

●Suitable for wet locations, IP65 rated

●Operation Condition temp:-0°C-45°C

●Plug and Play PIR or microwave sensor

●Options for DALI or 1-10V dimming

Specification

Model Power Light efficiency Luminous Flux Input Voltage Dimension IP code Warranty
KS-UFO-HBD-N100W 100W ≥150lm/w 15000LM AC100-240V Ø280*H132 mm IP65 5 year
KS-UFO-HBD-N150W 150W ≥150lm/w 22500LM AC100-240V Ø340*H140.2 mm IP65 5 year
KS-UFO-HBD-N200W 200W ≥150lm/w 30000LM AC100-240V Ø400*H145.2 mm IP65 5 year

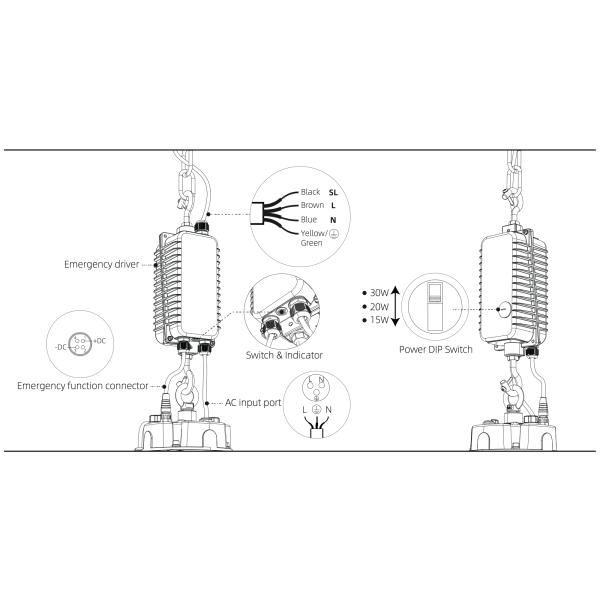

Wiring
