Corrosion Resistant Cemented Carbide Cold / Hot Forging Die
Corrosion Resistant Cemented Carbide Cold / Hot Forging Die
Corrosion Resistant Cemented Carbide Cold / Hot Forging Die
Corrosion Resistant Cemented Carbide Cold / Hot Forging Die
Corrosion Resistant Cemented Carbide Cold / Hot Forging Die
Corrosion Resistant Cemented Carbide Cold / Hot Forging Die
Corrosion Resistant Cemented Carbide Cold / Hot Forging Die
Corrosion Resistant Cemented Carbide Cold / Hot Forging Die
Specifications
Brand Name :
Betalent
MOQ :
1PC
Payment Terms :
T/T
Delivery Time :
5-8 working days
Place of Origin :
Xiamen，China
Description

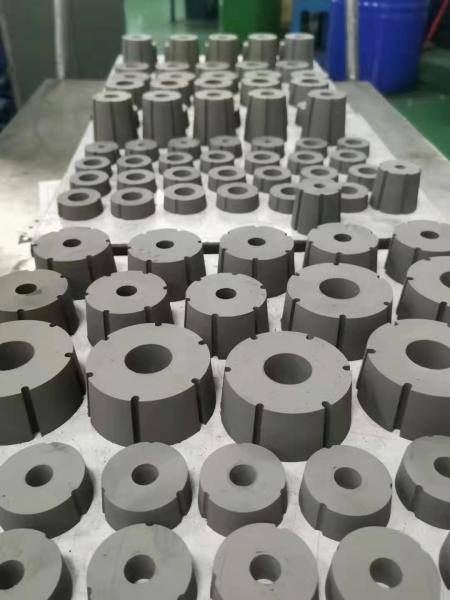

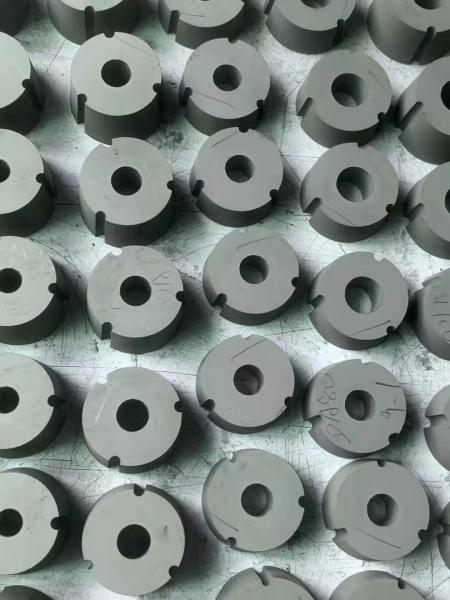

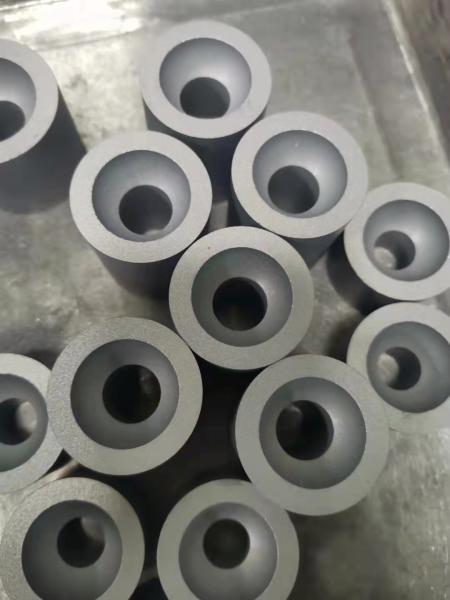

Carbide Die, Cold Forging Die, Hot Forging Die

Carbide or named cemented carbide is a very good material for making dies or die cores because of the very high hardness, good roughness and super corrosion resistance. And the very hard cemented carbide can be precised machined to mirror polishing surface, which is very important for die core.

We have wide carbide grades for options for different application of heading dies.

Carbide die grade table
Grade Co% Grain Size(um) Density (g/cm) Hardness(HRA) TRS N/mm2 Impact force (Kgf-m/cm²) Application
BH35 23 2-6 13.2 83.8 2550 0.92 Hot heading
BT05 12 2.0-3.0 14.31 88.2 3400 0.7 Drawing, extruding die of header dies
BT06 14 2.0-3.0 14.12 87.2 3200 0.76
BA90 24 2.0-6.0 13.22 82.8 2700 0.9 Big head screw die
BS6 18 3.0-6.0 13.7 85.8 2740 0.78 Stainless steel screw die
BS7 20 2.0-6.0 13.4 85 2640 0.8
BT07 16 1.0 13.95 88.5 3600 0.8 Small diameter bolt die,lock core die
BA65 18 2.0-6.0 13.73 85 3000 0.8

And carbide grades options for metallurgy options

Grade Co% Grain Size(um) Density (g/cm) Hardness(HRA) TRS N/mm2 Impact force (Kgf-m/cm²) Application
BT80 20 3.0-6.0 13.58 84 2740 0.85 Impact resistant forging die
BT90 22 3.0-6.0 13.39 82.5 2350 0.9
BT95 25 6.0-9.0 13.1 81.5 2150 0.96
BH60 14 2.0-3.0 13.95 84.5 2640 0.76 Hot forging die
BH70 16 6.0-9.0 13.58 83 2350 0.82
BTF16R 8Ni 0.8-1.3 14.8 90.9 2900 1.14 Food industry

And good carbide grades for drill point dies

Grade Density (g/cm) Hardness(HRA) KIC Mpa*m1/2
BQ-X 13.58 84.5 26
CQ-X 13.35 83.5 28
CT-X 13.06 82.5 31

Gradient carbide grades for higher quality heading dies.

Grade Co% Grain Size(um) Density (g/cm) Hardness(HRA) KIC Mpa*m1/2 Application
TH 10 2-3 14.4 88.2 21 Screw die, nuts die,high deformation rate fastener dies.
AD 13 2-3 14.12 87.1 21
ST 15 3-6 13.86 86 25 Stainless steel heading dies in fastener die
BQ2 20 3-6 13.45 84.8 27
BQ 20 3-6 13.45 84 27 Cold forging die
CQ 20 6-9 13.58 83.2 30 High impact forging die
CT 22 6-9 13.38 82.2 30

Cemented carbide die blank production process :

https://www.youtube.com/watch?v=UmNb2ThyhL8&t=8s
