No Coating 3mm 6mm Tungsten Carbide End Mill For Optical Lens
No Coating 3mm 6mm Tungsten Carbide End Mill For Optical Lens
No Coating 3mm 6mm Tungsten Carbide End Mill For Optical Lens
No Coating 3mm 6mm Tungsten Carbide End Mill For Optical Lens
No Coating 3mm 6mm Tungsten Carbide End Mill For Optical Lens
No Coating 3mm 6mm Tungsten Carbide End Mill For Optical Lens
No Coating 3mm 6mm Tungsten Carbide End Mill For Optical Lens
No Coating 3mm 6mm Tungsten Carbide End Mill For Optical Lens
Specifications
Brand Name :
Betalent
Model Number :
End mill for optical industry
Place of Origin :
China
MOQ :
10
Price :
2USD to 200USD per piece
Payment Terms :
T/T, Western Union
Supply Ability :
1,000,000pcs per month
Delivery Time :
5-8 working days
Packaging Details :
Plastic tube, then carton.
Function :
Plate cutting, profile milling, screw hole drilling
Material :
Tungsten carbide
Workpiece :
PC, AC lens, sunglasses lens with coating.
Coating :
No coating
Diameter :
3mm, 6 mm or customized
Flute :
Single flute or 3 flutes
Processing type :
Cutting, screw hole drilling, or profile milling
Transport :
Express,Air
Description

Carbide end mill for optical lens, end mill for optical industry, Sunglasses lens milling cutter

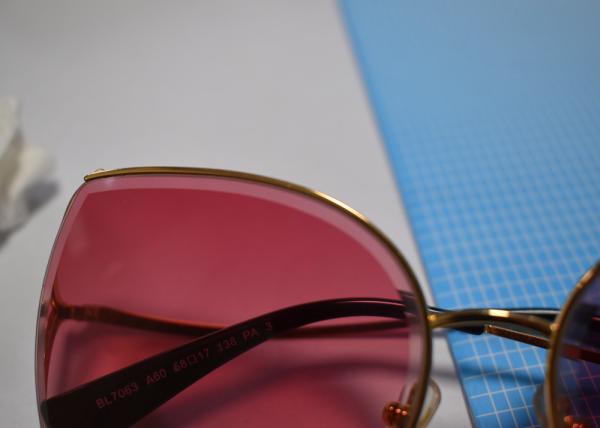

Carbide end mill for optical, for optical lens machining, to cut and mill the profile of lens to match the rims and make the shape of the the lens to the designed aesthetic effect.

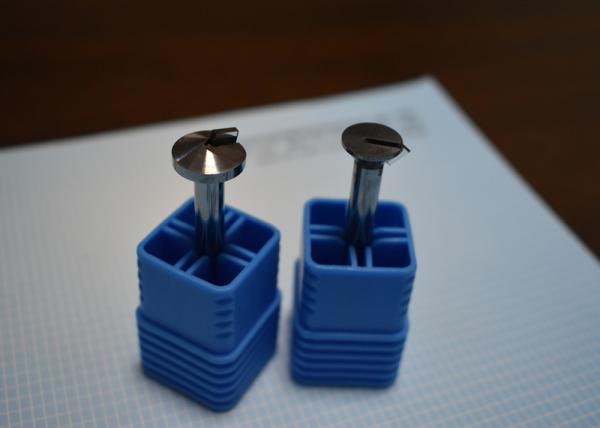

Betalent carbide specially develops a series of carbide end mills for machining the PC lens, AC lens and sunglasses lens with coating. The function of this series carbide end mills including the single flute end mill for screw hole drilling and milling, the R or V shapes end mill for lens frame milling, the multifunctional milling cutter integrating with screw hole machining, plate cutting, and different frame shapes machining.

Advantage: High precision with tolerance 1micron, fine mirror polishing milling surface without burr, which is very important for transparent lens or sunglasses lens with coating. Betalent accepts the customization for your special lens machining, you just need to give us the screw size, or the rim size and shape, we can design the proper carbide cutting tools for you. And there are several CNC machines for lens machining, which can be applied to test and adjust the new end mill performance before shipping, which can save lots of time ship and back to adjust the design, most customers can get a satisfiedtool they want at the first time they receive the sample.

Common specifications.

Cutting Dia. (mm) Specification Flute Function Tool life
3

D3.0*38-D1.5*5.5H-1F-45

 1 Lens cutting 8,000-10,000pcs
3

D3.0*38-D1.5*5H-1F

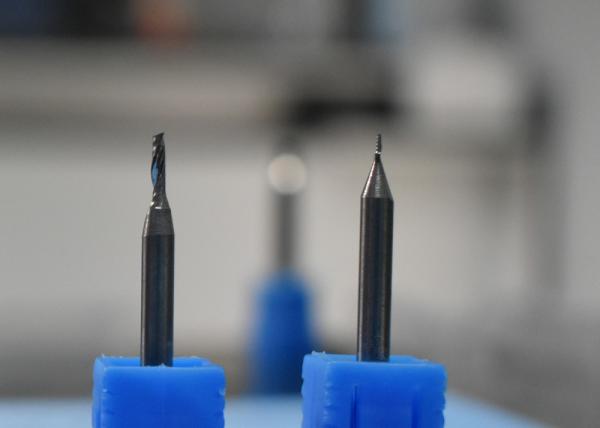

 1 Single flute flat end mill for lens screw hole drilling, plate cutting 8,000-10,000pcs
3 D3.0*38-D2*5H-D1.2*3.5H-1F 1 Single flute double-helical flat end mill for lens screw hole drilling, plate cutting 5,000-8,000pcs
6

D6*45-D3.4*R2-1F

 1 Cutting end mill for optical industry, R shape lens profile milling cutter 5,000-8,000pcs
6

D6*45-D2.7*R2-1F

 1 Plate cutting and R shape lens profile end mill 5,000-8,000pcs
6 D6*45-D2.7*45°*R1.2*45°-1F 1 Plate cutting and R shape lens profile end mill 5,000-8,000pcs
6

D6*45-D3*50°*70°-1F

 1 Plate cutting and V shape lens profile end mill 10,000-12,000pcs
6

D6*45-D3*55°*55°0.4*45°-1F

 1 Plate cutting and R shape with chamfer lens profile end mill 5,000-8,000pcs
6

D6*45-D3.8*R2*0.5/0.6*0.8-1F

 Recess lens profile end mill 5,000-8,000pcs
6 D6*45-D3.8*0.5*0.75*45°-1F 1 Reversed T shape lens profile milling 5,000-8,000pcs
6 D6*50-D3.4*R2-3F-D2*5H 3 Multifunction lens profile and cutting end mill 5,000-8,000pcs
6

D6*35-150°*6H-1F

 1 Diamond chamfering end mill, chamfer milling cutter 5,000-8,000pcs
6

D6*35-150°*6H-1F

 1 Diamond R shape profile end mill, Diamond end mill for the optical industry. 5,000-8,000pcs
