Product Application

The Beer Bottling Line adopts the advanced international technology .The design is scientific and reasonable ,appearance is beautiful ,operation and maintenance are convenient ,and it is with high degree of automatization. It is the good machine for choosing by the drinking filling factory.

Washing heads.

Rotatory bottle-rinsing machine has the functions of not opening the valve and rinsing without bottle, which is working from bottle entrance,bottle transportation,bottle clipping,bottle turning around with synchronously rinsing inside of the bottle to water-dropping and exit have the functions of not opening the valve and rinsing without bottles.

Filling heads.

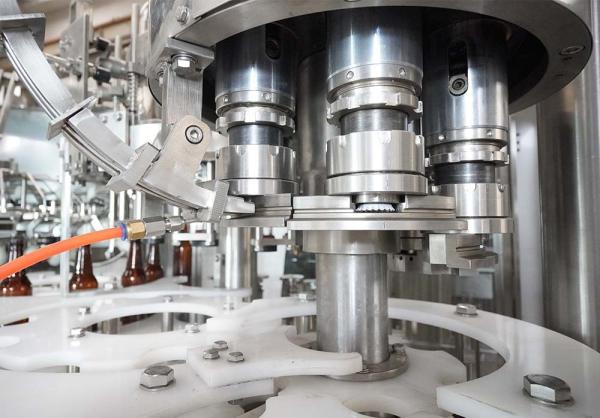

Capping heads.

Adopting the way of filling by holding the necks of the bottle, plus the function of pre-cover of the centralizing cover with high precise centralization,which ensure the right seating of mouth of the bottle and filling valve,with low liquid loss.

All 304/316 stainless steel construction

No bottle no capping

Flat Conveyor.

Energy saving. High efficient. Adapt to customer factory layout
Special lubrication system, keep products clean, health, safety
Extended service life
Electric eyes design keep whole line running safety and quickly
Overload protection mechanism to effectively ensure the safety of the machine

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

RO water treatment system.

.Stainless steel high pressure film shell

•All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system

•Online type pressure auto self-protection device

•Online type electricity indicator (with stable compensation)

•System safe protecting and alarm system

Drink Mixing Machine.

1. suitable beverage types: Cola and lemon.
2. mixing ratio range: 3:1 - 6:1
3. CO2 content: 4 times
4. volume: CO2 consumption of about 4 M3/h
5. CO2 supply pressure: 0.8-1 Mpa
6. CO2 Purity: 99.9%
7. consumption of ethylene glycol solution: water=30M3/h
8. ethylene glycol solution pressure: 1.0Mpa
9. ethylene glycol solution inlet temperature: -2 C.

1. High quality print at speeds for a range of applications
2. Small Size wtih Air cooling, no water chiller.
3.Easy to adjust focus.
4.low operation cost (Low power consumption).
5.Maintenance free without routine replacement of consumables.
6.Easy to use by unskilled operator.

Automatic Sleeve label machine

It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is, four-wheel driving, self-centering and balanced pressure of four wheels. It can achieve the good effect of transmission of labels smoothly, stably and rapidly.

PE film packaging machine

It adopts the photoelectric sensor to detect online, gather signals which are controlled by PLC, and adopts piston as executable element, to realize product conveying, combination, film wrapping, cutting, heat& shrink, cool and finally get the finished product.

Shower Cooling Machine.

1/Mainly for cooling and sterilization
2/The main parts of the machine are made of stainless steel, the top is designed to be openable for easy maintenance and observation
3/Nozzles are manufactured using U.S. technology and spray water evenly
4/Conveyor belt adopts Rexnor technology, flat surface with small wear
5/Smooth and reliable operation with low energy consumption
