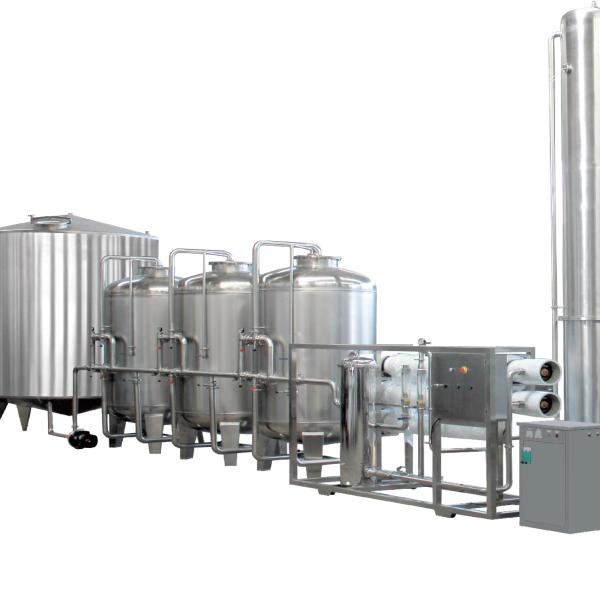

SUS304/316L 1-10T Per Hour Mini Industrial RO Pure Water Treatment System
SUS304/316L 1-10T Per Hour Mini Industrial RO Pure Water Treatment System
SUS304/316L 1-10T Per Hour Mini Industrial RO Pure Water Treatment System
SUS304/316L 1-10T Per Hour Mini Industrial RO Pure Water Treatment System
SUS304/316L 1-10T Per Hour Mini Industrial RO Pure Water Treatment System
SUS304/316L 1-10T Per Hour Mini Industrial RO Pure Water Treatment System
SUS304/316L 1-10T Per Hour Mini Industrial RO Pure Water Treatment System
SUS304/316L 1-10T Per Hour Mini Industrial RO Pure Water Treatment System
SUS304/316L 1-10T Per Hour Mini Industrial RO Pure Water Treatment System
SUS304/316L 1-10T Per Hour Mini Industrial RO Pure Water Treatment System
SUS304/316L 1-10T Per Hour Mini Industrial RO Pure Water Treatment System
SUS304/316L 1-10T Per Hour Mini Industrial RO Pure Water Treatment System
Specifications
Brand Name :
Beierde
Certification :
CE
Place of Origin :
Jiangsu, China
MOQ :
1set
Price :
$6,000.00/sets >=1 sets
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10 Set/Sets per Month
Delivery Time :
45-60Days
Packaging Details :
in wooden case
Condition :
New
Applicable Industries :
Manufacturing Plant, Food & Beverage Factory
Showroom Location :
Egypt, Kenya, South Africa, Nigeria, Malaysia, Australia
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
Gearbox, Pump, Gear, Bearing, Motor, PLC
Weight :
300kgs, 5000 kg
Size :
1500*800*600
Power :
3kw
Warranty :
1 Year
Productivity :
5000L/Hour
Weight (KG) :
3000 kg
Dimension(L*W*H) :
15000*2500*2900mm
After-sales Service Provided :
Engineers available to service machinery overseas
Capacity :
1-10 tons
Water source :
Tap water, underground water
Product name :
water treatment
Function :
water purify
Advantage :
high effiency
Processing :
Pre-treatment+RO Desaliantion
Port :
Shanghai
Description

Mini Industrial RO Water Treatment System Purification Plant with 1500*800*600 Dimension

Design Capacity

A,System Inflow Water Characteristic

Raw water:River water ,mountain water etc. Water temperature : Ambient temperature TDS ≤400μS/cm

B , Capacity :2 m3/h (25℃)C ,Water quality:salt removing rate≥97%

SUS304/316L 1-10T Per Hour Mini Industrial RO Pure Water Treatment SystemSUS304/316L 1-10T Per Hour Mini Industrial RO Pure Water Treatment System

Brief Introduction

System operating time : 8-12hour one shift. Power supply: 380V/3ph/50HZ or customized Water supply mode:Continuous water supply

Operating:PLC control, Related equipment interlocking protection.

Product Overview

Product Description
1. We can design and produce the water treatment system according to customer’s raw water quality report or customer requirement with World health organization living instant-drinking water standard.
2.All the valves, pipeline will be with stainless steel SUS304 with compact structure
3. All the machine will be PLC controlled, can be operated automatically, and also have installed with conductivity meter
monitor, pressure gauge and flow meter. All the parameter in the machine can be monitored easily.

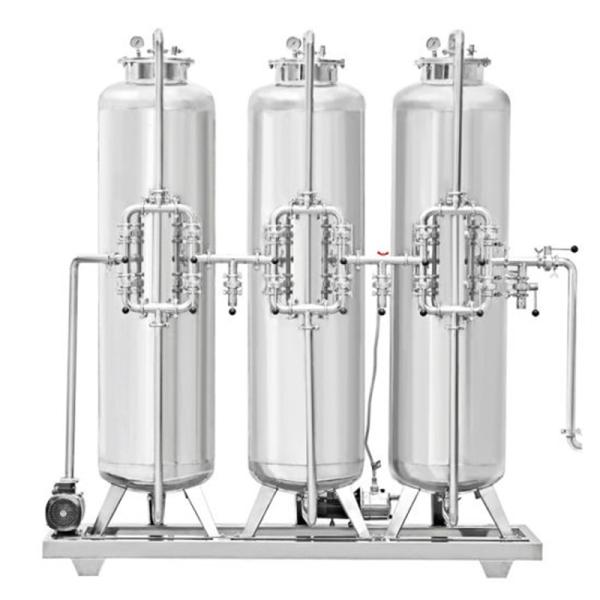

4. With the high pressure pump, the raw water will be pumped into the quartz sand filter, passing through the quartz sand in the filter, any particle more than 20 um will be filtered, such as sediment, manganese, rust, colloid material, mechanical impurities, suspended solid,etc.
5. And then the water will pass through the active carbon filter, which will adsorb the smell and chemical residualin the
water;
6. With the third step of sodium filter, the heavy metal content in the water will be reduced, which will result the water
more health for drinking;
7. With the above three pre-treatment, the water is more clean than used to.But still not arrive the best condition. During
the whole process, one of the major process is reverse osmosis with special membrane, to protect the membrane in the reverse
osmosis more better, we have to add the precise filter, which is used for cleaning the final big volume substance in water.
8. After the above 4 treatment, the water will be pumped into reverse osmosis device, and then about 70% of the raw water will come to be pure water, others will be waste water and then drain out of the water treatment system.
9.The membrane in the reverse osmosis device will be with 0.001 micron pore size, after this process, 99.2% of the heavy metalion,cancerogen, etc in water will be absolutely removed.
PRODUCT SPECIFICATIONS
RO Plant
Control
Automatic
Voltage
AC 220V/380V
Quartz Filter
300*1600mm
Quartz Weight
60kg
Activated Carbon Filter
300*1600mm
Activated Carbon
60kg
Membrane Brand
Vontron
Precision Filter
20'' Blue Housing
Raw Water Pump
CHL1-30
High Press Pump
CDL2-9
Inhibitor System
No
Machine Size(L*W*H)
800*820*1500mm
FAQ
Q1.How can I know your machine has good quality?
A1:We will send the video of testing the machine working condition for you before delivery,so you can send us your bottle samples
for a trial. We will test machine well for you.
Q2:What's your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with 12months guarantee and supply life-long technical support.
Q3: When can I get my machine after I paid?
A3: The delivery time is based on the exact machine you confirmed,and the bottle sample and caps should confirm by you.
Q4: How can I install my machine when it arrives?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.
Q5: How about the spare parts?
A5: After we deal down all the things, we will offer you a spare parts list for your reference,some spare parts for free,some willcharge you the cost price.
Shipping
SUS304/316L 1-10T Per Hour Mini Industrial RO Pure Water Treatment System
SUS304/316L 1-10T Per Hour Mini Industrial RO Pure Water Treatment System
Customer Photos
SUS304/316L 1-10T Per Hour Mini Industrial RO Pure Water Treatment System
SUS304/316L 1-10T Per Hour Mini Industrial RO Pure Water Treatment System
SUS304/316L 1-10T Per Hour Mini Industrial RO Pure Water Treatment System
Our Advantages
SUS304/316L 1-10T Per Hour Mini Industrial RO Pure Water Treatment System
SUS304/316L 1-10T Per Hour Mini Industrial RO Pure Water Treatment System
SUS304/316L 1-10T Per Hour Mini Industrial RO Pure Water Treatment System
