5 Gallon Barreled Water Filling Machine Line for Barrel Water

Feature

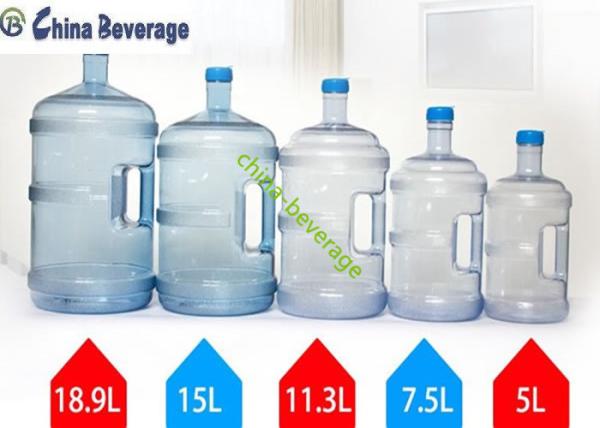

The machine is used for 3 gallon & 5 gallon water filling, which is composed of washer, filling and capper.
304 stainless steel insert type filling nozzle, two time high precision filling, filling volume adjustable.
Water pump: 304 stainless steel pump. Three washing pumps and one filling pumps.
Mitsubishi PLC controlling system, all full-automatic working, Schneider & Omron brand other electric parts With AIRTAC brand air cylinder,

F. R. L. Combination and Electromagnetism valve for air cylinder.
Machine frame and body: All 304 Stainless Steel, combine with clear fiber glass windows.

Description

Cap Decapper
This model automatic decapper is special equipment for 5-gallon retrieving barrel. It does not damage caps.
This machine adopts computer control and its capacity can be adjusted. Cap pulling organism from AIRTAC adopt Pneumatic adjustment, which solves the problems of tolerance of barrel height and tolerance of barrel's mouth, and Increases cap pulling success greatly. 304 stainless machine frame and machine body.

Outer Brusher

Function: Clean the external of 5 gallon bottles with brush and water
1. Rotary style to wash the bottle body.
2. Material of machine frame and body: All 304 Stainless Steel.
3. All 304 stainless steel pipeline, valve and connector, fine Polish, no death corner
4. Linear washing style with ø 350brush 1PC ø 200 brush 3PCS 300*3 brush 20PCS
5. Water pump: With 304 stainless steel pump
6. Washing tank: Size 500*300*600*1.2, 304 stainless steel
7. No bottles, no washing

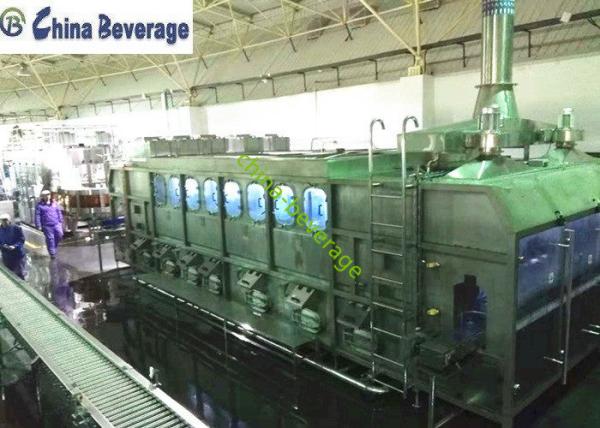

5 gallon filling machine

1.QGF series 5 gllaon jar filling machine integrates rinsing ,filling and capping into one machine.
2. The whole body is made of excellent Stainless Steel with anti-corrosion ,meeting the demands of food hygiene .It has the characters of full automatic, high efficiency and stable working station.
3.The washing process includes the alkali liquid inside and outside washing by dirty remover, inside and outside washing by disinfectant and inside and outside washing by sterile water. The alkali and sterile water can be used circularly.
4. This QGF Series Bottle Filling Line is the ideal bottle filling of pure water, mineral water and distilled water of 5 Gallon and 3 Gallon jar.

Technical parameter

Electrical configuration

Working process

Empty bottle conveyor belt→Cap decapper→Brush external bottle washer→
Automatic bottle loading system→Bottle rinsing filling capping machine→Filled bottle conveyor belt→Lamp checker→Manual labeling machine→Heat shrink machine→Stock room
