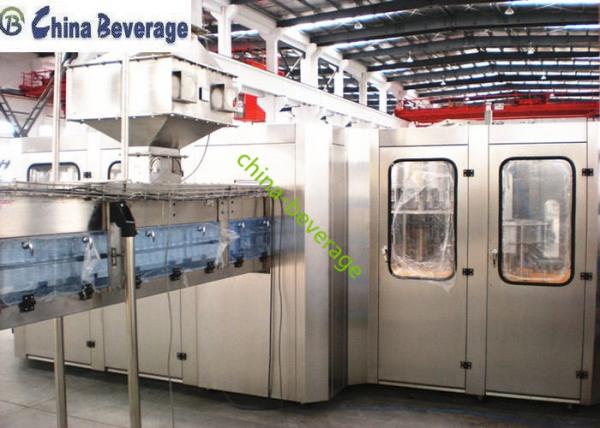

Auto Pet Bottle CSD Carbonated Soft Drink Bottling Filling Machine

General Description

DXGF series bottling machine is special for carbonated soft drink, soda water, energy drinks filling, combined with bottle washing, filling and capping. It is innovated and designed in the requirement of carbonated drink technics, on the bases of introducing, digesting and absorbing advanced technology abroad. It is reasonable in structure, safe to operate and easy to maintain, which is an ideal choice for beverage producers.

Technical Parameters

Equipment Structure

1). Compact structured, good-looking, easy to operate and highly automated.
2). Air conveyor is directly linked with feed-in starwheels, making it easier to change bottles without screws and conveyor chains.
3). Bottles are transferred in the manner of clamping neck.Bottles can be changed through some replacement of steel clamps, which instead of adjusting the height of machine.
4). Rinser-clamp which special design is strong and endurable, no contact with bottle-mouth, to prevent pollution.
5). Highly effective spraying nozzles equipped on the rinser-clamp can rinse every side of inner bottle and save water.
6). Accessories which contact with material are all made of stainless steel, no dead angles and easy to clean up.
7). Bottling volume can be controlled by membrane adjusting valves to ensure accurate filling.
8). Valve on-off system is driven by hydraulic cylinder, which starts on bottle signals.
9). High-speed and highly accurate bottling valves ensure no loss of liquid at high speed.
10). Equipped with CIP clean-in-place pipeline.
11). Bottom splint which fixed in the feed-out starwheel goes down in the manner of screw.Bottles can be changed without adjustment of height of conveyor chain.
12). Capping heads are magnetic constant-torque equipped to ensure capping quality with no damage.
13). Highly effective cap sorting and feed in system is protective for feed in and cap absence.
14). Equipped with overload system to safeguard machine and operators.
15). Touch screen operated.

Model

FAQ
Q1: Do you have reference project?
A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.
And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
Contact our sales people you can get video of our reference running machine

Q2: Do you have agent and after-service stations?
A2: Yes, and you are welcome to join us.

Q3: Do you provide customized service
A3: We can design the machines according your requirements(materil, power, filling type, the kinds of the bottles, and so on), at the same time we will give you our professional suggestion, as you know, we have been in this industry for many years.

Q4: What's your guarantee or the warranty of the quality if we buy your machines?
A4: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q5: How long time for installation?
A5: According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
