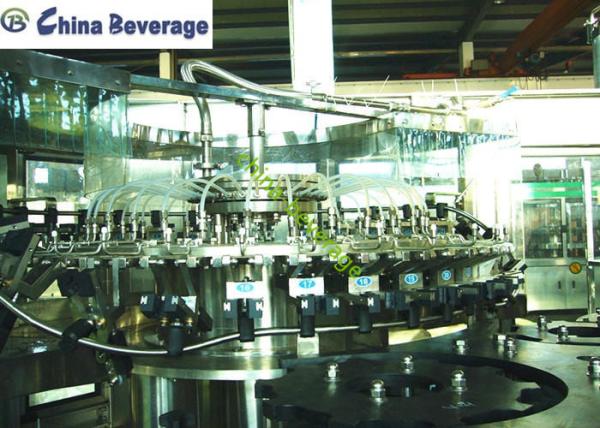

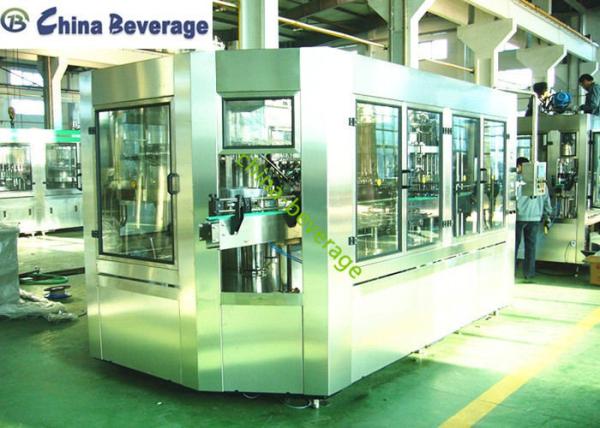

10000 BPH Glass Bottle Rinsing-Filling-Capping Machine (BRXGF 32-32-10)

BRXGF series galss bottle beverage filling machineare specially designed to fill non-carbonated drink such as water, flavor water, & wine in any shape 200ml to 2250ml glass bottle with screw caps, pressure caps or crown capping. Monobloc rinser filler capper design.

The complete line includes:

• Water treatment system;
• Beverage pretreatment system;
• Filling system;
• Packaging system such as Labeling machine, packing machine, palletizing system, etc.

Features of Juice Beverage Filling Packaging Machine:

The suspending bottle-neck cramping design assures whole production line more stable during the working process and it also avoids malfunctions caused by the different bottle thickness or height. The design also dramatically reduces the required quantities of interchange parts which make it more convenient to change different types of bottles on washing, filling and capping.

Advanced gravity filling technology is applied on the machine, which assure quick filling and high accuracy of liquid level control.

Magnetic torque is applied on bottle screw-capping. Constant screw capping power can be adjusted and therefore it will not hurt the bottles at all.

Human-machine interface touch-screen and PLC control system are adopted on the machine. Liquid level in the tank is controlled automatically. No bottles, no filling, no capping.

All parts connected with water are made of food grade stainless steel.

How to work ?
1. The bottle which has finished filling will enter the capping position via the driving wheel. The photoelectric detection of the detecting signal detects the bottle, send a message to the valve cover, the cylinder cap will open, the caps will be blew into the cover plate by compressed air.
2. Magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.

Flow chart :
Air conveyor system-->Washing,filling ,capping 3in1 machine-->Conveyor system-->Automatic sleeve labeling machine-->Automatic film shrink packing machine/Carton packing machine

If you have any interest in our machines, welcome feel free to contact with us.
