OEM Bottle Filling And Capping Machine / Rinsing Filling Capping Machine

Bottle Filling And Capping Machine Application

It can be applied for PET Bottled drinking water, CSD, Juice, Tea, Liquid milk, etc.

Capacity: 12000BPH-40000BPH.

Bottle Filling And Capping Machine Frame

The machine frame is a welded structure of high quality carbon steel with the surface anti-rust treated and coated. The machine frame is wrapped with stainless steel sheet (SUS304).
Driving system of the 3-in-1 Unit is positioned under the machine table. One main motor provides driving power via gear transmission.
The gear transmission system is an interleaved arrangement of steel gears and nylon gears.
The output shaft of the main motor is equipped overload protection to secure machine safety.

Bottle Filling And Capping Machine advantage

By combining functions of blowing, filling, and capping into one machine, it has the advantages of simpler operation, lighter packaging material, lower energy consumption, more reliable quality, higher efficiency, smaller floor space, fewer operation, adn less operation cost. The machine is equipped with safety door and alarm device, ensuring the safety of workers to the largest extend.
The warranty time is 2 years. During the time, if there is any problem, China-Beverage will solve it immediately when we get the notice, leaving no concerns to our customer.

Bottle Filling And Capping Machine Working process

►Blowing system

1. Adopt high techology of on-line ionic gas duster to clean the preform.
2. High-speed blow valve group with high-speed network control ensures blowing technic precision and unification.
3. Three-dimensional dynamic simulating design ensures exact and reliable cam transmission and mesh.
4. High-pressure blow valve group optimum design helps save air a lot.
5. Quick-change for mould.
6. Wearable aluminum alloy mould surface with special treatment of hardness.
7. Key points automatic lubrication.

► Filling system

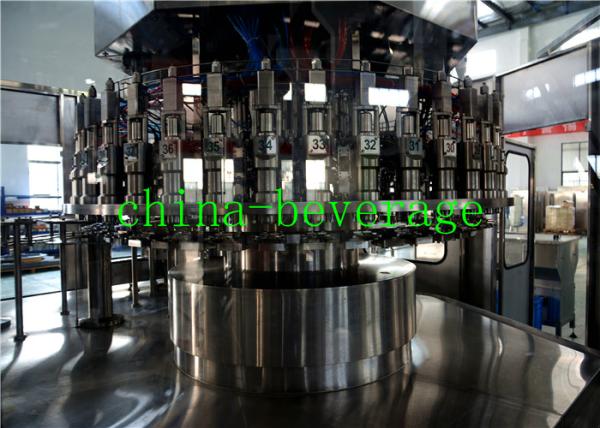

1). Filling machine adopts gravity filling way, the bottle mouth rises to open filling valve, then filling starts. When the material rises and plugs up to air returning hole, the filling stops; and then the bottle moves down, leaves from the filling valves, which means the whole filling process is finished.

2). High-speed and high-precision filling valve: 200ml/s, ± 2mm.

3). Servo drive system

4). With CIP cleaning function

5). The arrangement of steel gear and nylon gear is chiastic to reduce noise.

► Capping system

1). Full bottles will enter capping machine via transition starwheel. The anti-rotation knife of capper blocks bottle neck to keep bottle vertical and prevent rotation. Capping heads keep revolution and do rotation. Under effect of cam, the action of gripping cap, sleeve cap, screwing cap and discharging cap to finish the whole capping process. The finished bottles are deliveryed via bottle-out starwheel onto bottle-out conveyor, and then are sent out of the blowing-filling-capping combiblock system.

2). Magnetic constant torque, defective rate≤ 0.2%

3). Reversal caps ejecting device

4). No bottles, no feeding cap

Bottle Filling And Capping Machine Model
