Fully Automatic Drinking Water Filling Machine For PET Plastic Bottle

Drinking Water Filling Machine Overview

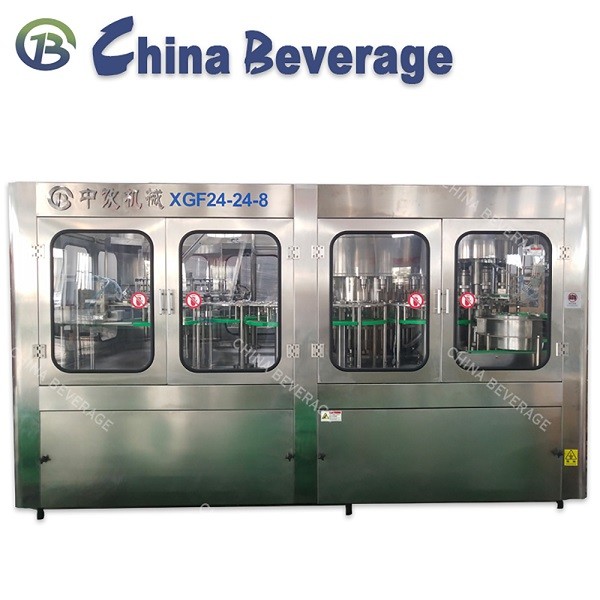

It is XGF 3-in-1 Drinking Water Filling Machine , which is mainly composed of bottle rinsing, filling and capping, and automatically composed in one body of the machine. It is used to produce bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.

Drinking Water Filling Machine Working process

►Washing machine

1. The rotary wheel is a fully SUS304 stainless steel welded structure.

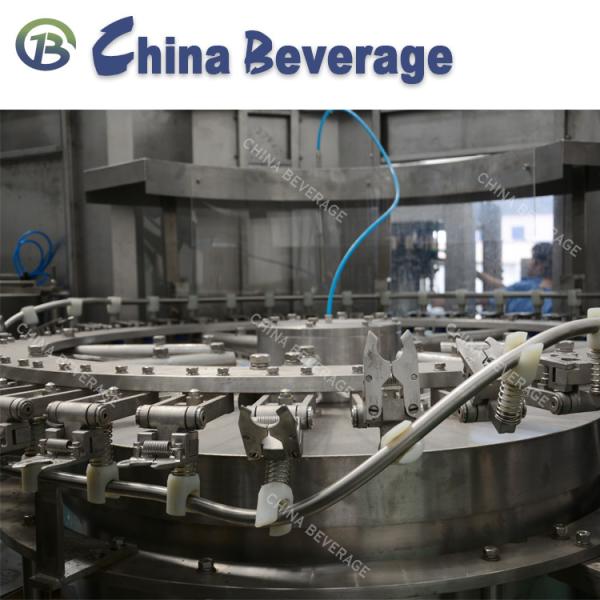

2. The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.

3. The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.

4. All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.

5. The rinser is driven by driving system positioned inside machine frame via gear transmission.

6. Transfer Starwheel

Made of stainless steel of superior quality.

Equipped with bottle jam protection device.

►Filling machine

1. Rotary wheel fully made of stainless steel SUS 304.

2. Gravity filling method.

3. Water filling valves are made of SUS316L.

4. Water filling valves are reasonably structured with accurate filling.

5. Water filling flow can reach 200ml/s.

6. Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.

7. Level of cylinder is controlled with float-ball.

8. Filler is driven through gears inside the machine frame.

9. Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck

►Capping machine

Capper is the machine with highest precision, influence very much with the stability and reliability of the filling monoblock. Our capper features as follows:

1. Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism.

2. Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute.

3. The capper is equipped with inlet bottle detection switch.

4. Centrifugal way of cap arranging is adopted to reduce damage of caps.

5. A cap inspecting system is applied to control on-off of elevator.
