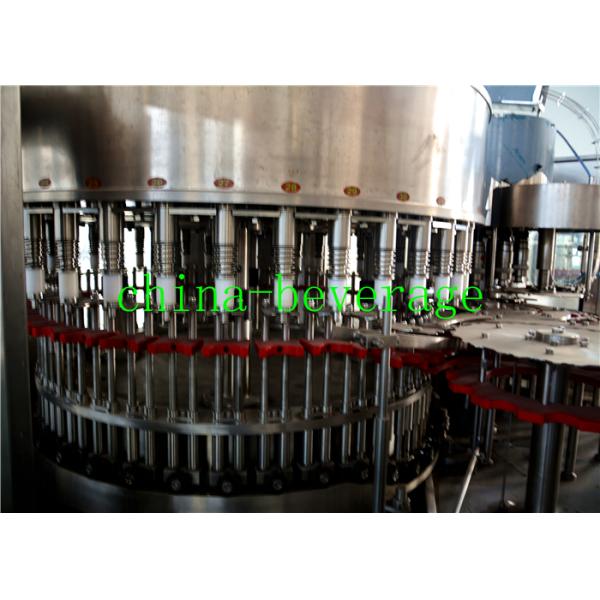

3 In 1 Drinking Water Filling Machine Rinsing , Filling And Capping Function​

Drinking Water Filling Machine Overview

The filling machine is mainly designed for filling hot temperature liquid into glass bottle; For example juice, tea drinks etc which are made of concentrate juice. The final filling temperature will be around 85-90 degree centigrade; Once the thermal meter in juice filling machine is lower than the temperature, juice will be return to sterilizing machine again through return system.
Glass bottle juice filling machine is different from plastic bottle. It will be optional and suggested to apply 4 in 1 filling machine, one more washing system is adopted to warm up the glass bottle in advance.

Drinking Water Filling Machine Technical Parameters

Working process

►Washing machine

1. The rotary wheel is a fully SUS304 stainless steel welded structure.

2. The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.

3. The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.

4. All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.

5. The rinser is driven by driving system positioned inside machine frame via gear transmission.

6. Transfer Starwheel

Made of stainless steel of superior quality.

Equipped with bottle jam protection device.

►Filling machine

1. Rotary wheel fully made of stainless steel SUS 304.

2. Gravity filling method.

3. Water filling valves are made of SUS316L.

4. Water filling valves are reasonably structured with accurate filling.

5. Water filling flow can reach 200ml/s.

6. Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.

7. Level of cylinder is controlled with float-ball.

8. Filler is driven through gears inside the machine frame.

9. Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck
