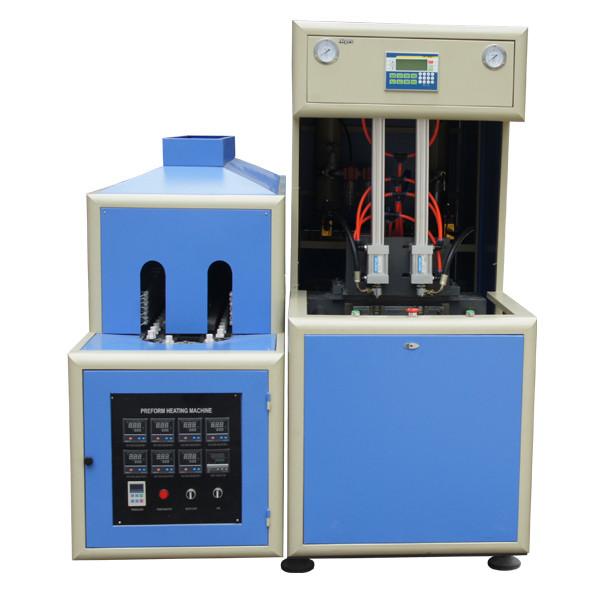

Multi-fnction 3 cavity Semi-automatic PET bottle blow molding machine 1600 - 1800BPH pcs/h
Multi-fnction 3 cavity Semi-automatic PET bottle blow molding machine 1600 - 1800BPH pcs/h
Multi-fnction 3 cavity Semi-automatic PET bottle blow molding machine 1600 - 1800BPH pcs/h
Multi-fnction 3 cavity Semi-automatic PET bottle blow molding machine 1600 - 1800BPH pcs/h
Specifications
Model Number :
SSW-B-3
Place of Origin :
China
Brand Name :
Sunswell
Certification :
CE, ISO, SGS, UL
MOQ :
1 set
Price :
Negotiable
Packaging Details :
Seaworthy Wooden Case
Delivery Time :
30 days
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per year
Description

Multi-fnction 3 cavity Semi-automatic PET bottle blow molding machine 1600 - 1800BPH pcs/h

Specifications:

Name

Item

Unit

SSW-B3

Blowing machine

Machine Dimension

mm

1700*900*2100

Machine Gross Weight

kg

900

Bottle Volume

ml

25-2500

Bottle Neck Diameter

mm

18-120

Body Diameter (max)

mm

125

Body Height (max)

mm

420

Number of Cavities

cavity

3

Production output

pcs/h

1600-1800BPH

Clamping Force

T

5.7 (56KN)

Mold Thickness (max)

mm

210

Mold Width (max)

mm

340

Space between Tie-bars

mm

100-200

Diameter of Tie-bars

mm

6-20

Mold stroke (max)

mm

150

Stretching stroke (max)

mm

400

Working pressure

Mpa

0.8-1.0Mpa

Blowing pressure

Mpa

2.0-3.0Mpa

Voltage/Power

V/W

220V/300W

Pre-heater

Dimension

mm

1890*710*1570

Weight

kg

330

Voltage/Power

V/KW

380V/14KW

Description:

SSW-B-3 semi-automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 50-2500ml. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.

Applications:

To make PET bottles for water, carbonated drinks, edible oil, juice and other liquid bottling.

Features

● Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.

● The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
● The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
● The machine can be operated in the step-by-step mode and the semi-auto mode.
● The machine is small with low investment, easy and safe to operate.
