Automatic Tea Filling Machine Stainless Steel For Sealing Green Tea / Black Tea
Automatic Tea Filling Machine Stainless Steel For Sealing Green Tea / Black Tea
Automatic Tea Filling Machine Stainless Steel For Sealing Green Tea / Black Tea
Automatic Tea Filling Machine Stainless Steel For Sealing Green Tea / Black Tea
Automatic Tea Filling Machine Stainless Steel For Sealing Green Tea / Black Tea
Automatic Tea Filling Machine Stainless Steel For Sealing Green Tea / Black Tea
Automatic Tea Filling Machine Stainless Steel For Sealing Green Tea / Black Tea
Automatic Tea Filling Machine Stainless Steel For Sealing Green Tea / Black Tea
Specifications
Model Number :
RCGF
Place of Origin :
China
Certification :
CE&ISO
MOQ :
1
Packaging Details :
Wooden packing
Delivery Time :
7 days
Payment Terms :
T/T, LC,WESTERN UNION
Supply Ability :
100 sets per year
Brand Name :
PET ALL
Function: :
filling and sealing
Filling material: :
tea powder
Machine material: :
stainless steel
Dimension(L*W*H): :
3500*900*1700mm
Power: :
5kw
Voltage: :
220V/380V
Description

Automatic Tea Filling Machine Stainless Steel For Sealing Green Tea / Black Tea

Specifications

This RCGF Wash-filling-capping 3-in-1unit: The automatic green tea filling machine / machinery / equipment is used in hot filling and sealing of green tea,black tea,wulong tea and fruit juice drink. This machine integrates washing,filling and capping together. The design is scientific and resonable. Its apperance is beautiful. Its operation and maintenance is convenient. The automation is high. It is good equipment for choosing hot drink filling machine.

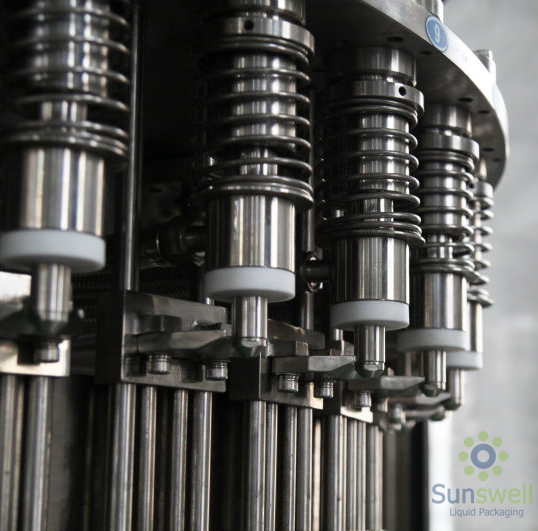

The machine adopts block bottle-neck hanging work state design and filling valve rise-drop design. It can meet the requirements of hot fillilng of below 95 degrees Celsius. It adopts man-machine interface touch screen,PLC,transducer ,etc.

The automatic green tea filling machine / machinery / equipment adopts hanging type conveying-bottle structure to make changing bottle model more convenient,faster and easier. The main machine adopts advanced PLC control technology. The key electric elements adopt international famous products.

Main Technical Parameters:

Model RCGF18-18-6 RCGF 24-24-8 RCGF 32-32-10 RCGF 40-40-12 RCGF 50-50-15
Production Capacity (500ml b/h) 4000-6000 6000-10000 10000-15000 15000-20000 20000-24000
Filling Precision ±2 mm (liquid level)
PET Bottle Specification (mm) bottle diameter:50-100mm, bottle height:150-310mm
Suitable Cap Shape plastic screw cap
Washing Pressure(Mpa) 0.2-0.25
Gas Consumption(m3/min) 0.1 0.4 0.5 0.5 0.6
Total Power(kw) 4.4 5.2 6.2 7.8 10
Total Weight(kg) 2800 4500 6000 7000 9500
Overall Dimension(mm) 2360*1830*2250 2900*2200*2250 3880*2200*2250 3700*3000*2350 4500*3500*2400

Automatic Tea Filling Machine Stainless Steel For Sealing Green Tea / Black Tea
