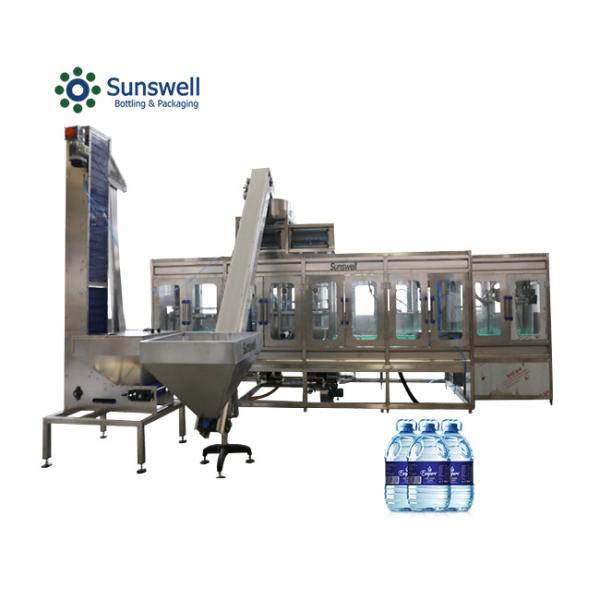

5L Automatic Water Bottle Filling Machines 10L Mineral Plant 400BPH 500BPH
5L Automatic Water Bottle Filling Machines 10L Mineral Plant 400BPH 500BPH
5L Automatic Water Bottle Filling Machines 10L Mineral Plant 400BPH 500BPH
5L Automatic Water Bottle Filling Machines 10L Mineral Plant 400BPH 500BPH
5L Automatic Water Bottle Filling Machines 10L Mineral Plant 400BPH 500BPH
5L Automatic Water Bottle Filling Machines 10L Mineral Plant 400BPH 500BPH
5L Automatic Water Bottle Filling Machines 10L Mineral Plant 400BPH 500BPH
5L Automatic Water Bottle Filling Machines 10L Mineral Plant 400BPH 500BPH
5L Automatic Water Bottle Filling Machines 10L Mineral Plant 400BPH 500BPH
5L Automatic Water Bottle Filling Machines 10L Mineral Plant 400BPH 500BPH
5L Automatic Water Bottle Filling Machines 10L Mineral Plant 400BPH 500BPH
5L Automatic Water Bottle Filling Machines 10L Mineral Plant 400BPH 500BPH
5L Automatic Water Bottle Filling Machines 10L Mineral Plant 400BPH 500BPH
5L Automatic Water Bottle Filling Machines 10L Mineral Plant 400BPH 500BPH
Specifications
Brand Name :
Sunswell
Model Number :
CGF4-4-1-1
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 25000 per Set
Payment Terms :
L/C, T/T
Supply Ability :
50 Set/Sets per Year
Delivery Time :
60 days
Packaging Details :
wood case & carton packaging
Condition :
New
Machinery Capacity :
400BPH, 500BPH, 300BPH
Packaging Type :
Bottles
Automatic Grade :
Automatic
Voltage :
400V 3Phase 50HZ,Customized
Weight :
1200 KG
Key Selling Points :
High-accuracy
Filling Accuracy :
99%
Core Components :
Motor, Pressure vessel, Pump, PLC, Gear, Bearing
Type :
Filling Machine
Applicable Industries :
Manufacturing Plant, Food & Beverage Factory
Application :
Beverage
Packaging Material :
Plastic
Driven Type :
Electric
Dimension(L*W*H) :
4500*1150*1850mm
Warranty :
1 Year
Filling Material :
Water
Warranty of core components :
1 Year
Description
Products Description

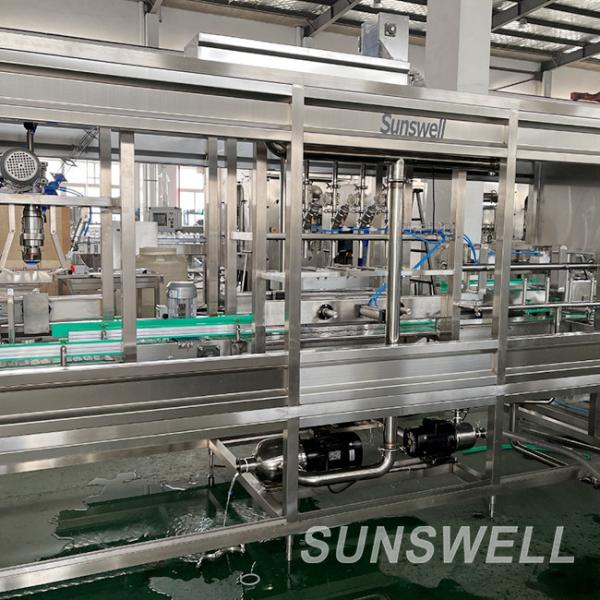

Linear 3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of non-carbonated energy drinks, juice, tea, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.
Main Features

Filler

1.The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ±2mm.
2.The filling valve material is SUS304.
3.The filling system has liquid level automatic control.
4.Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck, it starts to fill.
5.Bottle is conveying by the wheel in the filling part.

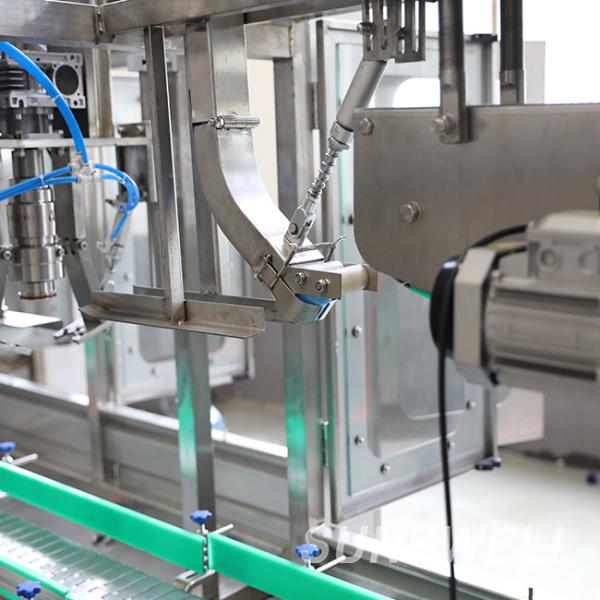

Capper

1.Sunswell import of advanced technology of screw capping, improve the stability and reliability of the screw capping machine.The magnetic torque is used for screw capping. the power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.
2.In the screw capping part. it installed photoelectrical control, when it has no cap, or the cap is bad, the machine will stop
automatically
Technical Parameters
Model: CGF4-4-1-1
Number of working positions: rinser 4, filler 4, capper 1+1
Rated capacity
Max 500BPH@12L
Air supply pressure
0.6-0.8 MPa
Rinsing water pressure
0.2-0.25 MPa
Way of filling
Pressure filling
Installed power
3 KW
Dimension
4500×1150×1850mm (L×W×H)
Machine weight
1200Kg
Company Profile
Maldives
Water Production Line Combiblock
(330/500/1500ml)
USA
Carbonated Water Filling Line
20000BPH
Syria
Carbonated Drink Filling Line
24 000 Cans Per Hour
Any more questions, please feel free to contact us !
Any more questions, please feel free to contact us !

Related Products
1. Complete Bottling Lines: Bottling, Labeling, Packaging & Processing
1) Water Treatment System
2) Bolw Molding Machine
3) Filling Machine
4) Labelling Machine
5) Packaging System
Blowing-filling-capping CombiBlock
2. Various liquid packaging
3. Different packaging forms
Any more questions, pls feel free to contact me !
FAQ
Q1: which city are you in? how can I get to your factory? Are you a trading company or factory?
A1: We are in Zhangjiagang city, two hours driving from Shanghai. We are factory. Manufacturing mainly beverage filling and packagingmachines. We offer turnkey solutions with more than 10 years experience.

Q2: Why is your prices higher than others?
A2: We offer high-end machines in our business. Welcome to our factory to have a visit. And you will see the difference.

Q3: What is your delivery time?
A3: Normally 30-60 working days depends one machines, water machines are faster, carbonated drink machines are slower.

Q4: How to install my machines when it arrives? How much the cost?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines If needed.Or you can arrange engineers to study in our factory. You are responsible for air tickets, accommodation and our engineer wage USD100/day/person.

Q5: How long time for installation?
A5: Subject to machines and the situation in your factory. If everything is ready, it will take about 10 days to 25 days.

Q6: How about the spare parts?
A6: We will send one year enough easy broken spare parts together with the machines for free, we suggest you buy more units tosave international courier such as DHL, it is really costly.

Q7: What is your guarantee?
A7: We have one year guarantee and life-long technical support. Our service also including machine maintence.

Q8: What is your payment term?
A8: 30%T/T in advance as down payment, rest should be paid before shipping. L/C is supported also.
