500ML Full Automatic 3 In1 Beverage Filling Machine Drinking Pure Water Production
500ML Full Automatic 3 In1 Beverage Filling Machine Drinking Pure Water Production
500ML Full Automatic 3 In1 Beverage Filling Machine Drinking Pure Water Production
500ML Full Automatic 3 In1 Beverage Filling Machine Drinking Pure Water Production
Specifications
Brand Name :
Sunswell
Model Number :
CGF40-40-10
Certification :
CE, ISO, SGS, UL
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per year
Delivery Time :
30 days
Packaging Details :
Seaworthy Wooden Case
Product name :
automatic water filling machine
Function :
3 in 1
Filling method :
Gravity filling
Applications :
mineral water...
filling heads :
40
Application :
Beverage
Description

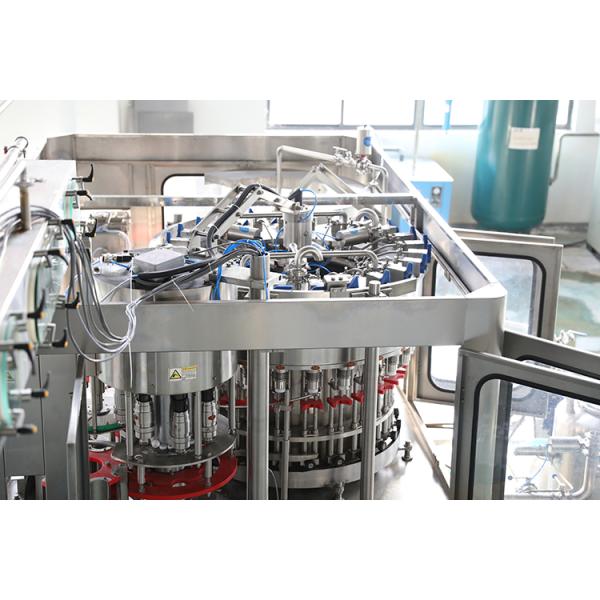

Sunswell 500ML Full Automatic 3 in1 Drinking Pure Water Production Line beverage Filling Machine


Applications:
PET bottles with all volumes and shapes for still water, pure water, RO water, mineral water, sparkling water, etc

Washing heads

<1>All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean
<2>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
<3> 304/316 stainless steel washing pump

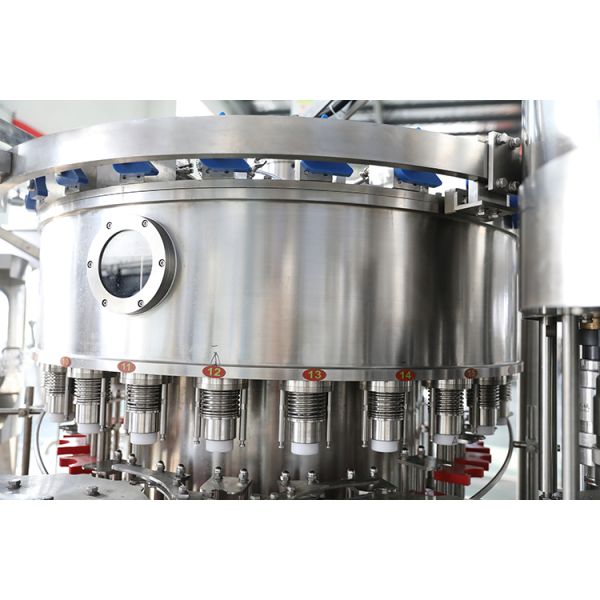

Filling heads

<1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump

Capping heads

<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
<2> All 304/316 stainless steel construction
<3> No bottle no capping
<4> Automatic stop when lack of bottle




Specifications:

Model

CGF40-40-10

Number of working positions

water rinser 40, filler 40, capper 10

Rated capacity

18,000BPH (500ml)

Filling method

Gravity filling

Applicable bottle

diameter 50 – 96mm, height 165 – 310mm

Air supply pressure

0.7 MPa

Air consumption

0.8M3/min

Rinsing water pressure

0.2-0.25 MPa

Rinsing water consumption

3 tons/hour

Main motor power

5.5Kw

Installed power

9Kw

Dimensions

4300×2930×2750mm (L×W×H)

Machine weight

7800Kg





















500ML Full Automatic 3 In1 Beverage Filling Machine Drinking Pure Water Production

500ML Full Automatic 3 In1 Beverage Filling Machine Drinking Pure Water Production
