Automatic Tray Heat Shrinkage Film Shrink Wrap Machine With High Speed
Automatic Tray Heat Shrinkage Film Shrink Wrap Machine With High Speed
Automatic Tray Heat Shrinkage Film Shrink Wrap Machine With High Speed
Automatic Tray Heat Shrinkage Film Shrink Wrap Machine With High Speed
Specifications
Brand Name :
Sunswell
Model Number :
MB-20
Certification :
CE, ISO, SGS
Place of Origin :
Zhangjiagang,China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per year
Delivery Time :
30 days
Packaging Details :
Export Standard Seaworthy Wooden Case
Type :
Shrink film machine
Condition :
New
Voltage :
Customized
Driven type :
Electric
Automatic grade :
Full Automatic
Warranty :
12 months
Packing material :
PVC POF PP PE
Usage :
Pack the product with shrinking film,shrink wrap machine
Product name :
Automatic PE Film Shrinking Wrapping Package Machine
Description

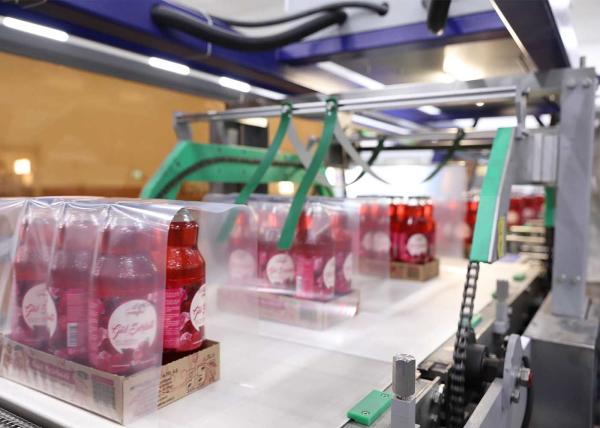

Automatic Tray Heat Shrinkage Film Wrap Packaging Machine With High Speed

Description:

Sunswell downstream packaging system widely used in beverage,beer,food,cosmetic and other industries.

Based on customer's different needs of bottles,cans,boxes,film bag etc,the different forms of package in secondary and packaging .according to the whole line each unit real-time operation dynamically balanced adjustment,thus it can effectively improve the whole line operation efficiency.

Applications:

  • Shrink film wrapping
  • Soft drink, liquor (beer, rice wine and alcohol, etc.)
  • Liquid food (edible oil, vinegar and soy sauce, etc.)
  • Daily commodities (detergent, shampoo and so on)

Main features

  1. Exterior is compact, excellent and frame is novel, Particular, repair is easy. Electron influence for film-feeding, is placidly, film-changing is quickly.
  2. Using isothermal sealing and cutting knife .The seal’s intensity is cooling sealing & cutting knife 3 times and the use life is above cooling sealing & cutting knife 80 times. Sealing &cutting time is 0.6s.
  3. Speed regulation of transport systems by frequency variation, the transmission action is precise and synchro.
  4. The shrinkage chamber uses centrifugal thermal air circulation system, configuration is logical, heat insulation heat preservation, thermostat precision is high and the packing effect is better.
  5. During the product forward conveying process. it can automatically group the product in to package, so as to save time and enhance packing efficiency
  6. The idea model of middle-speed heat-shrinking packager in the domestic market.

Automatic Tray Heat Shrinkage Film Shrink Wrap Machine With High Speed

Main parts

No.

Name

Brand

Region

Remarks

1

Pneumatic Cylinder

Chanto

Taiwan

2

Pneumatic Components

Airtac

Taiwan

3

PLC

Omron

Japan

4

Button

Tayee

China

5

Inverter

Schneider

France

6

Relay

Schneider

France

7

Contactor

Schneider

France

8

Solid Relay

Crydom

France

9

Teflon Belt

Kaiyao

China

Imported material

10

Reducer

Halei

China

11

Photoelectric Switch

Autonics

Korea

12

Proximity Switch

Autonics

Korea

13

Steel Sheet

Baosteel

China

Cold-rolled (1.5-2.5mm)

14

Chain Plate

Tuoxin

China

POM

Specifications:

Model

MB-20

Packing form

2×3, 3×4, 3×5, 4×5, 4×6 (According to bottles)

Work power

three-phase-five- line 380V/50~60Hz

Working pressure

0.6~0.8Mpa

Shrink chamber size

L×W×H=2400×650×450 (mm)

Speed

18 packs/min

Sealing & cutting temperature

190°C~230°C

Shrink temperature

200°C~280°C

Material

PE

Roll of film width

≤600mm

Roll of film thickness

0.06~0.12mm

Roll of film diameter

≤450mm

Work noise

≤65dB

Total power

35KW

Total weight

2500kg

Machine size

L×W×H=12000×1100×2100mm

Conveyer belt max width

541mm, Height of produce line (Adjustable range 150mm)

Automatic Tray Heat Shrinkage Film Shrink Wrap Machine With High Speed
