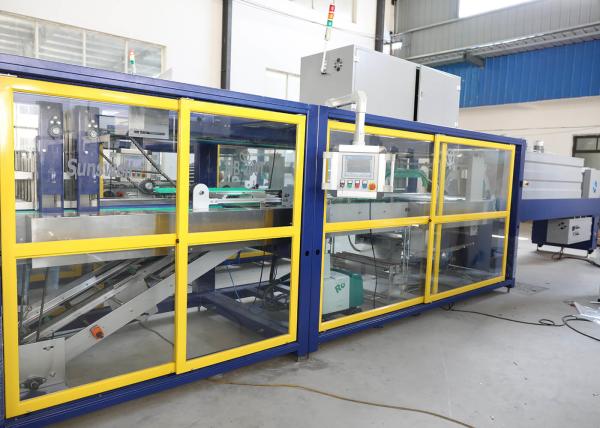

High Speed Linear Type Heat Shrink Film Over Wrap Packing Machine for Beverage and Drink Water Bottle Food Cans

1. General description

Available Range:

SSW series machine has been widely used in food, beverage, chemical and office industries. All kinds of liquid beverage bottles' group packing which does not need bottom tray. After packing, the products will become firmer and more good looking.

Characteristics:

1.This Shrink Wrapping Machine adopts imported world famous PLC automatic control. It has stable functions and precise control.

2.It has automatic functions like conveying materials, unscrambling, shrinking and cooling&design finalizing flow.

3.The film conveying adopts the famous brand transducer and three-layer heat insulation to save resourses.

4.It uses the enhanced cooling and design finalizing passage which can make product packing finalize the design more quickly and easy to be stored and transported

2.Details of each equipent

·Frequancy control,Secondary bottle transport device.

·The whole set which are push bottle,heat sealing cutting adopt pneumatic structure.

·Inductive switch control film length.

·Touch screen,PLC control system advanced reliability of the equipemtn function.

·Circular wind machine ,resuare well-proportioned temperature of the shrink furnace.

·Strong cooling system can reassure finalize the design quickly.

·Heat-fast Teflon transport net,transport steady,high strength and stand wear and tear.

·Frequancy conversion timing net transportation structure.

·The height of the conveyer belt can be made according to the user,adustable range±50mm

·Bottole transport machine can satisfy the direction of the user,it can prolong and shorten

·Pterygoid stainless iron heating system,durability.

·Satisfy the bear storage rack device of the short duration for the product,assure consecutive work for the production line.

Canada maintain: 5.7 inch touch screen, PLC control system.(can choose other brand)

·One set Taiwan Airtac pneumatic element

·Three sets Taiwan Taida thansducer

·Twelve pieces stainless and iron pterygoid heating pipe

·Teflon transportation net which are produced by Sino-America cooperation.

·Electrical machine by Shanghai and Beauty coperation ,warm transmission by Zhejiang Taili.

·Korea Ottonix photoelectric switch,proximity switch.

·We can make Heat sealing sword cast aluminium heat appliance specially,well proportioned temperature and long lived.

·Surface of the whole machine are plastic spraying,frame work adopt excellent carbon steel,the mainstay adopt stainless steel.

·The length of bottle transport machine:2600mm

·Packed with wooden case and winded film seperately.

3. Main performance features

l Compact & artistic shape. The frame is novel, unique.

l Electronic induction feeding film, action is balanced and quickly replacing film.

l Isothermal sealing cutter. The seal intensity is above cooling sealing cutter 3 times, the seal is even and the life is above cooling sealing cutter 80 times.

l Transport system with speed regulation by frequency variation, the transmission action is precise and synchro.

l The shrinkage chamber uses centrifugal thermal air circulation system, configuration is logical, heat insulation heat preservation, thermostat precision is high and the packing effect is better.

l Advanced control component in the world, Well-equipped.

4. Technical Specification
