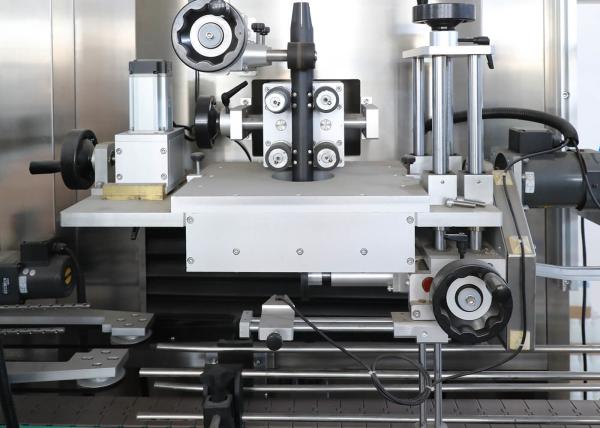

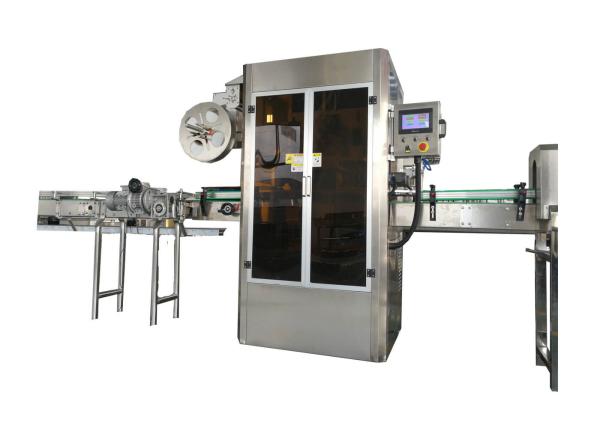

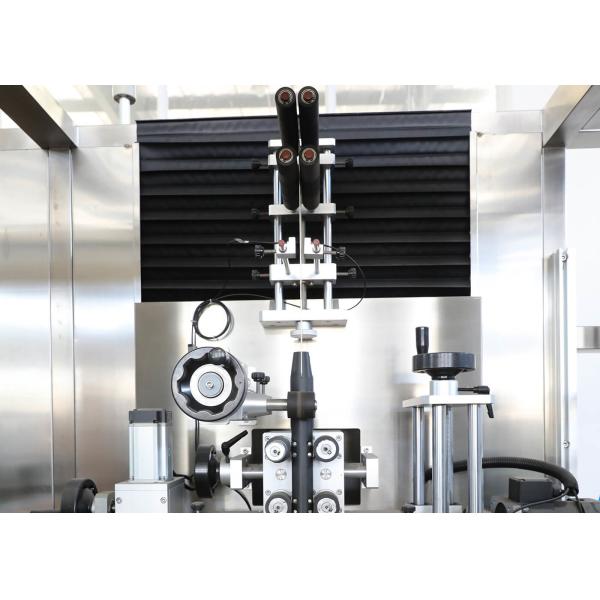

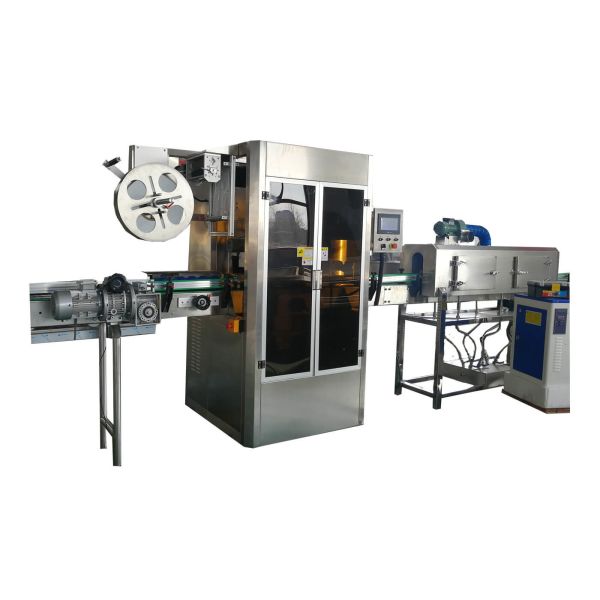

High Quality Full Automatic 250BPM Round Bottle Heat Shrink Sleeve Labeling Applicator Shrinking Labeler

Automatic Shrink Sleeve Applicator is suitable for label sleeving in the fields of drinking, health-care pproducts, cosmetics, washing articles for use, pharmaceuticals and petroleum and so on. Sunswell Series Shrinking Label Sleeving Machines are easy to control, to change bottles and labels smoothly, ande easy for cleaning and maintenance. This series machines also have a high degree of automation.

Features:

• Full stainless steel protective of main engine the machine is fully waterproof and stainless;
• Adjustable blade base: Unique cut off, double blade for long using life
• Positioning center guiding pole: stable label guiding and delivering;
• Screw rod of separate bottle: stable transportation of bottles;
• Label brushing set: more accuracy of label-casing precision;
• Label control sensor shelf: original creation tail surface and sensor are combined to improve the precision of cutting the material.
• Human touch screen: Auto Show cause of the malfunction, operating more humane
• Touch-screen: operation humanization

S-250 Label Sleever Technical Parameters:

• Size: 2100L*850W*2000H (mm)
• 2 meters conveyor belt include (motion and scraping belt are including)
• Gross weight: about 400KG
• Bottle diameter: 30－95mm(max)
• Bottle Height: 30-250mm
• Bottle type: round Bottle.
• Label length: 30~120 (mm)
• Label thickness: 0.03-0.13mm
• Paper pipe interior span: 5-10"
• Machine speed: 250BPM (subject to label length)
• Power: AC 3 phase, 380V
• Consumed power: 2.5KW

RSS-2000 Steam Shrinker Technical Parameters:

• Size: 1800L*400W*900-1600H (mm)
• Power: AC 3 phase, 380V
• Steam consumption: 10-20 KG/H
• Steam pressure: 0.15-0.4MPa
• Fan-power: 0.75KW

DZFZ-18KW Automatic Electric Steam Generator Technical Parameters:

1. Rating: 18KW

2. Power: 380V

3. Air supply: 0.4-0.7Mpa

4. Saturated steam temperature: 152°C

5. Rating quantity of steam generation: 3.8-22.8Kg/h

6. Water tank: 28L

7. Size: 630L*560W*1360H (mm)

Shrink sleeve PVC labeling Aluminum material machine for kinds of bottles.
