Low Noise Hot Melt Glue Square Bottle Labeling Machine For Bottling Packaging
Low Noise Hot Melt Glue Square Bottle Labeling Machine For Bottling Packaging
Low Noise Hot Melt Glue Square Bottle Labeling Machine For Bottling Packaging
Low Noise Hot Melt Glue Square Bottle Labeling Machine For Bottling Packaging
Low Noise Hot Melt Glue Square Bottle Labeling Machine For Bottling Packaging
Low Noise Hot Melt Glue Square Bottle Labeling Machine For Bottling Packaging
Low Noise Hot Melt Glue Square Bottle Labeling Machine For Bottling Packaging
Low Noise Hot Melt Glue Square Bottle Labeling Machine For Bottling Packaging
Specifications
Brand Name :
Sunswell
Model Number :
TB
Certification :
CE, SGS
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 sets/month
Delivery Time :
60 days after receiving down payment
Packaging Details :
Wooden case
Product name :
Hot Melt Glue Labeller
Voltage :
220V/380V/Customized
Automatic grade :
Full Automatic
Condition :
New
Driven type :
Electric
Type :
Labeling Machine
Packaging type :
Plastic
Application :
Food,Beverage
After-sales service provided :
Online support,Engineers available to service machinery overseas
Packaging material :
Wooden Case
Warranty :
1 Year
Function :
labeling
Material :
SUS304
Description

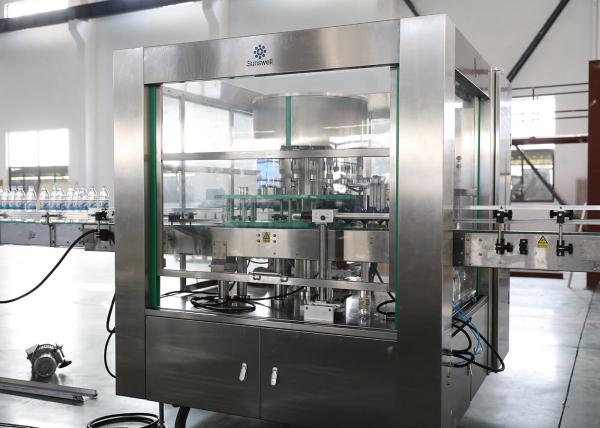

Fully Automatic Roll-feed OPP/BOPP Film Hot Melt Glue Labeling Machine for Bottling Packaging

Characteristics:

1. Adopt mature PLC control system technology, make the whole machine stable and high-speed

2. Can be suitable for square /round/oval flat bottles at the same time

3. Use touch screen control system, make operation simple, practical and efficient

4. Upgraded butterfly labeling station design, can be applied for conical bottle labeling

5. Screw adjust the suppression mechanism, high accuracy

6. Synchronization chain mechanism, to ensure smooth and precise calibration

7. Transparent sticker labeling without foam,adhesive sticker labeling without wrinkle

8. Widely used and mutil-function with high flexibility

9. Date/code printer is for optional

10. Tranparent label sensor is for optional

11. Can be customized according to your requirement

Composition:

  • Emergency switch

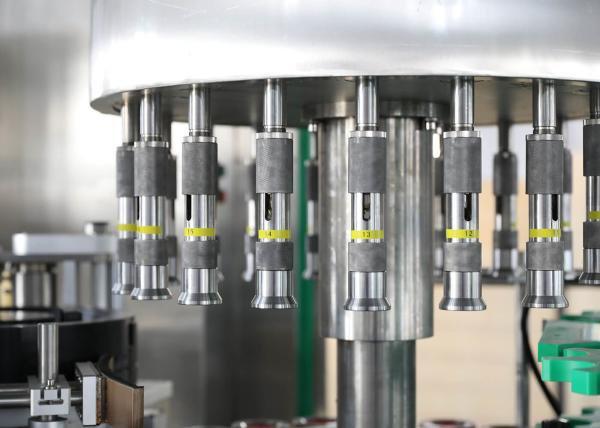

  • Main rotary wheel

  • Touch-screen

  • Main switch (power)

  • Electronic-controlled cabinet

  • Level

  • Air control

  • Label station support regelwerke

  • Rack

  • Infeed screw

  • Infeed starwheel

  • Label reels

  • Label station

  • Discharge starwheel

  • Comfort label institution

  • Glue supply system

  • Conveyor

Technical parameters:

Power supply Three-phase 380V 50 Hz 8000W
The total length of equipment 3000mm(conveyor length 3000mm or can be regulate base on your product lines)
Equipment width 2000mm
Conveyor speed 35m/min (the speed of the transmission lines can be adjusted according to actual production)
The method of speed adjustment uninterrupted - adjust rate
The largest Speed of labels feed maximum speed of 100 meters labels / min
The largest speed of labeling 10000 pcs/H
Labeling accuracy ± 1mm
Integrated Labeling accuracy ± 1mm
Product Size: base on client supply container 2L Φ 100mm
Maximum label width 160mm
The maximum length of label 500mm
The maximum diameter of label 500mm
Paper core diameter 152 mm
Labeling glue leading and trailing edge gluing with hot melt
Gluing temperature 120~160C
Type of label opp label, paper-plastic composite film label, paper label
Labeling workstation 12 per cycle
The quantity of labeling mold 1 set
Machine weight 2000 Kg
