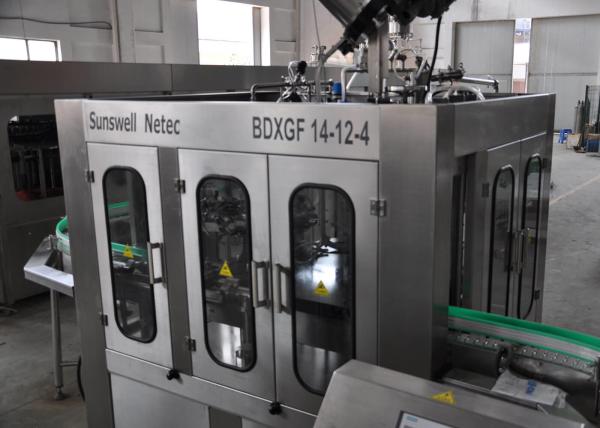

Full Automatic 3-in-1 Soft Drink Beverage CSD Carbonated Drink Filling Bottling Machine Production Line

General description:

DXGF series is special for carbonated soft drinks, soda water, oxygen / hydrogen rich water, energy drinks filling, combined with rinsing, filling and capping. It is innovated and designed in the requirement of carbonated beverage technics, on the bases of introducing, digesting and absorbing advanced technology abroad. It is reasonable in structure, safe to operate and easy to maintain, which is an ideal choice for beverage producers.

Features:

• Compact structured, good-looking, easy to operate and highly automated.
• Air conveyor is directly linked with infeed starwheels, making it easier to change bottles without screws and conveyor chains.
• Bottles are conveyed with neck blocked. Bottles can be changed through some replacement of guiding sheets, starwheels of nylon instead of height adjustment of machine.
• Rinser-clamp of special design is strong and endurable, without contact with worms at bottle-mouth, to prevent bi-pollution.
• Highly effective spraying nozzles equipped on the rinser-clamp can rinse every side of inner bottle and save water.
• Parts with contact with material are all made of stainless steel of food-grade, no dead angles and easy to clean up.
• Feed-in volume is controlled to ensure accurate filling.
• Valve on-off system is driven by cam, which starts on bottle signals.
• High-speed and highly accurate filling valves ensure no loss of liquid at high speed.
• Bottles are kept with necks blocking when going up and down by elevator-cam, which apply to thin bottles with equal force instead of spring problem.
• Equipped with CIP clean-in-place.
• Bottle support-sheet in infeed starwheels goes down via screw. Bottles can be changed without adjustment of height of conveyor chain.
• Capping heads are magnetic constant-torque equipped to ensure capping quality with no damage.
• Highly effective cap sorting and feed in system is protective for feed in and cap absence.
• Equipped with overload system to safeguard machine and operators.

Carbonated drinks filling line model :
