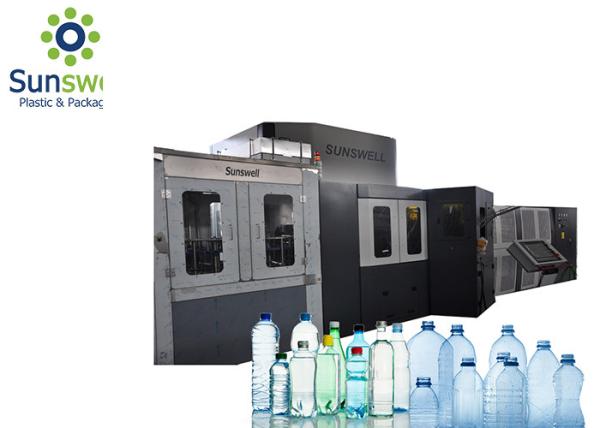

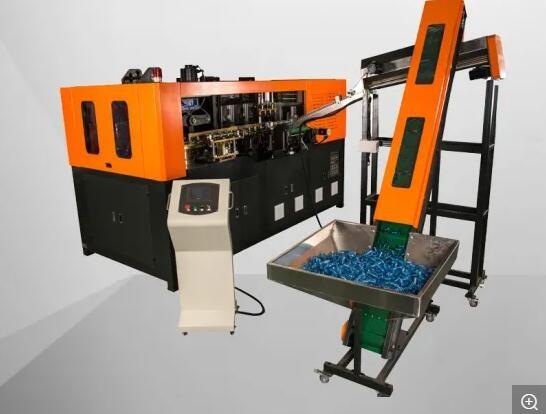

CE Stretch Automatic Blow Molding Machine For Still Water Carbonated Water Juice Beverage
CE Stretch Automatic Blow Molding Machine For Still Water Carbonated Water Juice Beverage
CE Stretch Automatic Blow Molding Machine For Still Water Carbonated Water Juice Beverage
CE Stretch Automatic Blow Molding Machine For Still Water Carbonated Water Juice Beverage
CE Stretch Automatic Blow Molding Machine For Still Water Carbonated Water Juice Beverage
CE Stretch Automatic Blow Molding Machine For Still Water Carbonated Water Juice Beverage
Specifications
Brand Name :
SUNSWELL
Model Number :
CGX-XXX
Certification :
CE,ISO,SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
100 Sets Per Year
Delivery Time :
30 Days
Packaging Details :
Standard Export Wooden Case
Name :
Fully Automatic Plastic Pet Bottle Blow Molding Making Machine
Voltage :
Customized
Automatic :
Yes
Use :
Making PET Bottle,water bottle
Power(w) :
AS ORDER
Blow moulding type :
Stretch Blow Moulding
After-sales service provided :
Engineers available to service machinery overseas,Online support,Video technical support,commissioning and training
Warranty :
12months
Description

Fully Automatic PP PET Bottle Stretch Blow Molding Machine For Still Water Carbonated Water Juice Beverage

Technical parameter

Item
Bottle type specification Cavity 2
Theory output 1400-1500
Max.volume 5L
Bottle mouth maximum overall DIdiameter 150mm
Bottle biggest diameter 180mm
Bottle maximum height 400mm
Power specifications Light tube quantity 32pcs
Light tube power 1.5KW
Maximum heating power 48KW
All electric machine installation 51KW
Actual consumption 35.7KW
Air pressure specification Work pressure 7-9kg/cm2
Low-pressure gas consumption 1600L/min
Blow bottle pressure 25-35kg/cm2
Higher -pressure gas consumption 3400Ltr/min
Forzen water specification Work pressure 5-6 kg/cm2
Temperature range 10℃
Consumption 6000kcal/hr
Forzen water flow 50L/min
Machine specification Size of the machine 4.7x1.6x1.9
Weight of the machine 3ton

Features:

A. Stable performance with advanced PLC.

B. Conveying preforms automatically with conveyor.

C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.

D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.

E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.

F.No contamination and low noise with the air cylinder to drive the action instead of the oil pump.

G. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.

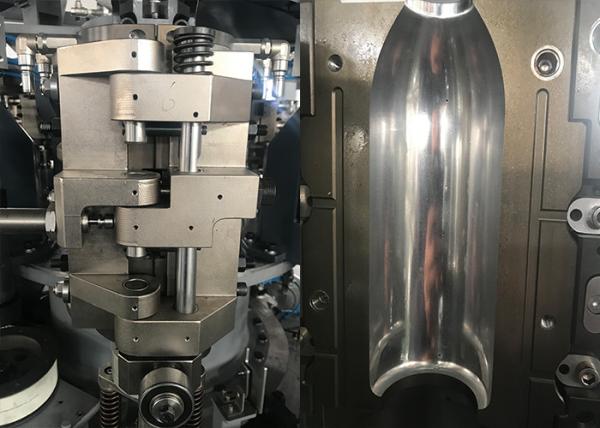

H. Strong clamping force with high pressure and double crank links to lock the mold.

I. Two ways of operating: automatic and manual.

J. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.

K. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.

L. Contamination is avoided for the bottle body.

M. Ideal effect of the chilling with the chilling system.

N. Easy installation and starting

O. Low rejection rate: less than 0.3percent.

Main Components and Brands(can be customized)

No. Description Brand & Origin
1 PLC Omron (Japan)
2 Operating Panel KunlunTongtai (Sino-foreign joint venture)
3 Servo Motor
(Driven the mold clamping system, stepping system, the stretching system, preform arraying)		 Yaskawa (Japan)
4 Speed Reducer NEUGART (Germany)
5 High Pressure Blowing Valve (pre-blowing, blowing and exhausting included) PARKER(U.S.A.)
6 Cylinder Rexroth(Germany) or FESTO (Germany)
7 Motion Valve Parker (USA)
8 Control Button, Intermediate Relay Omron (Japan)
9 AC Contactor, Thermal Relay Schneider (France)
10 Intelligent Voltage Regulator Omron (Japan)
11 Silicon Control Semikron (Germany)
12 Infrared Tungsten Lamp Pipe Lianggu(China)
13 Convertible Governor Omron (Japan)

CE Stretch Automatic Blow Molding Machine For Still Water Carbonated Water Juice Beverage

Advantages:
1. Low costhigh efficiencyeasy operation and maintenance, etc, profited from the fully automatic technological process.
2.Ideal cooling system make the finished bottles without any flaws.
3. Easy for you to installtest and start up.
4. Low rejection rate: Less than 0.2 percent.
5.Customized bottle mold design.

CE Stretch Automatic Blow Molding Machine For Still Water Carbonated Water Juice Beverage
