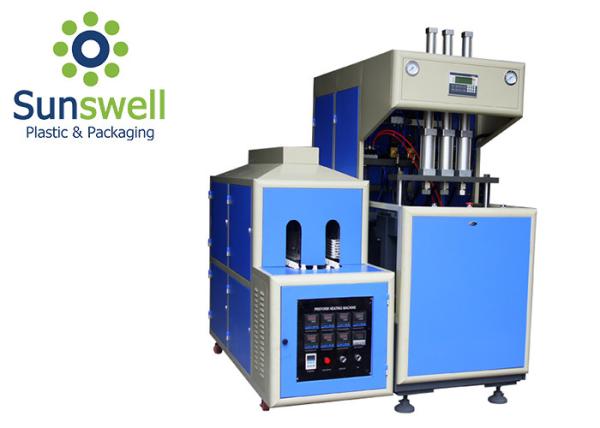

ISO Semi Automatic Blow Molding Machine For 300ML 500ML 1L 1.5L PET Bottle
ISO Semi Automatic Blow Molding Machine For 300ML 500ML 1L 1.5L PET Bottle
ISO Semi Automatic Blow Molding Machine For 300ML 500ML 1L 1.5L PET Bottle
ISO Semi Automatic Blow Molding Machine For 300ML 500ML 1L 1.5L PET Bottle
Specifications
Brand Name :
SUNSWELL
Model Number :
SW-1200
Certification :
CE,ISO,SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
100 Sets Per Year
Delivery Time :
30 Days
Packaging Details :
Standard Export Wooden Case
Voltage :
Customized
Use :
Making PET Bottle,water bottle
Blow moulding type :
Stretch Blow Moulding
After-sales service provided :
Engineers available to service machinery overseas,Online support,Video technical support,commissioning and training
Warranty :
12months
Key words :
PET Stretch Bottle Blowing Molding Machine
Description

Semi Automatic 300ML 500ML 1L 1.5L PET Bottle Plastic Bottle Blow Molding Machinery


General Description:

1). The machine adopts revolving infrared pre-heat system, it ensures pet performs
be heated evenly.
2). The machine uses mechanical-double-arm mould clamping system which ensures the mould
be closed tightly even under high pressure and high temperature.
3).The air system has been divided into two parts: Pneumatic action part and bottle
blow part to meet the different pressure requirements for the action and blow, it
can provide sufficient and steady high pressure for blowing large irregular shaped
bottles
4).Wide -mouth and hot-filling bottles can also be made.

ISO Semi Automatic Blow Molding Machine For 300ML 500ML 1L 1.5L PET Bottle
Specifications:

Output

up to bottle shape

 2000~2500bph

Power

power voltage

3Phase

380V /50HZ

Finished Bottle

bottle body diameter

 30mm-110mm

installed power / actual power

 18kw/10kw

bottle height

 50mm-350mm

Air Source

high pressure air compressor

 1.6m3/min 3.0MPa

bottle neck diameter

 15mm-48mm

air dryer

 2.0m3/min 3.0MPa

Mold

 cavity 4 cavity

Cooling Water

water yield

 15L/min

mold thickness

 100~250mm

Blower Dimension

length*width*height/ weight

 1650*800*1850mm/650kg

Max. stretching distance

 600*380mm

Heater Dimension

length*width*height/ weight

 2150*670*1700mm/350kg
Main parts:
Ltem Specification QTY Power/Remarks

Blowing

machine

Semi-Automatic blowing

machine

 DY-1200B 2 42KW
Perform heater 1
Blowing mold 500ml.2cavity 2 45# Street
Blowing mold 1500ml.2cavity 2

Auxiliary

Equipment

 High pressure air compressor 1.6m3/3.0mpa 1 18.5KW
High pressure air tank 0.6m3/3.0mpa 1
High pressure air dryer 2.5m3/3.0mpa 1 4kw
High pressure air filter 2.5m3/3.0mpa 2
Connecting pipe 2.0m3/3.0mpa 1
Mold chiller 3HP air-cooling 1 4kw

ISO Semi Automatic Blow Molding Machine For 300ML 500ML 1L 1.5L PET Bottle

ISO Semi Automatic Blow Molding Machine For 300ML 500ML 1L 1.5L PET Bottle
