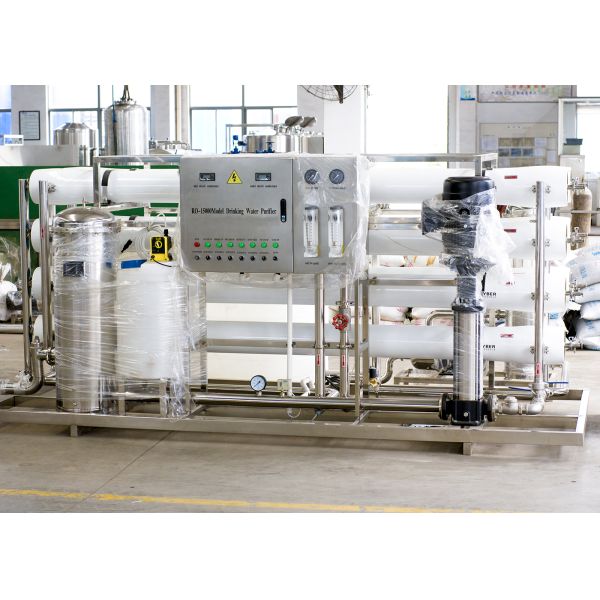

Beverage / Drinking Small Scale Water Purification Plant For Pure Water Treatment
Beverage / Drinking Small Scale Water Purification Plant For Pure Water Treatment
Beverage / Drinking Small Scale Water Purification Plant For Pure Water Treatment
Beverage / Drinking Small Scale Water Purification Plant For Pure Water Treatment
Specifications
Brand Name :
Sunswell
Model Number :
RO
Certification :
CE SGS
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 sets/month
Delivery Time :
60 days after receiving down payment
Packaging Details :
Wooden case
Product name :
Water Treatment System Processing Reverse Osmosis Plant
Material :
SS304
Application :
Filtration
Type :
RO water treatment equipment
Usage :
Liquid Filter
Warranty :
12 Months
After-sales service provided :
commissioning and training
Function :
beverage or food company
Description

Beverage/Drinking Water Purification Plant/RO Reverse Osmosis Pure Water Treatment System

Reverse Osmosis


The Reverse Osmosis device is an equipment to purify the saline water with the action of pressure difference of semi-permeable membrane. It is called reverse osmosis, as it is counter to natural penetration direction. Difference materials have different osmotic pressures.
The reverse osmosis can remove more than 97% of the soluble salt and above 99% of the colloid, microorganism, particles and organic materials, becoming the best first-choice choice equipment in the engineering of modern purified water, highly purified water and space water (super-purified water). The most highlighted features are low energy consumption, no pollution, simple technique, high-quality water and convenient operation and maintenance.

Main Equipments Description:

Raw Water Pump 1 set

Model: 4-50

Brand: Nanfang Pump

Quartz sand filter 1 set

Material: SUS304

Overall dimensions: D450×H2000 (mm)

Active carbon filter 1 set

Material: SUS304

Overall dimensions: D450×H2000 (mm)

Sodium ion exchanger 1 set

Material: SUS304

Overall dimensions: D450×H2000 (mm)

Precision filter 1 set

The filter medium of the precise filter is made of micro-hole film, it is the modern advanced equipment for the filter and widely used in medicine, electrical, food industries.

Working pressure: ≤0.3Mpa

Production capacity: 4T/h

Overall dimensions: D400×H1000 (mm)

Material: SUS304

Reverse osmosis 1 set

Capacity: 2T/H, 8 sets 4040 (Hydranautics)

One stage reverse osmosis

Pump: CDLF4-16 (Nanfang)

Ultraviolet radiation sterilizer 1 set

Working pressure≤0.2 Mpa

Treatment Capacity 2T/H

Overall dimensions: 116×75×65mm

Ozone generator 1 set

Capacity: 7g

Overall dimensions: 400×320×600mm

Material: Carbon Steel

Gas-liquid mixing pump 1 set

Model: 25QY-2

Brand: Nanfang Pump

Pure water tank

Raw Water Tank

Material: SUS304

Volume: 2m3

Beverage / Drinking Small Scale Water Purification Plant For Pure Water Treatment
