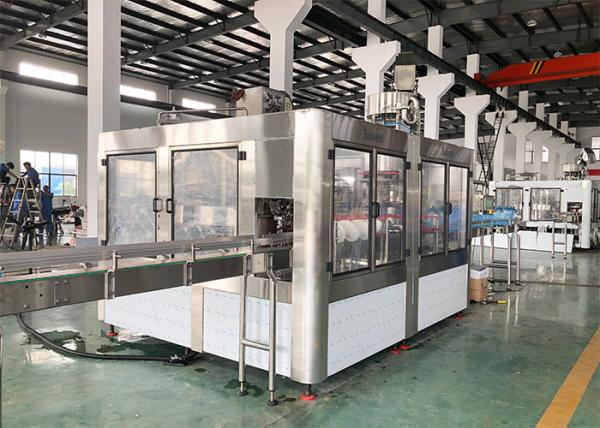

3 in 1 Monoblock Liquid Pet Bottle Mineral Pure Drinking Water Washing Rinsing Bottling Filling Capping Plant

General Description:

This Water Filling Machine is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. The CGF Wash-filling-capping 3-in-1unit: Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficienc

Flow chart: (Pure water filling machine):
A)Bottle production line PET Resin --Injection moulding machine -Botlte blowing machine --PET bottle
B)Water treatment system Raw water--Pump--Silica sand filter--Carbon filter--Water softner--Reverse Osmosis -UV sterilizer-Ozone generator--Finished water tank
C)Filling&Packing part Bottle unscrambler--Air conveyor--Washing,filling,capping 3in1 machine--Light checker--Blow dryer--Dater printer--Lableing machine --Packing machine -Stock

Technical Parameters:

Main features
1. Bottle infeed

2. Rinser

The rotary wheel is a fully SUS304 stainless steel welded structure.
The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.
The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
The rinser is driven by driving system positioned inside machine frame via gear transmission.

3. Filler

Rotary wheel fully made of stainless steel SUS 304.

Gravity filling method.

Filling valves are made of SUS304.

Filling valves are reasonably structured with accurate filling.

Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.

Level of cylinder is controlled with float-ball.

Filler is driven through gears inside the machine frame.

Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.

4. Capper

Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism which have a photocell switch to stop the capper when there is no cap inside the chute.

The capper is equipped with inlet bottle detection switch.

Centrifugal way of cap arranging is adopted to reduce damage of caps.

5.Main configuration

Touch screen: Mitsubishi, Thinget or Weinview
PLC program controller: Mitsubishi or Omron
Inverter: Mitsubishi or Omron
Photoelectrical controller: AUTONICS
Other electrical components: Schneider
Pneumatic component: Airtac
Pump: Nanfang
