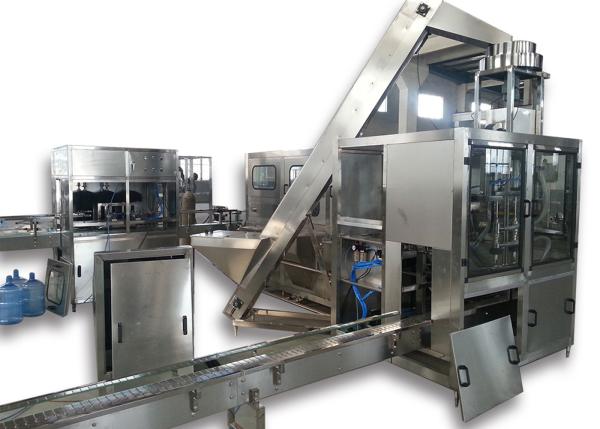

Electric Fully Automatic 5 Gallon Water Filling Machine Barrel Water Packaging
Electric Fully Automatic 5 Gallon Water Filling Machine Barrel Water Packaging
Specifications
Brand Name :
Sunswell
Model Number :
QGF
Certification :
CE SGS
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
$20,000/set
Payment Terms :
L/C, T/T
Supply Ability :
10 sets/month
Delivery Time :
90 days after receiving down payment
Packaging Details :
Wooden case
Product name :
Automatic 5 Gallon Bottle Water Filling Machine
After-sales service provided :
Engineers available to service machinery overseas
Voltage :
220V/380V,380V 50HZ 3P or customized,380V/50HZ
Driven type :
Electric
Type :
Filling Machine
Material :
SUS304
Capacity :
300BPH for 5 gallon bottle
Function :
Washing Filling Capping
Bottle type :
5 gallon barrel or 3 gallon barrel
Name :
5 gallon filling machine
Description

Fully Automatic 5 Gallon Barrel Water Filling Packaging Machinery

Flow chart of the production line:
1.Visual inspection -->2.De-capper -3.Out washer -->4.Automatic bottle feeder->5.Inner washer filler capper --->6.Light inspection --->7.Sleeve film -->8.Shrinker-->9.Bottle lifter--->10.Palletizer--->11.Storage in warehouse
Details requirements about the production line can according to the user's needs.

Applications:
QGF-Series 5gallon water production line mainly used in pure water and mineral water production. Capacity from 100bph to 1200bph, it can suitable both small plant and big plant.

Delivery time:
As usually as 20-45working days.


Install:
Our have 5install engineers for the foreign users. They have the install expericence in many countries.

Item Type Remark
Washing part Number of bottle carrier / nozzles 2 bottle carrier,12 sets spraying nozzles homemade special rotary spray system
Number of rows for washing 6 rows (each row 2 bottle carrier)
Number of rinsing pump 6 sets of Lingxiao pump BLC series disinfectant and tap water washing pump:370KW, pure water washing pump:550KW
Filling part Number of filling pump 2 set of Lingxiao BLC755
Filling nozzle system 2 sets of SS304 type
Pressure valves 4V210-08(AC 220V) Airtac
Filters rugulators lubricators AFC-2000 Airtac
Pressure sensitive switch YSNS-C110 Airtac
Capping part Automatic caps tank/caps chute 100pcs caps tank (manual caps dosing)
Numbers of the capping chuck 2 sets of sticking type
Cylinder system SC 50*50 x 2 sets, SC 50*525 x 1 set Taiwan Airtac
cap-ahigning motor 90YCJG60 1:30
Controlling unit PLC system K7M-DR20UE korea LG
proximity switch Ni10-Q25-AN6x TURKER
AC contactor GMC-9 AC 220V korea LG
signal relay MY2NJ-AC 220V Omron
air-leakage switch C65N-16 4P/2P MGE
Electromagnetic valves pure water washing:ZCS-15L filling:ZCS-20L
control panel 1020-40-50
Speed gear motor 2 sets of 0.75Kw pearl river motor
station assign

adopt double row six stations wash the bottle,two are

filling ,two are capping - the first,sencond and thrid s

tation: dinsinfectant washing, the fourth station:drain,

the fifth station:tap water washing, the sixth station: pure

water washing
input voltage AC 220/380 V 50HZ

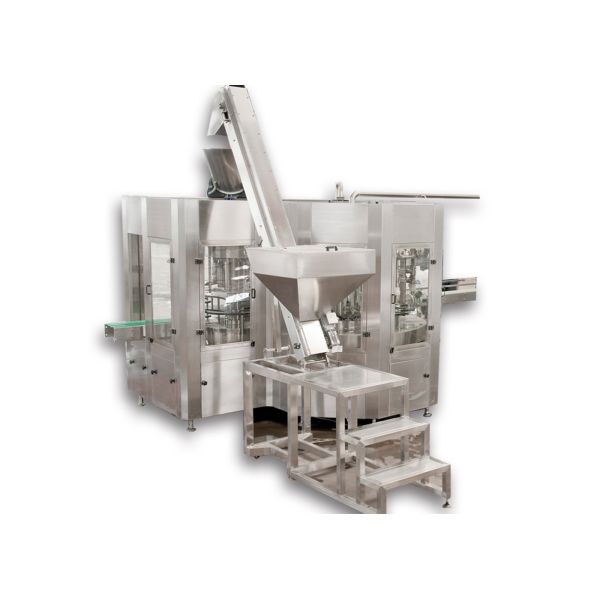

Electric Fully Automatic 5 Gallon Water Filling Machine Barrel Water Packaging
