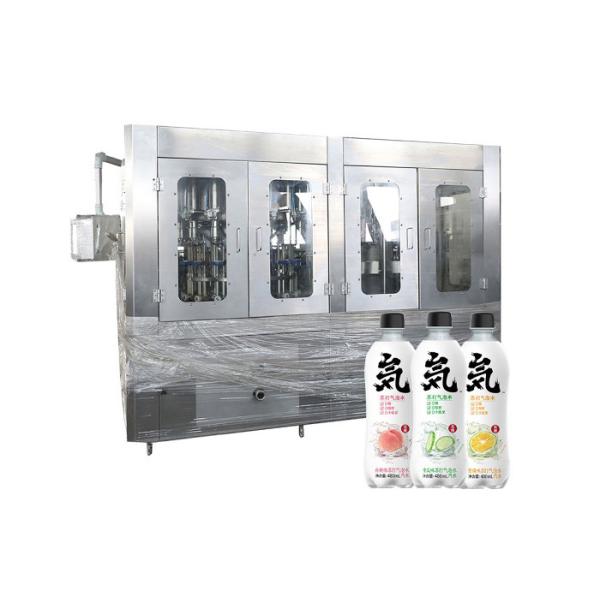

Air Conveyor Monobloc Carbonated Filling Machine With CSD System
Air Conveyor Monobloc Carbonated Filling Machine With CSD System
Air Conveyor Monobloc Carbonated Filling Machine With CSD System
Air Conveyor Monobloc Carbonated Filling Machine With CSD System
Air Conveyor Monobloc Carbonated Filling Machine With CSD System
Air Conveyor Monobloc Carbonated Filling Machine With CSD System
Air Conveyor Monobloc Carbonated Filling Machine With CSD System
Air Conveyor Monobloc Carbonated Filling Machine With CSD System
Specifications
Brand Name :
Sunswell
Model Number :
DCGF60-60-15
Certification :
CE, ISO, SGS, UL
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per year
Delivery Time :
30 days
Packaging Details :
Seaworthy Wooden Case
Product name :
Carbonated Filling Line
Filling material :
carbonated water/beverage/juice
suitable bottle :
50-110
Driven Type: :
Electric
After-sales Service Provided :
Engineers
Description

PET Bottle Soft Drink Carbonated Filling Machine , Rotary Washing Filling Cappi

Product Description

Soft drinks filler 3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the
requirement of carbonated soft drinks and soda water, on the basis of introducing, digesting and absorbing advanced technology
from Germany and Italy.

We can also provide turnkey/complete Carbonated Soft Drinks Lines:

Blowing / Filling / Combi / Labelling / Container Treatment & Cleaning / Conveying Systems / Packing / Palletising

1. CSD system
2. Bottle blowing system make PET plastic bottles ( Semi automatic / Fully automatic )
3. Water treatment system purify water (Sand filter,carbon filter,RO/UF ,Ozone sterilizer,UV sterilizer and etc.)
4. Air conveyor for empty bottle loading
5. Rinser-filler-capper 3 in 1 monoblock
6. Cap loader
7. Code printer (Ink-jet printer/ laser-jet printer)
8. Labeling machine ( PVC sleelve labeling machine /OPP hot melt glue labeling machine/Self-adhesive labeling machine )
9. End packaging ( PE shrink wrapping machine / Carton packing machine )

Carbonated filling machine Main features:
1) Direct connection between air conveyor and in-feeding starwheel to substitute
In-feeding screw and conveyor to ease the process of bottle-size-changing
2) Neck-hanging technology is applied in bottle transportation. No contact to screw
Part of the bottle to prevent second pollution, without equipment height
Adjustment, suitable for wider scope of bottle sizes and quicker bottle changing
3) Filling machine valve-opening device is driven by cylinder, with accurate action, rapid flow,
High filling precision, nice liquid level. CIP system and controlling program are
Equipped


Filling line includes:
1, Water treatment
2, Blow molding machine
3, Bottle unscrambler
4, Air conveyor
5, Rinsing-filling-capping 3-in-1 monoblock
6, Mixer (Carbonater)
7, Bottle Warmer
8, Sleeve / OPP labeler
9, Air dryer, visual inspection, ink jet printer
10, Shrink wrapper / wrap-round case packer
11, Palletizer

Technical Parameters:
Number of Filling Valves 24, 32, 40, 50, 60, 72, 84
Filling Speed 5, 000-40, 000BPH (500ml)
Type of Bottles PET Bottles of various shapes
Bottle Height 150-320(mm)
Bottle Diameter φ 50-110(mm)
Filling Temperature Ambient temperature
Filling Principle Isobaric Filling
Filling Product Carbonated soft drinks, Soda Water, Isotonic Drinks, etc.

Air Conveyor Monobloc Carbonated Filling Machine With CSD System

Air Conveyor Monobloc Carbonated Filling Machine With CSD System

Air Conveyor Monobloc Carbonated Filling Machine With CSD System
