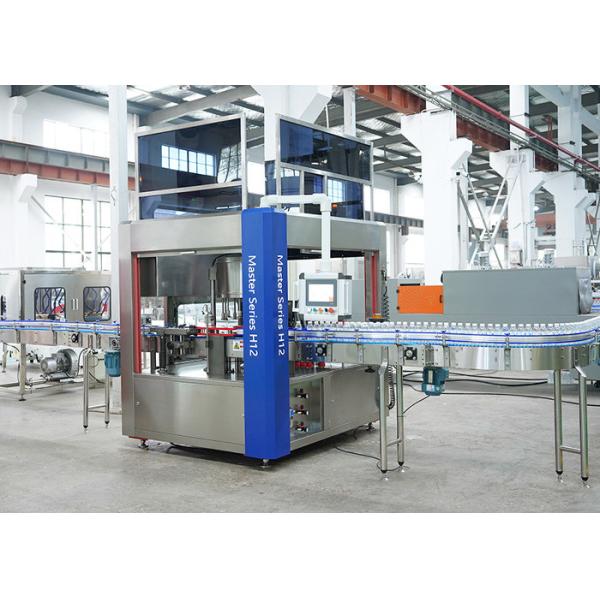

Rotary Spring Water Carbonated Drink Bottles Sticker Labeling Machine High Speed
Rotary Spring Water Carbonated Drink Bottles Sticker Labeling Machine High Speed
Rotary Spring Water Carbonated Drink Bottles Sticker Labeling Machine High Speed
Rotary Spring Water Carbonated Drink Bottles Sticker Labeling Machine High Speed
Rotary Spring Water Carbonated Drink Bottles Sticker Labeling Machine High Speed
Rotary Spring Water Carbonated Drink Bottles Sticker Labeling Machine High Speed
Specifications
Brand Name :
Sunswell
Model Number :
TB
Certification :
CE, SGS
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 sets/month
Delivery Time :
60 days after receiving down payment
Packaging Details :
Wooden case
Product name :
Hot Melt Glue Labeller
Voltage :
220V/380V/Customized
Automatic grade :
Full Automatic
Condition :
New
Driven type :
Electric
Type :
Labeling Machine
Packaging type :
Plastic
Application :
Food,Beverage
After-sales service provided :
Online support,Engineers available to service machinery overseas
Warranty :
1 Year
Material :
SUS304
Description

High speed rotary spring water carbonated drink bottles sticker labeling machine

Working principles of sticker labeling machine

At the beginning of the working process, the bottles are fed to the labeling machine at a constant speed on the conveyor belt.

The mechanical fixing device separates the bottles by a fixed distance, and pushes the bottles along the conveyor belt. The

mechanical system of the labeling machine includes a driving wheel, a labeling wheel, and a reel.

The driving wheel drags the label tape intermittently, the label tape is pulled out from the reel, and the labeling wheel will press

the label tape on the bottle after passing through the labeling wheel. An open-loop displacement control is used on the reel to

maintain the tension of the label tape. Because the labels are closely connected to each other on the label tape, the label tape

must constantly start and stop.    

The label is attached to the bottle when the labeling wheel moves at the same speed as the bottle. When the conveyor belt

reaches a certain position, the label belt drive wheel will accelerate to a speed matching the conveyor belt, and after the label

is applied, it will decelerate to a stop.

Technical parameters:

Model
RTS9000
RTS12000
RTS18000
RTS24000
Capacity
9000
bottles/Hour
12000
bottles/Hour
18000
bottles/Hour
24000
bottles/Hour
Label inner diameter
cp 76.2 mm
Label outer dimeter
cp 350 mm
Label material
PP, PET, OPS, Paper
Machine weight
2000KG
3000KG
3600KG
4500KG
Overall machine size
2000 x 2300 x 2400 mm
2500 x 2400 x 2500 mm
2500 x 2500 x 2900 mm
3000 x 2900 x 3100 mm
Using power
220 V 50 Hz 1500 W
220 V 50 Hz 2200 W
220 V 50 Hz 3500 W
220 V 50 Hz 4000 W

Rotary Spring Water Carbonated Drink Bottles Sticker Labeling Machine High Speed

Rotary Spring Water Carbonated Drink Bottles Sticker Labeling Machine High Speed
