Pneumatic Pop Empty Can Depalletizer For Can Drink Production Line
Pneumatic Pop Empty Can Depalletizer For Can Drink Production Line
Pneumatic Pop Empty Can Depalletizer For Can Drink Production Line
Pneumatic Pop Empty Can Depalletizer For Can Drink Production Line
Pneumatic Pop Empty Can Depalletizer For Can Drink Production Line
Pneumatic Pop Empty Can Depalletizer For Can Drink Production Line
Pneumatic Pop Empty Can Depalletizer For Can Drink Production Line
Pneumatic Pop Empty Can Depalletizer For Can Drink Production Line
Specifications
Brand Name :
PEIYU
Model Number :
SPC
Certification :
CE&ISO
Place of Origin :
Shanghai,China
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
L/C, T/T
Delivery Time :
40 working days
Packaging Details :
wooden case
Application :
Beverage, Food
Driven Type :
electric&pneumatic
Voltage :
380V*50HZ3PH
Power :
8kw
Weight :
5500kg
Dimension(L*W*H) :
8600mm*4150mm
Description

Pneumatic Pop Empty Can Depalletizer For Can Drink Production Line

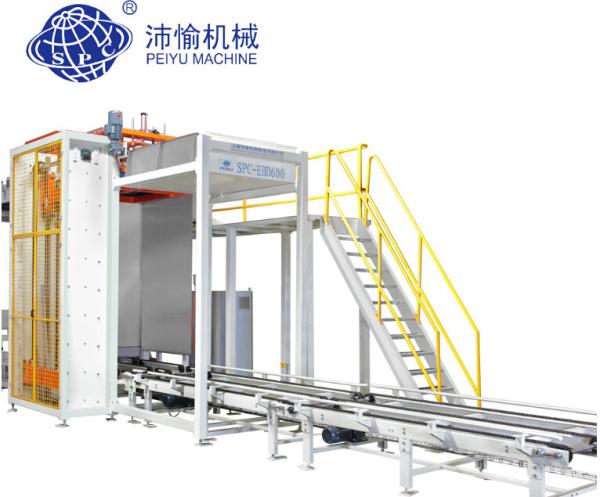

Empty Can Depalletizer, is a full automatic and intelligient packaging equipment which is applied to unloading empty cans and putting them onto the conveyer for the next procedure. The depalletizer consists of several main parts, namely, case conveying platform, pallet conveyor, pallet magazine and pallet conveying roller device. This machine is suitable for beer, beverage and foodstuff industries which are aimed at recycling cans in the production line.

Main structures

1) This machine is composed of lift, transfer table, can pushing part, roller 1, roller 2 and operation platform.

2) Elevating part

3) Lift is used for lifting pallets to the height of transfer table and pushing cans to the transfer table by can push parts.

4) Transfer table

5) This part is used for can storage and transport.

6) Can pushing parts

7) It is used for pushing cans to transfer table from pallet.

Technical Parameter:

Pop Can Empty Cans Depalletizer Used For Can Drink Production Line

Capacity

800cans/min

Applicable products

CAN,PE,PP,GLASS BOTTLES

Totaln Power

7KW

Total Weight

5000kg

Motor Power

3x380x3PH

Copressed air supply

0.8Mpa

Applicable stac size(standard)

1400x1100x2300mm(LXWXH)

Air Supply Consumption

0.2m3/min

Can Conveying Mesh Chain

4000mm

Out Dimensions(Standard)

12700x3500x4300(LXWXH)

Company Information


New branch-Anhui Peiyu Packing Technology Co.,Ltd ,located at NO.2588 East Qingliu Road,Suchu Modern Industrial Park,Chuzhou Anhui Province

Our Services


Installation and commissioning

We'll send experienced technicians after the equipments arrived buyer's workshop . Our technicians 'll guide the installation and commissioning to fulfill designed capability within designed time . The seller will also offer training including:equipment structure and maintenance,machine control and operation etc .

After-sales service

The guarantee period will be 1 year after qualifying the equipment .After guarantee period , we'll provide technical support and after-sales service for life.


FAQ
1. Q: Why us?
A: We're professional packing machinery manufacturer ,our price & service is good.
2. Q: Delivery ?
A: About 45 days after order confirmed.
3. Q: Payment ?
A: T/T or L/C .
