Low Failure Rate Automatic Robotic Bag Palletizer 8 KW 3000Kg - 4000Kg
Low Failure Rate Automatic Robotic Bag Palletizer 8 KW 3000Kg - 4000Kg
Low Failure Rate Automatic Robotic Bag Palletizer 8 KW 3000Kg - 4000Kg
Low Failure Rate Automatic Robotic Bag Palletizer 8 KW 3000Kg - 4000Kg
Specifications
Brand Name :
PEIYU
Model Number :
SPC-PRS
Certification :
ISO9001;2008 CE
Place of Origin :
SHANGHAI,CHINA
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
10 Set/Sets per Month
Delivery Time :
45DAY
Packaging Details :
Wooden case
Application :
Food, Beverage, Commodity, Chemical, Machinery & Hardware, Apparel
Voltage :
220V/380V
Power :
8 KW
Weight :
3000-4000Kg
Pallet type :
wood/plastic
capacity :
8s/time
Description

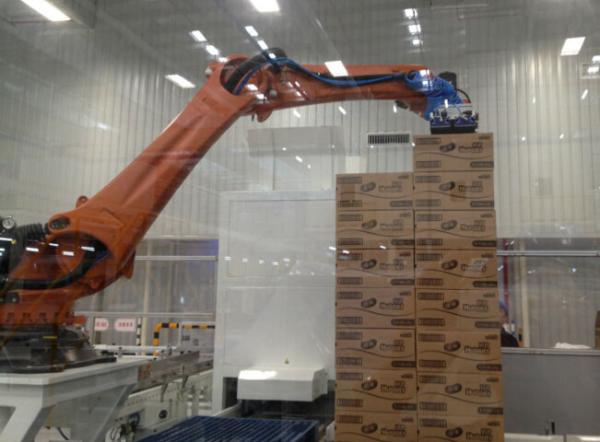

Low Failure Rate Automatic Robotic Bag Palletizer 8 KW 3000Kg - 4000Kg
Product Description

Applicable scope: It is mainly used in oil, grain, food, feed, chemical industry, wine, beverage, printing and such kinds of products high-speed automatic palletizing

Function characteristics
1. PLC controller, easy use
2. Let linear motion come true, simplify control system
3. Simple structure, low failure rate and convenient maintenance
4. Few main parts and accessories, so maintenance cost low
5. Low power consumption, only 1/5 consumption of the same kind of mechanical stacker crane from other company
6. Only need a little floor space, floor utilization ratio is high
7. Diverse models, flexibly adapt various palletizing requirements
8. Flexible use method, can most handle six production lines
9. Manipulator finger styleso can work safely 10. Manipulator arm Lightsome strong, energy conservation and environmental protection


Technical parameters

Model XY-SR-130 XY-SR-210
Mechanical structure Multiple joint robot
Movement method
Cylinder coordinates type
Palletizing weight(contains machine tongs) 120kg 200kg
Designed palletizing capability 850c/hr-1200c/hr 1400c/hr-1600c/hr
Movement axle Normally 4jiont(the most can be 5jionts)
Movement scope Z-Axis(vert) 2100mm 2300mm
R-Axis(long) 1300mm 1500mm
Axis(Turn) 33 0 @
∝ Axis(Wrist) 33 0 @
Machine tongs pallet, finger, sucker and so on
Palletizing memory ability (400 Normally 30kinds(the most can be 400kinds)
Teaching method Manual teaching/teaching support/teaching cancel(optional)
Power (200V 3PH 50HZ) 2KVA 6.5KVA
Compressed air 0.5Mpa 0.5Mpa
Robot weight(don't contains tongs) 800kg 1150kg

Company Information

New branch-Anhui Peiyu Packing Technology Co.,Ltd ,located at NO.2588 East Qingliu Road,Suchu Modern Industrial Park,Chuzhou Anhui Province

Our Services

Installation and commissioning

We'll send experienced technicians after the equipments arrived buyer's workshop . Our technicians 'll guide the installation and commissioning to fulfill designed capability within designed time . The seller will also offer training including:equipment structure and maintenance,machine control and operation etc .

After-sales service

The guarantee period will be 1 year after qualifying the equipment .After guarantee period , we'll provide technical support and after-sales service for life.
