Low Voltage Electrical Depalletizer Machine For Empty Tin Can Box Form
Low Voltage Electrical Depalletizer Machine For Empty Tin Can Box Form
Low Voltage Electrical Depalletizer Machine For Empty Tin Can Box Form
Low Voltage Electrical Depalletizer Machine For Empty Tin Can Box Form
Low Voltage Electrical Depalletizer Machine For Empty Tin Can Box Form
Low Voltage Electrical Depalletizer Machine For Empty Tin Can Box Form
Low Voltage Electrical Depalletizer Machine For Empty Tin Can Box Form
Low Voltage Electrical Depalletizer Machine For Empty Tin Can Box Form
Specifications
Brand Name :
PEIYU
Model Number :
SPC
Certification :
CE&ISO
Place of Origin :
Shanghai,China
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
L/C, T/T
Delivery Time :
60 working days
Packaging Details :
wooden case
Type :
Packaging Line
Unloading stack height :
2800mm±100mm(Adjustable)
Pallet size :
L1400mm*W1400mm*H180mm(Adjustable)
Capacity :
18000-36000BPH
Maximum load/layer :
250kg
Maximum load/pallet :
1500kg
Description

Low Voltage Electrical Depalletizer Machine For Empty Tin Can Box Form

Product Description

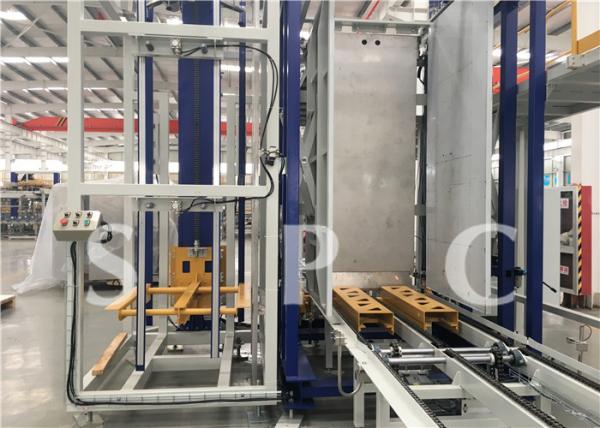

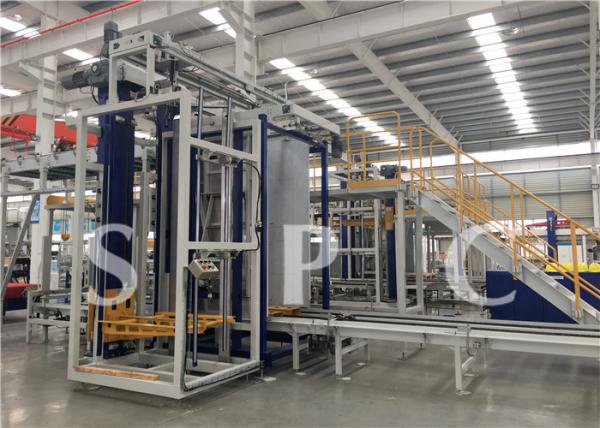

This machine mainly used for automatic discharging empty can & bottle in the food & beverage production line from pallet to conveyor. Take place of manual unloading or traditional semi-automatic unloading device. Improve production efficiency and make production operation more standard, save manpower, reduce production cost.

Description

1. Suitable for tinplate cans/PET/glass bottles

2. Main drive,rise and fall chin is RS800 double row high strength chin

3. Stack conveyor line is RS600 double row high strength china,conveyor speed can frequency conversion and adjust speed,transport stack can store 2 stacks above products

4. Host unloading the stack position both sides of the door into the stack can be automatically adjusted

5. When required unloading cans,automatically suction and discharge collection partition with adjusting carboard mechanism,clamping layer tight unloading bottles to prevent inverted cans

6. Empty pallet is automatically collected,rise and fall driven with brake motor reducer,stable rise and fall movement

7. Main electric components required: PLC(Siemens),touch screen (Schneider/PROFACE),photoelectric(SI),low-voltage electrical (Schneider)

8. Machine is linkage controlled by PLC automatically,sutomatic place,positioning,automatic rise and fall,automatic absorption and desorption partitions,automatic unloading tank,automatic collecting empty pallets

Technical Parameters

Unloading stack height 2800mm±100mm(Adjustable)
Pallet size L1000-1400mm×W1000-1400mm×H100-180mm
Capacity 18000-36000BPH
Maximum load/layer 250kg
Maximum load/pallet 1500kg
Maximum stack height/pallet 1800mm
Power 20KW
Air pressure 7bar
Air consumption 800L/min

Low Voltage Electrical Depalletizer Machine For Empty Tin Can Box Form

Company Information


New branch-Anhui Peiyu Packing Technology Co.,Ltd ,located at NO.2588 East Qingliu Road,Suchu Modern Industrial Park,Chuzhou Anhui Province

Our Services


Installation and commissioning

We'll send experienced technicians after the equipments arrived buyer's workshop . Our technicians 'll guide the installation and commissioning to fulfill designed capability within designed time . The seller will also offer training including:equipment structure and maintenance,machine control and operation etc .

After-sales service

The guarantee period will be 1 year after qualifying the equipment .After guarantee period , we'll provide technical support and after-sales service for life.


FAQ
1. Q: Why us?
A: We're professional packing machinery manufacturer ,our price & service is good.
2. Q: Delivery ?
A: About 45 days after order confirmed.
3. Q: Payment ?
A: T/T or L/C .
