750W Robot Packaging Machines Case Packer Machine For Cartons , Cans
750W Robot Packaging Machines Case Packer Machine For Cartons , Cans
750W Robot Packaging Machines Case Packer Machine For Cartons , Cans
750W Robot Packaging Machines Case Packer Machine For Cartons , Cans
750W Robot Packaging Machines Case Packer Machine For Cartons , Cans
750W Robot Packaging Machines Case Packer Machine For Cartons , Cans
Specifications
Brand Name :
PEIYU
Model Number :
SPC-CLA20
Certification :
CE
Place of Origin :
Shanghai,China
MOQ :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
300 Set/Sets per Year
Delivery Time :
30 days after receiving the deposit for case packing machine
Packaging Details :
Wooden case
Price :
Negotiate
Application :
Beverage, Chemical, Food, Medical
Packaging Type :
Cartons, Cans, Bottles, Bags
Voltage :
380V
Power :
3.7KW
Weight :
3000KGS
Dimension(L*W*H) :
L2350mm*W1350mm*H1800mm
Input Voltage :
380VAC 50HZ
After-sales Service :
Engineers available to service
Description

750W Robot Packaging Machines Case Packer Machine For Cartons , Cans

Features of SPC-CLA20 Case Packing Machine


* This carton packing machine is used for arranging and gripping bottles in the carton, achieving transport packaging system, functioned as core of the whole automatic packaging lines.

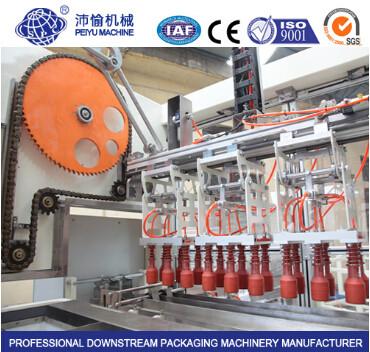

* Principles of mechanical structure and packing: The working principle of our gripping caser: drived by compressed air, using swing rod back and forth movement, bottles are automatically gripped into the carton.
* Automatic Control:This machine adopts PLC control the inverter to detect the stochastic control, which guarantees the normal operation and self protection.
* Packaging Range: Applied to all types of bottles with small cap production line.

Carton size: (30.7 * 19 * 21.6) cm we have drawn up a loaded boxes (15 bottles / box, 500ml / bottle) shall prevail. Other bottle types and carton size for special design.
* Electrical Configuration: We mainly use Mitsubishi PLC, Schneider and Panasonic inverter, Schneider low-voltage apparatus.

Technical Parameters of SPC-CLA20 Case Packing Machine

Production Efficiency 15-20cases/min
Power of the whole machine 3.7kw
Input Voltage 380VAC 50HZ
Air Source Pressure 0.5-0.8Mpa
Total Air Consumption 0.9m3/h
Work Noise <80DB


Assorted Carton Erector
SPC-K03 Series Carton Ecector

Model SPC-K03H40 SPC-K03H20 SPC-K03H10
Capacity 40cartons/min 20cartons/min 10cartons/min
Carton Storage Quantity 70pcs(700mm) 100pcs(1000mm) 50pcs(500mm)
Carton Size(mm) L280-500*W200-400*H200-400mm

L280-500*W200-400*

H90-400mm

L200-450*W150-400*

H100-350mm
Power Requirements 750W(AC380V 3F) 750W(AC380V 3F) 750W(AC380V 3F)
Air Compressing 4-5kg/cm2 4-5kg/cm2 5-6kg/cm2
Air Comsumption 450NL/min 450NL/min 150NL/min
External Sizes L3540*W1250*H1840mm L2780*W1250*H1840mm L2000*W1900*H1200mm
Machine Weight 990kgs 990kgs 350kgs
Applicable Tape Size 1 1/2", 2",2/12",3" 1 1/2", 2",2/12",3" 1 1/2", 2",2/12",3"


Assorted Carton Sealer
SPC-F05 Auto Flaps Folding&Side Belts Driven Sealer

Carton Size L200-600mm, W150-500mm, H120-500mm
Table Height min.580mm, max.780mm
Machine Size L1690mm*W830mm*H1180mm
Power 220v/380v single phase, 50/60Hz or specified by client
Pneumatic 50kg/cm²
Tape Width 48mm,60mm,75mm (alternative use)
Machine Net weight approx.180kgs

Company Information

New branch-Anhui Peiyu Packing Technology Co.,Ltd ,located at NO.2588 East Qingliu Road,Suchu Modern Industrial Park,Chuzhou Anhui Province

Our Services

Installation and commissioning

We'll send experienced technicians after the equipments arrived buyer's workshop . Our technicians 'll guide the installation and commissioning to fulfill designed capability within designed time . The seller will also offer training including:equipment structure and maintenance,machine control and operation etc .

After-sales service

The guarantee period will be 1 year after qualifying the equipment .After guarantee period , we'll provide technical support and after-sales service for life.
