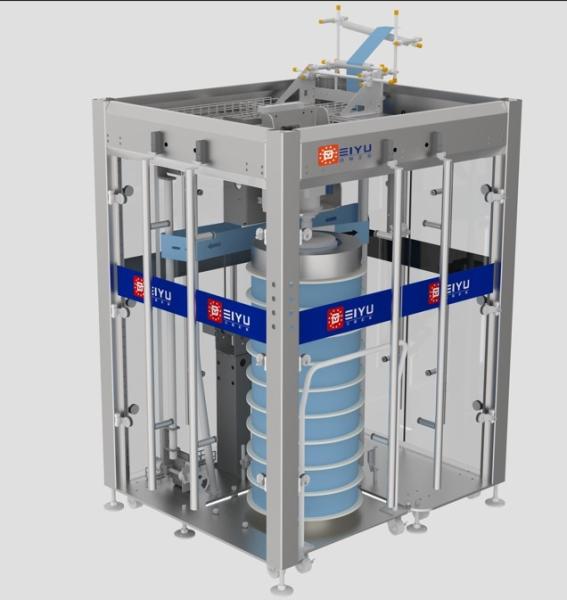

Multi-roll feeding system for sleeve labelling machines and hot melt adhesive labelling machines

Applicable bottle types: Applicable to the packaging of various bottle types, including but not limited to round, oval, square or other special-shaped bottles.

Applicable bottle materials: PET/PE/PP bottles, glass bottles, etc.

Labeling speed range: 12000BPH-60000BPH

Main component configuration:

1.Introduction to Multi-roll Feeding System Equipment:

Features and advantages of Multi-roll Feeding System Equipment:
1). The multi-roll prefabricated splicing loading trolley has two forms, left and right, which can be configured according to the actual needs of customers. The multi-roll prefabricated splicing loading trolley is simple and ingenious in structure and easy to install.
2).The multi-roll prefabricated splicing loading trolley is suitable for: label mandrel diameter 6 inches and 10 inches, and the maximum diameter of the material roll is 500mm.
3). The multi-roll prefabricated splicing loading trolley adopts servo motor control to accurately feed materials according to the actual operating status of the production line, ensuring the normal operation of the sleeve label machine. The unique large label cache can not only meet the stable operation of the sleeve label machine, but also greatly guarantee the production volume.
4). Unique design of multi-roll prefabricated splicing loading trolley:

Changing the traditional single-roll label loading and changing, the loading trolley can store at least 8 rolls of labels each time, and the Yifule project can load 10-12 rolls of labels. This design greatly reduces the frequency of replacement. There is always one loading trolley with multiple rolls of labels installed waiting. When the running labels are used up, the pre-installed loading trolley can be quickly replaced to make the normal operation of the labeling machine and improve production efficiency.

2.Application:

Multi-roll feeding system for sleeve labelling machines and hot melt adhesive labelling machines.

3.Label requirements:

Label material roll reserved for leading out label tail

Labels are connected head to tail

4.Quotation and delivery time for OEM Multi Roll Feeding System For Sleeve Hot Glue Labeling Machine:

(1). Quotation validity period: 1 month;
(2). Payment method: T/T, L/C.
(3). Customers provide the product and packaging samples required for factory trial free of charge;
(4). Delivery time: 60 working days from the receipt of customer deposit and product packaging samples.

5. Quality Assurance for OEM Multi Roll Feeding System For Sleeve Hot Glue Labeling Machine:
(1). The company guarantees that the goods provided are brand new, unused, made of the latest design and suitable materials, and meet the quality, specifications and performance specified in the technical contract in all aspects;
(2). The company guarantees that after the production line is properly guided, installed and debugged, the equipment will reach the various technical performance indicators of the product within 15 days of the entire system being put into operation;
(3). The company guarantees that within the quality assurance period specified in the contract, it will be responsible for defects, failures and damages of the production line caused by defects in the design, process, manufacturing, installation, debugging or materials provided and the quality of the seller's equipment;
(4). The equipment quality assurance period is 12 months after the acceptance of the production line. If during the quality assurance period, it is found that the quality or specifications of the equipment do not meet the contract provisions, or it is proved that the equipment is defective (including potential defects or the use of unqualified materials, etc.), the buyer has the right to propose rectification to the seller within the product quality assurance period according to the inspection certificate issued by the statutory department;
(5). The company guarantees the mechanical properties of the equipment provided, the quality of the product and the consumption indicators of the product.

6. Equipment warranty for OEM Multi Roll Feeding System For Sleeve Hot Glue Labeling Machine:
(1). After the equipment is accepted, a 12-month warranty is provided, and the control system (standard Huichuan brand) provides a 24-month warranty; during the warranty period, our company will provide users with free spare parts and timely and effective services (wearing parts are not covered by the warranty);
(2). If the equipment fails and needs to be repaired on site, our company guarantees that the maintenance personnel will rush to the customer's site within 48 hours to help the customer eliminate the fault in time (except for force majeure);
(3). After the warranty period, our company will provide users with a wide range of preferential technical support, sufficient spare parts supply and other after-sales services for life;

7. Packaging and transportation for OEM Multi Roll Feeding System For Sleeve Hot Glue Labeling Machine:
(1). Packaging method:
The packaging uses new and sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, suitable for land transportation, sea transportation and overall lifting.
(2). Transportation method: land transportation, sea transportation.
