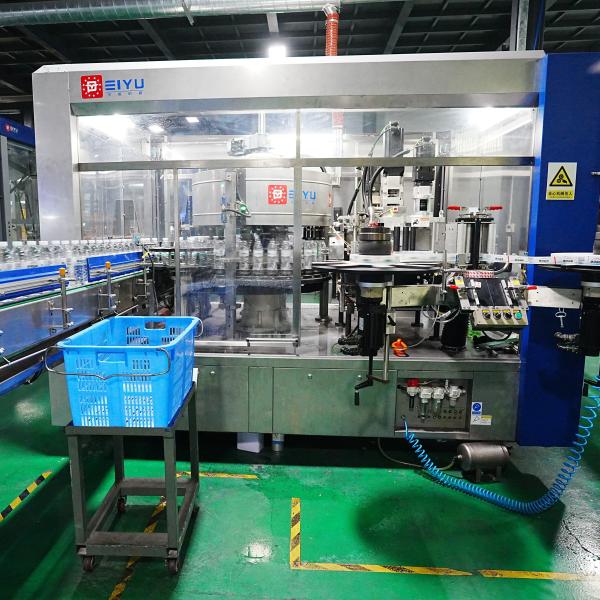

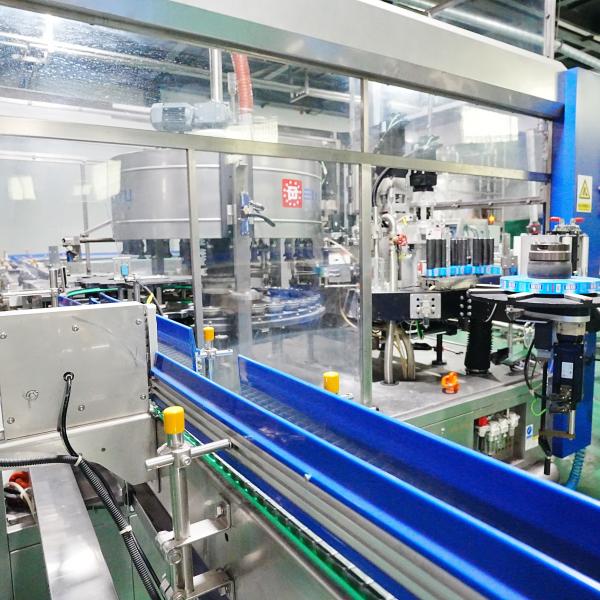

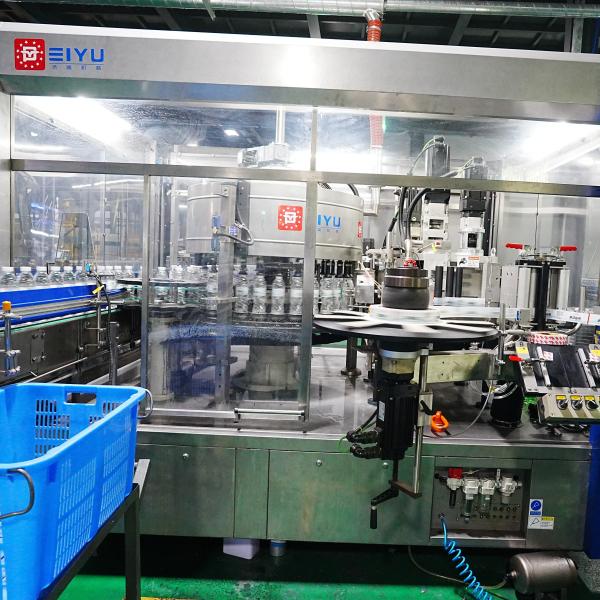

12000 bottles per hour High quality and durable linear hot melt glue labeling machine
Applicable bottle types: square bottles, flat bottles, round bottles.
Applicable bottle materials: PET/PE/PP bottles, glass bottles, metal bottles
Labeling speed range: 6000BPH-72000BPH
Main component configuration:

1.Application Scenario for linear hot melt adhesive labeling machine,linear hot melt glue labeler,linear hot melt glue labeling machine,linear hot melt glue labeling station:

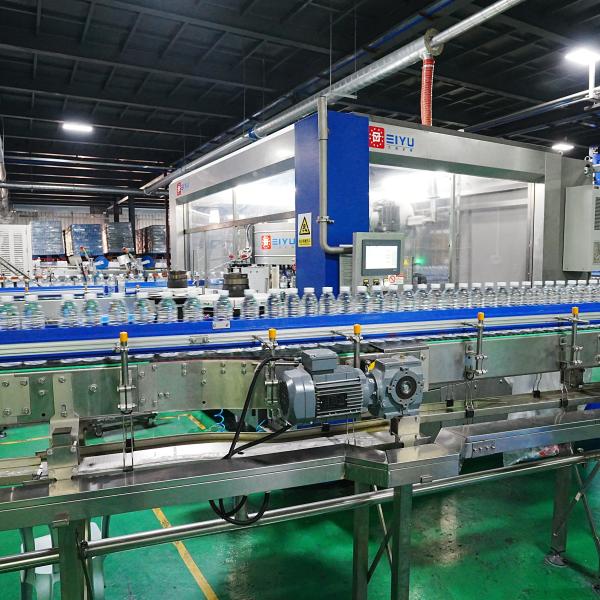

linear hot melt glue labeling machine is widely used in water production line, beverage production line, canned food production line, pet food production line, beer production line, liquid seasoning production line, etc.

2.Targeted customer needs for linear hot melt glue labeling machine:
1.Product: mineral water
2.Output: 12,000 bottles/hour (based on 500ml)
3.Packaging material: PET
4.Capacity: 500ml (round bottle); 1.5L (round bottle)

3.Equipment selection for linear hot melt glue labeling machine:
SPC-SORL-480-4P linear hot melt glue labeling machine
Labeling method: circular labeling
Glue type: hot melt glue
Applicable bottle size: ∮30-115mm
1.1).The trademark cutting blade is easy to adjust
1.2).The true vacuum suction wheel is made of high hardness material; the added wrinkle treatment process can reduce trademark friction and prevent static electricity
1.3).The work of replacing compatible parts can be completed quickly and efficiently within 10 minutes
1.4).The blade position can be adjusted accurately and conveniently using the manual operation panel
1.5).The true vacuum suction wheel and the lower part of the trademark cutting part are made of special materials that are wear-resistant and heat-resistant
1.6).When the trademark length changes, the automatic adjustment button can automatically adjust the I-MARK position

4.Label specifications for linear hot melt glue labeling machine:
1)Label material: OPP (wheel type)
2)Label specifications: refer to user requirements
3)Labeling method: linear hot melt adhesive labeling
5.Equipment description for linear hot melt glue labeling machine:
1) Wheel labeling method is adopted
2) Labels conveyed from the label roll run along the guide rail via the label supply wheel for labeling
3) When the label passes the label supply wheel, the sensor automatically detects I-MARK
4) Once the electronic eye position is confirmed, the demodulator automatically adjusts the operating speed of the label supply wheel, and then correctly specifies the label cutting position
5) After passing the label supply wheel, the label enters the shearing section for label cutting, and then the cut label is sent to the vacuum suction cup
6) After the sensor detects the label on the suction cup, the label enters the glue drum for gluing
7) After the container conveyed by the conveyor belt is properly arranged by the supply star wheel, the glued label is first labeled in the roller area, and then the perfect labeling operation is carried out by relying on the action of the synchronous belt.

6.Device Description for linear hot melt glue labeling machine:
1) Electrical Device:
Motion Controller: ELUA, Germany
Inverter: Schneider, France/Delta/Danfoss
Sensor: SICK, Germany
2) Safety Device:
① Overload protection device for the drive unit
② Abnormal state termination device for the supply star wheel
③ No bottle supply detection device
④ Overload detection device for the supply bottle
⑤ Device for stopping the operation of the rubber drum when there is no label supply
7. Main components for linear hot melt glue labeling machine:
Conveyor belt, supply star wheel, label station, vacuum suction cup, drive unit, rubber roller, synchronous belt, label cutting unit, label guide rail, frame, gas and lubrication area
8.Compatible parts for linear hot melt glue labeling machine:
Supply star wheel, vacuum suction cup, screw propeller, bottle separation star wheel, label feeding guide rail, baffle, gear guide rail, synchronous belt

9.Main technical parameters of linear hot melt glue labeling machine:

10.Quotation and delivery time for linear hot melt glue labeling machine:
(1).Quotation validity period: 1 month;
(2).Payment method: T/T, L/C.
(3).Customers provide the product and packaging samples required for factory trial free of charge;
(4).Delivery time: 60 working days from the receipt of customer deposit and product packaging samples.

11.Quality Assurance for linear hot melt glue labeling machine:
(1).The company guarantees that the goods provided are brand new, unused, made of the latest design and suitable materials, and meet the quality, specifications and performance specified in the technical contract in all aspects;
(2).The company guarantees that after the production line is properly guided, installed and debugged, the equipment will reach the various technical performance indicators of the product within 15 days of the entire system being put into operation;
(3).The company guarantees that within the quality assurance period specified in the contract, it will be responsible for defects, failures and damages of the production line caused by defects in the design, process, manufacturing, installation, debugging or materials provided and the quality of the seller's equipment;
(4).The equipment quality assurance period is 12 months after the acceptance of the production line. If during the quality assurance period, it is found that the quality or specifications of the equipment do not meet the contract provisions, or it is proved that the equipment is defective (including potential defects or the use of unqualified materials, etc.), the buyer has the right to propose rectification to the seller within the product quality assurance period according to the inspection certificate issued by the statutory department;
(5).The company guarantees the mechanical properties of the equipment provided, the quality of the product and the consumption indicators of the product.

12.Equipment warranty for linear hot melt glue labeling machine:
(1).After the equipment is accepted, a 12-month warranty is provided, and the control system (standard Huichuan brand) provides a 24-month warranty; during the warranty period, our company will provide users with free spare parts and timely and effective services (wearing parts are not covered by the warranty);
(2).If the equipment fails and needs to be repaired on site, our company guarantees that the maintenance personnel will rush to the customer's site within 48 hours to help the customer eliminate the fault in time (except for force majeure);
(3).After the warranty period, our company will provide users with a wide range of preferential technical support, sufficient spare parts supply and other after-sales services for life;
13.Packaging and transportation for linear hot melt glue labeling machine:
(1).Packaging method:
The packaging uses new and sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, suitable for land transportation, sea transportation and overall lifting.
(2).Transportation method: land transportation, sea transportation.
