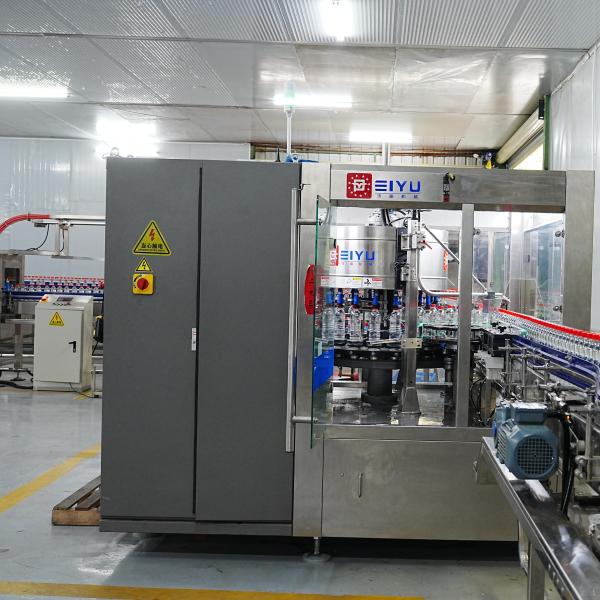

Workshop test of the rotary OPP hot glue labeling machine customized by Qatari customers

Applicable bottle types: square bottles, flat bottles, round bottles.

Applicable bottle materials: PET/PE/PP bottles, glass bottles, metal bottles

Labeling speed range: 6000BPH-72000BPH

Different names for rotary OPP hot glue labeling machine:

Hot melt adhesive labeling machine
Hot melt glue labeler
Hot melt glue labeling machine
Hot melt glue labeling station
Linear hot melt glue labeling machine
Modular self-adhesive and hot melt glue labeler
Modular self-adhesive and hot melt glue labeling machine
Combined labeling machine
Labeler (Blowing-Labeling-Filling-Capping Combi-Block Series)
BOPP Hot Melt Labeling Machine
Linear Hot Melt Labeling
OPP Hot Melt Labeling Machine
Linear OPP Labeling Machine
OPP Hot Melt Labeler
OPP Labeling Machine
OPP Hot Glue Labeling Machine
Rotary Hot Glue Labeler
OPP BOPP Film Hot Melt Glue Labeling Machine
Industrial Hot Glue Labeling Machine
Digital Label Machine Bottles
Hot glue labeler

1. Advanced design structure for the rotary OPP hot glue labeling machine customized by Qatari customers:
1) This machine is suitable for the pasting of continuous roll labels. It adopts the local gluing method, with low glue consumption and low operating cost.
2) Due to the high design precision, strict processing requirements and meticulous assembly, the machine has good running stability.
3) Rotary design, compact structure, beautiful shape and standardized materials.
4) The labeling station is the heart of the machine. The well-designed labeling station can complete the constant tension conveying of trademarks; automatic deviation correction of trademarks; internal matching of labeling speed (the composite speed of machine revolution speed and bottle rotation speed); no bottle no label delivery function; no label no gluing function; normal labeling before and after bottle type change;
5) The main machine adopts the upper cam design, which is simple to change the bottle type; the machine head adopts the pneumatic clamping method, and the main machine is easy to adjust.
6) The automatic control adopts PLC overall control, which comprehensively controls the servo system, frequency conversion system, constant temperature system and other points that need to be controlled.
7) The safety protection design is complete, and multi-point protection devices and fault sound and light alarms ensure the safety of man and machine.
8) The centralized lubrication system makes it easier to lubricate the moving parts of the machine, runs more normally, and guarantees the machine life. The machine maintenance and repair are simple and convenient.
9) The specially designed trademark suction structure can ensure that the trademark is always sucked on the suction block.
10) The trademark traction mechanism driven by the servo motor, the photoelectric color mark detection and the compensation structure of the trademark cutting can ensure that the trademark is cut off in time, accurately and neatly.
11) The servo screw propulsion mechanism makes the bottle feeding more stable and the high-speed bottle feeding more smooth.
12) The double material tray structure ensures that the user has the minimum time to change the film material, making the effective production time longer and the machine's production efficiency higher.
13) The special film material constant tension detection and feedback control system ensure that the high labeling quality can be achieved for ordinary film materials.
14) The automatic label receiving mechanism can automatically receive the label online without stopping the machine to improve production efficiency.
15) The automatic gluing system of the labeling drum can adjust the gluing time of the automatic gluing system according to actual production needs, improve the surface cleanliness of the labeling drum, improve the stability of label transfer and make the overall labeling more stable.

2.Overview for the rotary OPP hot glue labeling machine customized by Qatari customers:
Overview: The labeling machine is an important and key equipment in the post-packaging line. The beautifully designed trademark passes through the machine to complete the packaging of a single bottle. The hot melt adhesive labeling machine is an advanced model developed in recent years. It has the advantages of high design accuracy, rotary design, compact structure, beautiful shape, strict processing requirements, meticulous assembly, good high-speed operation stability, low glue consumption, and low bottle and trademark operation costs.

3.Main component configuration for the rotary OPP hot glue labeling machine customized by Qatari customers:

4.Main technical parameters for the rotary OPP hot glue labeling machine customized by Qatari customers:

5. Equipment principle and main functions for the rotary OPP hot glue labeling machine customized by Qatari customers:
Peiyu SPCTTB series labeling machines are suitable for various specifications of trademarks and speed requirements according to different customer requirements, and the production speed can be adjusted steplessly.
According to the actual requirements of the customer's bottle type, the labeling drum label feeding line speed and the bottle outer diameter composite line speed (the vector sum of the large turntable revolution line speed and the bottle rotation line speed) are completely equal between high, medium and low speeds, large, small and bottles, to ensure the labeling effect.
The label feeding servo motor can achieve the function of no bottle no label feeding and no bottle no glue application at low speed. When the production line ensures that the bottle enters the machine intermittently, the label station can smoothly switch between label feeding and no label feeding, and the label cutting accuracy is normal.
If an abnormal situation occurs during the operation of the machine, the automatic control system will automatically alarm, automatically slow down and stop or stop immediately. In case of emergency, the machine can be manually stopped by pressing the emergency stop button.

6. Equipment composition for the rotary OPP hot glue labeling machine customized by Qatari customers:
1) Bottle conveying part, including conveying chain, servo spiral conveyor, bottle inlet dial, large turntable, bottle outlet dial, servo bottle drag. The main servo motor drives the large turntable, and the large turntable drives other rotations.
2) Label conveying part, namely label station, includes 2 label trays, constant tension control and execution part, servo label transfer and servo label gluing part (servo label cutting drum, servo labeling drum. Servo gluing part includes glue pump, servo gluing and glue circulation system), label servo precise label delivery, automatic label connection, labeling drum automatic glue wiping system, automatic label connection mechanism
3) The whole machine motor includes: main servo motor, servo spiral conveyor motor, height adjustment motor, vacuum pump, servo gluing motor, servo label cutting motor, glue pump, label delivery servo motor, bottle rotation servo motor, servo tray motor.

7.Quotation and delivery time for the rotary OPP hot glue labeling machine customized by Qatari customers:
(1). Quotation validity period: 1 month;
(2). Payment method: T/T, L/C.
(3). Customers provide the product and packaging samples required for factory trial free of charge;
(4). Delivery time: 60 working days from the receipt of customer deposit and product packaging samples.

8.Quality Assurance for the rotary OPP hot glue labeling machine customized by Qatari customers:
(1). The company guarantees that the goods provided are brand new, unused, made of the latest design and suitable materials, and meet the quality, specifications and performance specified in the technical contract in all aspects;
(2). The company guarantees that after the production line is properly guided, installed and debugged, the equipment will reach the various technical performance indicators of the product within 15 days of the entire system being put into operation;
(3). The company guarantees that within the quality assurance period specified in the contract, it will be responsible for defects, failures and damages of the production line caused by defects in the design, process, manufacturing, installation, debugging or materials provided and the quality of the seller's equipment;
(4). The equipment quality assurance period is 12 months after the acceptance of the production line. If during the quality assurance period, it is found that the quality or specifications of the equipment do not meet the contract provisions, or it is proved that the equipment is defective (including potential defects or the use of unqualified materials, etc.), the buyer has the right to propose rectification to the seller within the product quality assurance period according to the inspection certificate issued by the statutory department;
(5). The company guarantees the mechanical properties of the equipment provided, the quality of the product and the consumption indicators of the product.

9. Equipment warranty for the rotary OPP hot glue labeling machine customized by Qatari customers:
(1). After the equipment is accepted, a 12-month warranty is provided, and the control system (standard Huichuan brand) provides a 24-month warranty; during the warranty period, our company will provide users with free spare parts and timely and effective services (wearing parts are not covered by the warranty);
(2). If the equipment fails and needs to be repaired on site, our company guarantees that the maintenance personnel will rush to the customer's site within 48 hours to help the customer eliminate the fault in time (except for force majeure);
(3). After the warranty period, our company will provide users with a wide range of preferential technical support, sufficient spare parts supply and other after-sales services for life;

10. Packaging and transportation for the rotary OPP hot glue labeling machine customized by Qatari customers:
(1). Packaging method:
The packaging uses new and sturdy special packaging boxes or fixed frames, which are suitable for long-distance transportation, moisture-proof, rust-proof, shock-proof, suitable for land transportation, sea transportation and overall lifting.
(2). Transportation method: land transportation, sea transportation.

11.Equipment plan for the rotary OPP hot glue labeling machine customized by Qatari customers:
