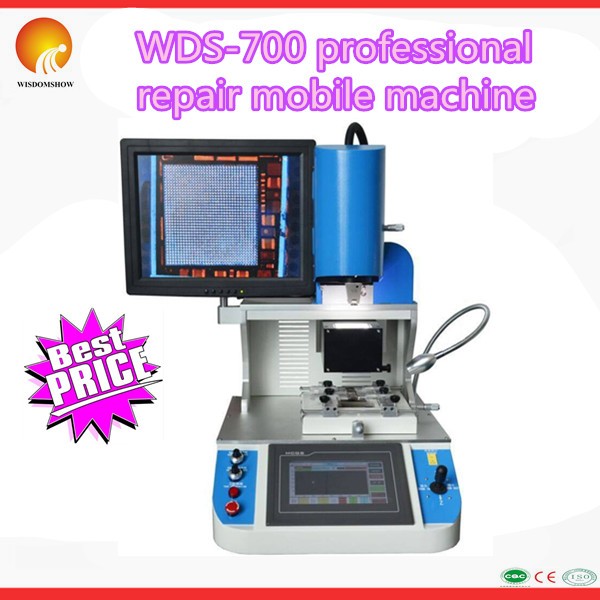

OEM accept WDS-700 auto mobile phone repair software bga rework station from WDS factory
OEM accept WDS-700 auto mobile phone repair software bga rework station from WDS factory
Specifications
Brand Name :
wisdomshow
Model Number :
wds 700
Certification :
rosh ce
Place of Origin :
shenzhen
MOQ :
1
Price :
3200usd
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1
Delivery Time :
2-5days after get full payment
Packaging Details :
wooden box
Description

Mobile ic repair tools WDS 700 equipment infrared bga rework station for cell phone mobile

Contact: jane yang
Tel: 0086 0755 27336219
Skype: jane.yang20
What's app & Wechat: +86 13043470536 (Mob)

WDS-700 Video : https://www.youtube.com/watch?v=Gzw4uKUi1f4&feature=share

OEM accept WDS-700 auto mobile phone repair software bga rework station from WDS factory

Our BGA Rework Station/ BGA reballing station are widely used to replace and repair the BGA chip in laptop, mobile phone, xbox360,ps3,etc.
The main user is repairing shops and factory to provide the after-sales service and rework.

How to separate BGA chip from motherboard?
How to replace a new BGA chip?

Repair steps:
1) Separate the BGA chip from mother board –we called desoldering
2) Clean Pad
3) Reballing or replace a new BGA chip directly
4) Alignment/Positioning – Depend on experience ,silk frame ,optical camera
5) replace a new BGA chip - we called Soldering

Product Description

Parameter of WDS-700 infrared bga rework station :

Place of Origin Guangdong , China
Brand Name Wisdomshow / WDS
Moed Number WDS-700 mobile phone repairing machines
Superior function Soldering and desoldering BGA Chip/Mini IC

More details Parameter of WDS-700 infrared bga rework station

1 Superior function Auto soldering desoldering mounting bga /IC
2 Power supply AC 220V±10% 50/60Hz
3 Total power Max 2500W
4 Heater power Upper temp.zone 1200W,Down temp.zone 1200W
5 Electrical material Driving motor+PLC smart temp.controller+color touch screen
6 Temperature controlling (high precision K-sensor)(Closed Loop),independent temp.controller,the precision can reach ±1℃
7 Locating way V shape slot,PCB support jigs can adjust
8 PCB size Max 140×160mm Min 5×5 mm
9 Applicable chips Max 80×80mm Min 1×1 mm
10 Overall dimension L450×W470×H670mm
11 Temperature Interface 1 pcs
12 Weight of machine 30KG
13 Color Blue+White

OEM accept WDS-700 auto mobile phone repair software bga rework station from WDS factoryOEM accept WDS-700 auto mobile phone repair software bga rework station from WDS factory

Full Specification of WDS-700 infrared bga rework station

»»» Independent 2 heating zones temperature control system

1.The upper and lower heating zone,temperature precision control within ±1℃. which can heat up at the same time from the top of he component to the bottom of the PCB; 8 segment temperature control independently.mobile phone repairing machines

2.Hot air district heating for BGA and PCB at the same time,the upper or lower temperature zones could be used alone and combine freely the energy of up and lower heating element.OEM accept WDS-700 auto mobile phone repair software bga rework station from WDS factory

OEM accept WDS-700 auto mobile phone repair software bga rework station from WDS factory

3.Adopted high precision K-type thermocouple close-loop control and PID parameter self-setting system;

4 temperature curves can be displayed with instant curve analysis function and multi-group user data can be saved;temperature can be tested precisely through external measurement interface,curves can be analysed,set and correct on the touch screen at any time.

»»» Precision optical alignment system

WDS-700 Using high definition and adjustable CCD color optical alignment system,beam split, amplification, lessening, fine adjustment and auto focus with the function that automatic color aberration resolution and brightness adjustment,adjustable image contrast; equipped with 15 ” high definition LCD monitor.mobile phone repairing machines

»»» Multi-functional and humanized operation system

1.Adopting the HD touch human-machine interface;upper heating head and mounting head designed 2 in 1;providing many kinds of titanium alloy BGA tuyere can be rotated in 360 degree for easy installation and replacement.

2.X,Y and R angle adopted micrometer fine-tuning,accuracy locating,precision can reach ±0.01mm.

OEM accept WDS-700 auto mobile phone repair software bga rework station from WDS factory

»»» Superior safety protection function

WDS-700 With the alarm function, after the BGA welding the machine can alarm by itself.In the case of temperature abuse, the circuit can power off automatically with the double over-temperature protection.Temperature parameter having password protection to prevent any modification.mobile phone repairing machines


OEM accept WDS-700 auto mobile phone repair software bga rework station from WDS factory

Packaging & Shipping

Packing & Shipping of WDS-700 infrared bga rework station

1, Standard Export Wooden cases

2, Delivery in 2 workdays after payment confirm;

3, Shipping by TNT,DHL,FEDEX , or by air or by sea

4, Loading port: Shenzhen or Hongkong.

OEM accept WDS-700 auto mobile phone repair software bga rework station from WDS factory

Our Services
1. Your inquiry will be replied in 24 hours ;
2. Offer free spare parts and service within one year of warranty,but all the other relative cost should be on the buyer's account;
3. Technology Support : Provide Demo operation video for training ;If you have time,welcome to our company,will arrange engineers to show you the operation;
4. Good and professional after-sales service;
5. Give great discount to AGENCY to ensure agents profit.

OEM accept WDS-700 auto mobile phone repair software bga rework station from WDS factory

Company Information

Why WDS?

1. We are the Manufactuer = own factory+ machine design+Sheet metal produced by ourself +spray the powder+ strong assemble the machine team + packaging+free training;

2. Logo/Brand:Customer's designs and logos are welcome,we can silk-print your own logo company;

3. HUAWEI,TCL,ZTE,MEIZU,KONKA,LENOVO,FOXCONN vendor;

4. Have good market in Korea,Japan,NorthAfrica,Vietnam,Brazil,Turkey,India,Mexico and South Asia,The Mid-East and European countries;

5. 100% NEW from WDS factory;

6. Over 20 R&D engineers, with 10 year experience;

7. Over 100000 Global User;

8. All models approved CE ISO9001;

9. 100% QC inspect before shipment;

10. High quality & competitive price.

OEM accept WDS-700 auto mobile phone repair software bga rework station from WDS factory

Buyer Feedback
Our Customers' Voice:

1.Hi mate, your best price and high purity product is so competitive in my country , this let me make much profit , my customers are really like it . cooperate with you is so wonderful ! thank you ! ---------Richard---Turkey

2.i have received my products , your packing is do discreet and perfect , it really amazed me .i will order more from you as soon as possible. thanks a lot. -----------Robet--Australia

3.i have cooperated with you for many times , your product quality is so great , that is why i still buy the products from you . thank you . ------------- Corentin ---Brazil

OEM accept WDS-700 auto mobile phone repair software bga rework station from WDS factory

BGA Accessories:
OEM accept WDS-700 auto mobile phone repair software bga rework station from WDS factory

If any question please send INQUIRY or CHAT with us ,

we will pleasure to service you !
