1R1G1B Full Color Electronic Led Curtain Display SMD3528 Lamp Flexible Design
1R1G1B Full Color Electronic Led Curtain Display SMD3528 Lamp Flexible Design
1R1G1B Full Color Electronic Led Curtain Display SMD3528 Lamp Flexible Design
1R1G1B Full Color Electronic Led Curtain Display SMD3528 Lamp Flexible Design
1R1G1B Full Color Electronic Led Curtain Display SMD3528 Lamp Flexible Design
1R1G1B Full Color Electronic Led Curtain Display SMD3528 Lamp Flexible Design
1R1G1B Full Color Electronic Led Curtain Display SMD3528 Lamp Flexible Design
1R1G1B Full Color Electronic Led Curtain Display SMD3528 Lamp Flexible Design
1R1G1B Full Color Electronic Led Curtain Display SMD3528 Lamp Flexible Design
1R1G1B Full Color Electronic Led Curtain Display SMD3528 Lamp Flexible Design
Specifications
Place of Origin :
Shenzhen, China
Brand Name :
Meltonled
Certification :
CE, RoHS, ISO,FCC,UL
Model Number :
P10-F
MOQ :
1pc/1sqm
Price :
1-100000usd
Packaging Details :
Anti-shaking wooden case/flight case/carton
Delivery Time :
8-25 days
Payment Terms :
35% T/T as prepayment,65% T/T as balance at factory
Supply Ability :
>500sqm/month
Delivery term :
Ex-work/FOB/CIF/DDU
Description

1R1G1B Full Color Electronic Led Curtain Display

Specifications

-Special design
-SMD3528 lamp.
-With flexible design, it is very easy to install.
-Module material: ABS plastic and Aluminum.

1. Features and Specifications:

1),LED video Curtain display with CE , RoHS,FCC.

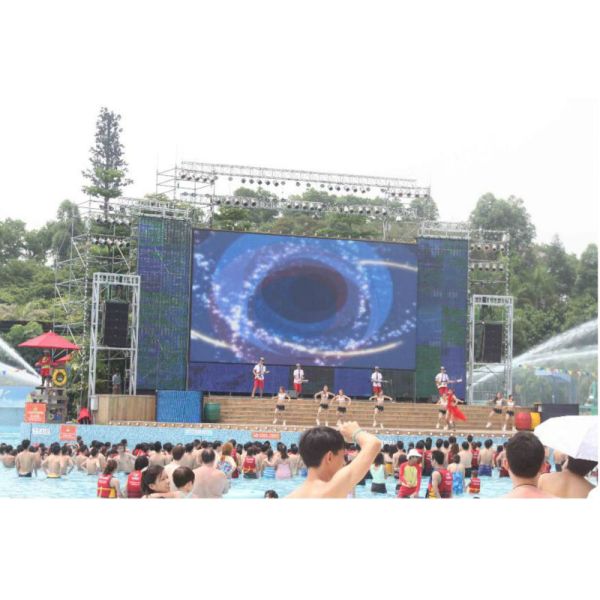

2),High brightness and support brightness automatically adjustment,Mainly used stage show.

3),Long lifespan, can reach more than 50,000 hours;

4),Easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED curtain display system;

5),Rich LED curtain display engineering experience both in domestic and international market.

2. Technical parameters:

Technical specification

Product model

OP-FSW-P10

1R1G1B Full Color Electronic Led Curtain Display SMD3528 Lamp Flexible Design

Usage

Outdoor

LED type

SMD 3528

Pixel Pitch (PH)

10mm

Module resolution

32*128

Brightness(CD/M2 )

≥5000

Transparency

%8

Refresh rate

≥4000

Pixel density(dot/ M2 )

10000

Grey level

65536

Working voltage

DC24V

Power consumption(W)

350W(MAX)

Viewing angel

130°horizontal/ vertical

Operating temperature(°C)

-30~+50°C

Control mode

Synchronic

LED lifetime

50000

IP rating

IP66

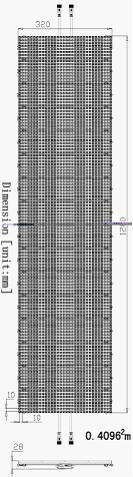

Size(L*W*H)(mm)

1280*320*28mm

Weight(KG)

5.6kg

Dimension

0.4096 M2

Certificate

CE RoHS

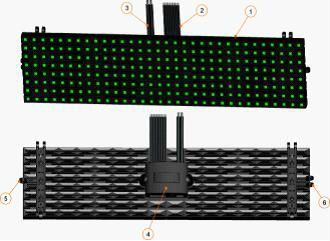

Mechanical specification

1

Eight linked-lamp strips

1R1G1B Full Color Electronic Led Curtain Display SMD3528 Lamp Flexible Design

2

10 pins signal cable

3

2 pins DC24V power cable

4

Small power case

5

Left chain (dual)

6

Right chain (single)

A module is made of 16 small power cases;

A eight linked-lamp strip in every small power case;

32 LED pixels in every lamp strip;

The linkup between left chain and right chain by

aluminum alloy at two side of the module.

1R1G1B Full Color Electronic Led Curtain Display SMD3528 Lamp Flexible Design 1R1G1B Full Color Electronic Led Curtain Display SMD3528 Lamp Flexible Design 1R1G1B Full Color Electronic Led Curtain Display SMD3528 Lamp Flexible Design

1R1G1B Full Color Electronic Led Curtain Display SMD3528 Lamp Flexible Design

Competitive Advantage:

1, Good quality;

2, Good price;

3, Good 24hours service;

4, Promote delivery;

5, Energy-saving;

6, Small order accepted.
