Specifications
Place of Origin :
Shenzhen, China
Brand Name :
Meltonled
Certification :
CE, RoHS, ISO,FCC,UL
Model Number :
P16-686
MOQ :
1pc/1sqm
Price :
1-100000usd
Packaging Details :
Anti-shaking wooden case/flight case/carton
Delivery Time :
8-25 days
Payment Terms :
35% T/T as prepayment,65% T/T as balance at factory, MoneyGram, Western Union
Supply Ability :
>500sqm/month
Delivery term :
Ex-work/FOB/CIF/DDU
Product Name :
Outdoor Advertising Video LED Digital Billboard P16mm 1R1GB DIP346 Epistar chip
Feature :
Waterproof IP65
Tube Chip Color :
Full Color
Pixel Pitch :
16mm
Brightness Adjusted :
100 grade
Pixel L ED :
546
Description

Outdoor Advertising Video LED Digital Billboard P16mm 1R1GB DIP346 Epistar chip

Melton--Outdoor led display spec.pdf

Specifications:

duct model number Mled-PH16-399
1.Pixel
Pixel L ED 346
Pixel Configuration 1R, 1G , 1B
Wave length ( nm ) R: 800-1000 , G:2040-2450, B: 360-430
Pixels Pitch ( mm ) 16
2 . Module
Module Size ( mm ) 256 * 256 * 20
Module Pixels (dot) 16 * 16
3.Unit box
Module quantities in a unit box 4 (L) * 4 ( H )
Unit box size ( mm ) 　
1024 (L) * 1024 (H) * 120
Unit box Pixels ( dot ) 64 * 64
Unit box material Aluminum or Iron
Unit box weight (kg) Aluminum : 42 or Iron : 55
4.Packaging
Packing Way Two unit boxes packed into one
Packing box material Wooden case or Flight box
Packing box size (mm) 1150 * 950 * 480
5.electricity parameter
Pixel density (dots/ m 2 ) 3906

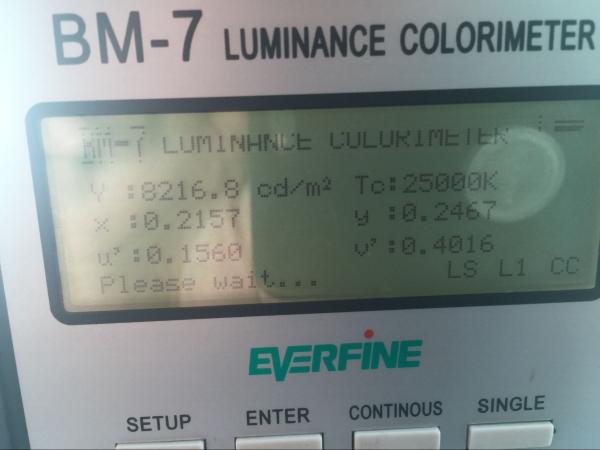

White Balance Brightness ( cd/m 2 ) ≥ 8000
Color temperature ( K ) 5000-9500 (choice by user)
Brightness Adjusted 100 grade by software or by Auto-optic induced.
View Angel Horizontal 120 ° ; Vertical 120 °
Best viewing distance ( m ) 16-150
Communication distance ( m ) Internet Wire : 120 Fiber Cable : 1000
Screen work Method Static
LED driving method Constant driving current
Gray Grades 16384 levels for each color
Display Color 4 , 398 , 046 , 511 , 104
Refresh Frequency ( Hz ) ≥ 3840
Picture display method Dots to dots display synchronized with CRT
Signal interface DVI
Input signal Video : PAL/NTSC optioned . VGA, Svideo, DVD, TV
Display format 800 * 600 , 1024 * 768 , 1280 * 1024
Software Support windows series system
Protection grades IP 65
Working temperature (ºC ) -40 +60
Humidity ( RH ) Up to 95
Stored temperature ( ºC) -30 +70
Screen Lifetime(hours) ≥100, 000
Out of controlled dots ≤3/10, 000 (Out of controlled dots means the pixels of which the brightness,
and the wave length are both >10% depart to the normal one)
Whole display flatnes Less than 1mm Juncture
Maintance way Back-maintained or front-maintained,
modules displaced
Switch power supply

Switch power supply (include CE/GS or UL/CSA certificate)

110V/60HZ , 220V/50HZ

Power Consumption ( w /m 2 ) Max : 700 , Average: ≥ 350

Outdoor advertising video led digital Billboard:
1.RoHS and CE,UL,CCC,ISO
2.Waterproof.
3.High brightness.
4.Competitive price high quality

P16 2R1G1B full color outdoor led display board for advertising,higher brightness 10000nits

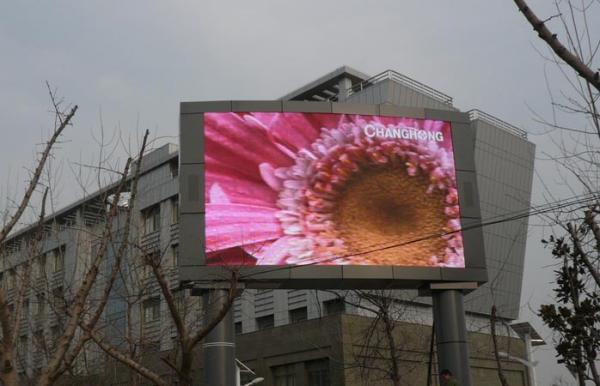

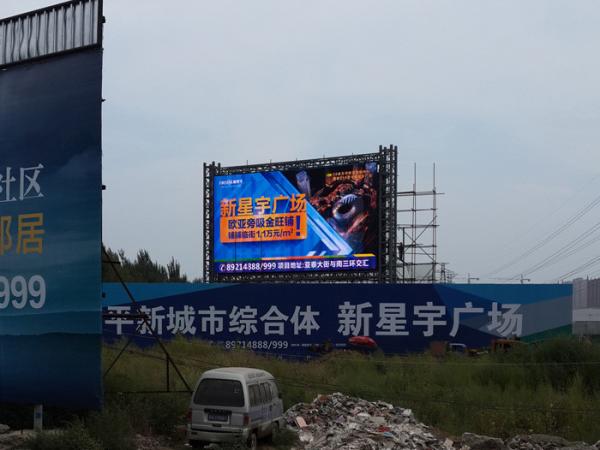

1.Applications: outdoor full color digital billboard are very popular in LED display advertising field. This type digital billboards are widely used Outdoor plaza,Outdoor building,stadium,shopping mall,cross road,highway, airport etc;

2.Features :

Vivid and exact picture, minimum noise, advanced test equipment, support any pc operationsystem and play a variety of information like video, word, flash, music, clock, graph etc. LED billboard Cabinet design for easy install and dismantle

Competitive Advantage:

1, Good quality;

2, Good price;

3, Good 24hours service;

4, Promote delivery;

5, Energy-saving;

6, Small order accepted.
