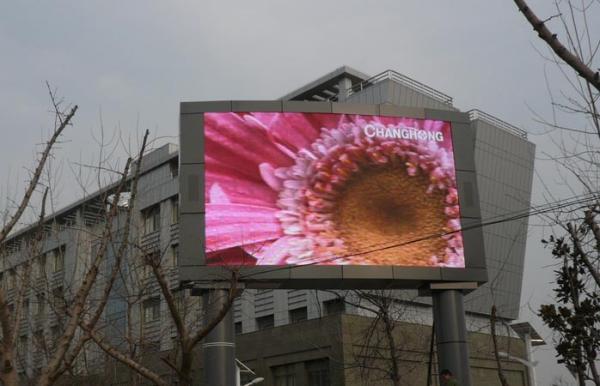

Wall Mounted P10 Outdoor Full Color Led Display For Commercial Advertising
Wall Mounted P10 Outdoor Full Color Led Display For Commercial Advertising
Wall Mounted P10 Outdoor Full Color Led Display For Commercial Advertising
Wall Mounted P10 Outdoor Full Color Led Display For Commercial Advertising
Wall Mounted P10 Outdoor Full Color Led Display For Commercial Advertising
Wall Mounted P10 Outdoor Full Color Led Display For Commercial Advertising
Wall Mounted P10 Outdoor Full Color Led Display For Commercial Advertising
Wall Mounted P10 Outdoor Full Color Led Display For Commercial Advertising
Wall Mounted P10 Outdoor Full Color Led Display For Commercial Advertising
Wall Mounted P10 Outdoor Full Color Led Display For Commercial Advertising
Wall Mounted P10 Outdoor Full Color Led Display For Commercial Advertising
Wall Mounted P10 Outdoor Full Color Led Display For Commercial Advertising
Specifications
Place of Origin :
Shenzhen, China
Brand Name :
Meltonled
Certification :
CE, RoHS, ISO,FCC,UL
Model Number :
P10-F02
MOQ :
1pc/1sqm
Price :
1-100000usd
Packaging Details :
Anti-shaking wooden case/flight case/carton
Delivery Time :
8-25 days
Payment Terms :
35% T/T as prepayment,65% T/T as balance at factory
Supply Ability :
>500sqm/month
Delivery term :
Ex-work/FOB/CIF/DDU
Product Name :
Outdoor Full Color Led Display
Usage :
Outdoor
Tube Chip Color :
Full Color
Pixel Configeration :
1R,1G,1B
Pixel Density :
10000 dot / m2
Resolution(W*H) :
16dots*16dots
Description

Wall Mounted P10 Outdoor Full Color Led Display For Commercial Advertising

Melton--Outdoor led display spec.pdf

Specifications

1. CE, RoHS,FCC certificate
2. IP65 waterproof
3. High contrast
4. 2 years warranty time

P8 OUTDOOR P8 SMD 3IN1 TECHNICAL PARAMETERS

Unit Module

 Item Parameter
Model Number P8-4S
Module size 256mm*128mm
Pixel pitch 8mm
Pixels Density 15625/m2
Pixel configuration 1R1G1B
LED Package mode SMD3535
Pixel resolution 32dots(W)*16 dots(H)
Max Power 30W
Module thickness 17.05mm
Weight 0.343kg
Drive type Constant drive
Scan mode 1/4 1/4scan
Port type HUB75
Brightness of white balance 6500cd/m2

LED

Cabinet

 Dimension 768mm*768mm
Monomer Module Number 18pcs
Power supply 5V/40A*3 pcs
Thermal discharge fan 2pcs
Pixel per cabinet 96mm*96mm
Best viewing distance 8M40M
Best viewing angle 160(W) 120(H)
Temperature

storage:-35+85

working:-20+50
Relative humidity 10%-95%
Thickness 85mm

Power

 Working voltage AC220V10%
Average Power consumption <360W/
Max.Power consumption <900W/
Current <20mA(single LED)

Control system

 CPU Pentium4 or above P4
Operation system WIN98/2000/NT/XP/WIN7
Control method Synchronization

Main technical

parameter

 Driving device Constant drive IC
Refresh frequency >1800HZ
/ Grey scale/colors

16384,16.7M

16384gray level/16.7M colors
MTBF >9000hours
Power switch Automatic switch
Display Mode 800*600/1024*768


Wall Mounted P10 Outdoor Full Color Led Display For Commercial Advertising

Packaging & Shipping

Corrugated carton Package:

This is also for led module,40pcs/carton,Carton Size:66x36x36cm

Plywood case package:

In usually, 4pcs cabinet pack into one case,this is for indoor fixed installation led display

3pcs cabinet pack into one case,this is for outdoor fixed installation led display

Both for shopping by air and shipping by sea

Flight case package:

9pcs cabinet pack into one case,this is for rental led display use with convenient wheels and can move anytime,for long time use.

Competitive Advantage:

1, Good quality;

2, Good price;

3, Good 24hours service.
