Specifications
Place of Origin :
Shenzhen, China
Brand Name :
Meltonled
Certification :
CE, RoHS, ISO,FCC,UL
Model Number :
P5-F-001
MOQ :
1pc/1sqm
Price :
660usd/m2
Packaging Details :
Anti-shaking wooden case/flight case/carton
Delivery Time :
15-25 days
Payment Terms :
35% T/T as prepayment,65% T/T as balance at factory, Western Union, MoneyGram
Supply Ability :
>500sqm/month
Delivery term :
Ex-work/FOB/CIF/DDU
Product Name :
Outdoor Full Color Led Display
Tube Chip Color :
Full Color
Module Size(W * H) :
320mm*160mm
Pixel Pitch :
5mm
Resolution(W*H) :
192dots*192dots
Module Qty :
18pcs
Brightness :
>6500nits/m2
Description

Advertising Video Media facade Outdoor Full Color Led Display With Fixed Installation

Specification

Module Parameter
Pixel Pitch 5mm
Pixel Configuration SMD2727
Density 40,000 pixels/sqm
Module Resolution 32pixel(L) * 64pixel(H)
Module Dimension 320mm(L) * 160mm(H) * 25mm(D)
Driving Mode Constant current, 1/8 duty
Module Mask Pure black mask---high contrast screen
LED Cabinet
Module Quantity in a Cabinet 3(L) * 6(H)
Cabinet Dimension 960(L)* 960(H)* 150(D)mm
Cabinet Resolution 192(L) * 192(H)
Cabinet Material Steel
Cabinet Weight ≈40KG
Electricity Parameter
Optical Ratings
Brightness ≥6,500 cd/sqm
Viewing Angle 120°(Horizontal); 120°(Vertical)
Best Viewing Distance ≥10m
Gray Grade 14 bits
Display Color 4.4 trillion Colors
Brightness Adjustment 100 grades by software or automatically by sensor
Operation Power AC100-240V 50-60Hz Switchable
Max. Power Consumption 1200 W/sqm
Avg. Power Consumption 500 W/sqm
Control System
Frame Frequency ≥60Hz
Refresh Frequency ≥1,920Hz
Input Signal Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance

100m(Ethernet cable);

20KM(optical fiber cable)
Support VGA Mode 800*600, 1024*768, 1280*1024, 1600*1200
Color Temperature 5000—9300 adjustable
Brightness Correction Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature -20~+60 ºC
Storage Temperature -30~+70 ºC
Working Humidity 10%~90% RH
Lifetime 100,000 hours
MTBF 5000 hours
Continuous Working Time ≥72 hours
Protection Grade IP65(front), IP54(rear)
Out-of-Control Pixel Rate ≤0.01%

Advertising Video Media facade Outdoor Full Color Led Display With Fixed Installation

Our Services

1. Provide technical support about how to use the control software.

2. Configurate the screen for free charge, make sure the led display working and save the configuration files for spare use, such as .RCFG or .RCG files and so on.

3. Provide the remote help when you need any help of using the LED display.

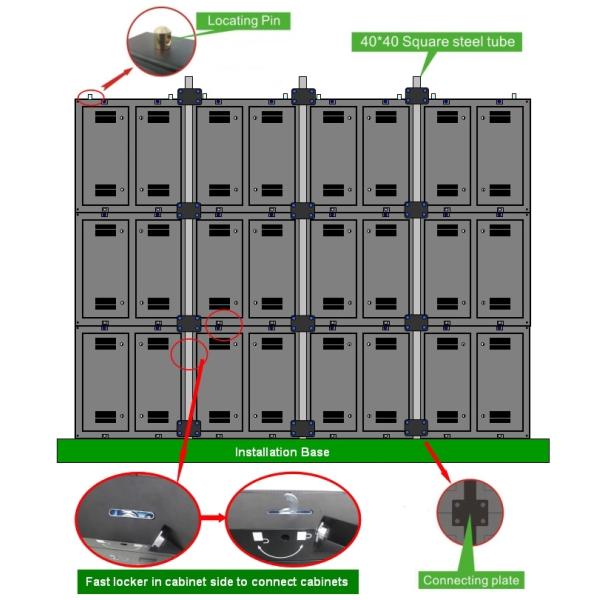

4. Provide the installation structure drawing.

5. Enough spare modules , cards, power supply for replacing them when something wrong with them.

6. Send back the broken parts to us for free repair within 2 years, send back the broken parts to us for repair after 2 years and pay the repair fee.
