Product model number

Mled-PH16-1

1.Pixel

Pixel L ED

546

Pixel Configuration

2 R, 1G , 1B

Wave length ( nm )

R: 626-628 , G: 518-520 , B: 466-468

Pixels Pitch ( mm )

16

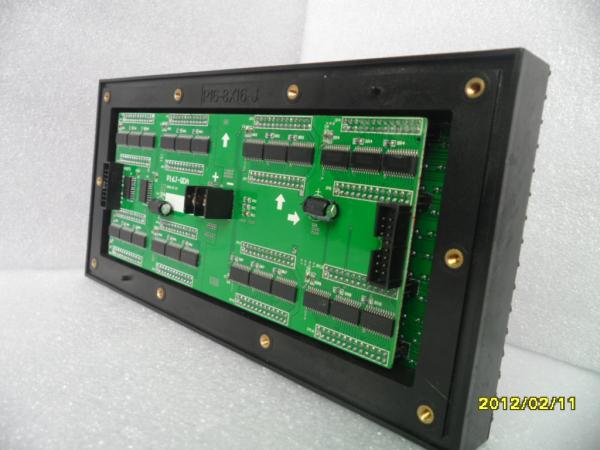

2 . Module

Module Size ( mm )

256 * 128 * 20

Module Pixels (dot)

16 * 8

3.Unit box

Module quantities in a unit box

4 (L) * 6 ( H )

Unit box size ( mm )

1024 (L) * 768 (H) * 180

Unit box Pixels ( dot )

64 * 48

Unit box material

Aluminum or Iron

Unit box weight (kg)

Aluminum : 42 or Iron : 55

4.Packaging

Packing Way

Two unit boxes

Packing box material

Wooden case or Flight box

Packing box size (mm)

1150 * 950 * 480

5.electricity parameter

Pixel density (dots/ m 2 )

3906

White Balance Brightness ( cd/m 2 )

≥ 6500

Color temperature ( K )

5000-9500 (choice by user)

Brightness Adjusted

100 grade by software or by Auto-optic induced.

View Angel

Horizontal 110 ° ; Vertical 70 °

Best viewing distance ( m )

16-150

Communication distance ( m )

Internet Wire : 120 Fiber Cable : 1000

Screen work Method

Static

LED driving method

Constant driving current

Gray Grades

16384 levels for each color

Display Color

4 , 398 , 046 , 511 , 104

Refresh Frequency ( Hz )

≥ 800

Picture display method

Dots to dots display synchronized with CRT

Signal interface

DVI

Input signal

Video : PAL/NTSC optioned . VGA, Svideo, DVD, TV

Display format

800 * 600 , 1024 * 768 , 1280 * 1024

Software

Support windows series system

Protection grades

IP 65

Working temperature (ºC )

-10 +50

Humidity ( RH )

Up to 95

Stored temperature ( ºC)

-30 +70

Screen Lifetime(hours)

≥100, 000

Out of controlled dots

≤3/10, 000 (Out of controlled dots means the pixels of which the brightness

and the wave length are both >10% depart to the normal one)

Whole display flatnes

Less than 1mm Juncture

Maintance way

Back-maintained or front-maintained,
modules displaced

Switch power supply

Switch power supply (include CE/GS or UL/CSA certificate) 110V/60HZ , 220V/50HZ

Power Consumption ( w /m 2 )

Max : 900 , Average: ≥ 450
