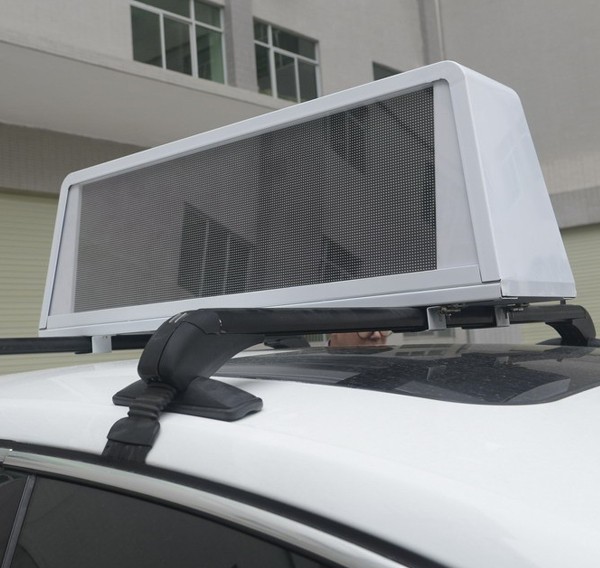

Digital car led display board , 3G taxi top sign 1/8 scanning
Digital car led display board , 3G taxi top sign 1/8 scanning
Digital car led display board , 3G taxi top sign 1/8 scanning
Digital car led display board , 3G taxi top sign 1/8 scanning
Digital car led display board , 3G taxi top sign 1/8 scanning
Digital car led display board , 3G taxi top sign 1/8 scanning
Digital car led display board , 3G taxi top sign 1/8 scanning
Digital car led display board , 3G taxi top sign 1/8 scanning
Digital car led display board , 3G taxi top sign 1/8 scanning
Digital car led display board , 3G taxi top sign 1/8 scanning
Digital car led display board , 3G taxi top sign 1/8 scanning
Digital car led display board , 3G taxi top sign 1/8 scanning
Specifications
Brand Name :
Meltonled
Model Number :
P5
Certification :
CE, RoHS, ISO,FCC,UL
Place of Origin :
Shenzhen, China
MOQ :
1pc/1sqm
Price :
1-100000usd
Payment Terms :
35% T/T as prepayment,65% T/T as balance at factory, Western Union, MoneyGram
Supply Ability :
>500sqm/month
Delivery Time :
8-25 days
Packaging Details :
Anti-shaking wooden case/flight case/carton
Delivery term :
Ex-work/FOB/CIF
Product Name :
Car display taxi top led display led advertising digital display board,3G taxi roof led display,taxi roof advertising
Application :
car
Display primary color :
rgb
Pixel Pitch :
5mm
Driving method :
1/8 scanning
Power consumption :
400w/m2
Input :
12v
Material :
Al
Description

Digital car led display board , 3G taxi top sign 1/8 scanning

Product Description

Display Specification
1 Pixel pitch 5 mm
2 Resolution 40,000 dots/sq.m
3 Display size (each side) W 0.96 × H 0.32 = 0.3072 sq.m
4 Screen resolution (each side) W 192 × H 64 = 12,288
5 Total module quantity (each side) W 6 × H 2 = 12 pcs
6 Total cabinet quantity 1 pc
7 Cabinet size (including frame) W 1012 × H 408 × D 160 mm
8 Power consumption (Max.) 650 W
9 Power consumption (Ave.) 435 W
10 Maximum Current 54.5 Amp
LED Module Specification
11 LED composition 1R 1G 1B
12 LED type SMD3528
13 Module resolution W 32 × H 32
14 Module size W 160 × H 160 mm
15 Driving method 1/8 scan constant current
Cabinet Specification
16 Cabinet material Aluminum cabinet with frame
17 Cabinet color Silver
18 Cabinet weight about 23 kg
19 Flatness Less than 1mm juncture
Optical Parameters
20 Brightness 3,000 nits/sqm
21 Viewing angle Horizontal 140°, vertical 70°
22 Minimum viewing distance 5 m
Power Supply
23 Power supply DC 9 ~ 36V
24 Output voltage DC 5V
Control System
25 Control card Sheenled
26 Memory 4G
27 Control method 3G
28 Refresh rate 480 HZ
29 Refresh frame frequency 60~85 HZ
Formats Supported
30 Video AVI, WMV, MPG, MOV, DAT, VOB, MP4, FLV
31 Animation GIF, SWF
32 Picture JPG, BMP, WMF
Reliablity
33 Protection grades IP65
34 Work temperature -20~+60ºC
35 Humidity(RH) 10~90%
36 LED Life span More than 100,000 hours
37 MTBF 5000 hours
38 Out of controll dot rate Less than 1/10,000

Application area

(1)advertising, digital billboards, advertising for big companies.

(2)Stage background

(3)Airports, bus stations and railway passenger terminals.

(4)Department stores, banks and car dealerships.

(5)Show-business, concerts, festivals, and other public events.

(6) taxi, bus, car, bus stops

Digital car led display board , 3G taxi top sign 1/8 scanning

Competitive Advantage:
1. We can provide customers a comprehensive solution delivery of series-related products
2. We can provide customers high quality products which allow they to scream
3. We can provide custom-made service.
4. We can provide customers one year free warranty, and support renewals extended
5. We can provide customers the free installation guidance and technical support
6. We willing to provide any countries and regions in the world with products and technical support. at present, our product has covered more than 100 countries and regions.
