Specifications
Brand Name :
Mled
Model Number :
T-P5-10
Certification :
CE RoHS
Place of Origin :
China
MOQ :
1PC
Price :
1000USD
Payment Terms :
T/T, Western Union, MoneyGram, L/C,
Supply Ability :
500PS
Delivery Time :
5-10 days
Packaging Details :
Carton box,wooden case,flight case
Material :
Al
Application :
car advertising
Brightness :
3000cd
Output :
12V
Weight :
35KG/set
Description

P5mm Taxi Top Led Display board Of Full Color Waterproof SMD2020 1R1G1B

Technical Specs

Item Parameter
Module Pixel Pitch 5mm
Pixel Density 40000 pixels/m2
Pixels Composition SMD2020 1R1G1B
Module Resolution(H×V) 60 pixels × 60pixels
Module Dimension(H×V) 160mmX160mm
Drive IC MBI5024
LED Chip R:Opto, GB: Silan
Drive Mothod 1/8 scan
Max. Power Consumption/module 12w
Screen Display size 960x320mm
Resolution 192pixelsX64pixels
Cabinet Quantity 1PCS
Module Quantity 24PCS+1PCS(spare)
Control System 1 sending card +2receiving cards
Main Particular Cabinet Material aluminum
Power Consumption/Cabinet <900w
Ingression Proof Grade IP 65 waterproof cabinet
Brightness(static) ≥5000cd/m2
Optimal Viewing Distance >5m
Inputting Voltage DC12V
Optimal Viewing Angle H≤120°, V≤120°
LED Life Span 50,000 - 100,000 hrs
Operating Enviroment -20°C~+60°C; Humidity: 10% -90%

1.Best price & High quality
2.Commnunication:RS 232 Wired / U-disk / GPRS

3.Certification:CE & ROHS
4.Warranty:2year

Product Description

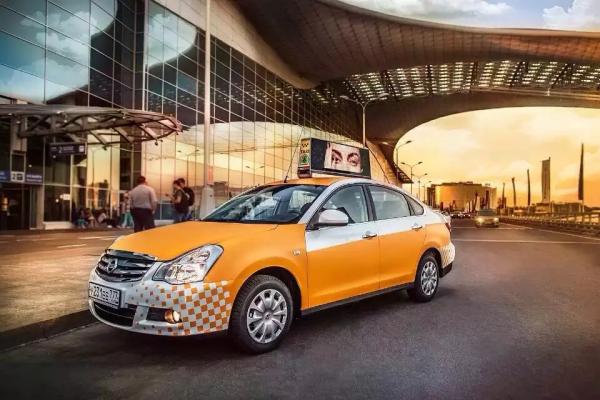

Taxi top display now is so popular all over the world. Widely used for message and video advertising.

It'll bring you more benefit from advertising and social reputation.
We had already done many sucessful projects and helped our customers enlarging their markets ,hot saling now with very good price. We have P4, P5, P6. Size can be customized.
Hope to keep in touch with you and any inquire or question will be welcome.

Service:

1,Lifetime service

2,Good quanlity

3,Low price
