Specifications
Brand Name :
HUAYIN
Model Number :
HY-ICPPC15R
Certification :
CE, FCC, ROHS, ISO
Place of Origin :
CHINA
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
50000 UNITS/M
Delivery Time :
2-4 Weeks
Packaging Details :
Exported Carton Box
CPU :
RK3288
RAM :
4G DDR3
Storage :
64GB MSATA MLC SSD
OS :
Android
Voltage :
9~12V wide voltage
Size :
384.3x243.9x55.2mm
Description

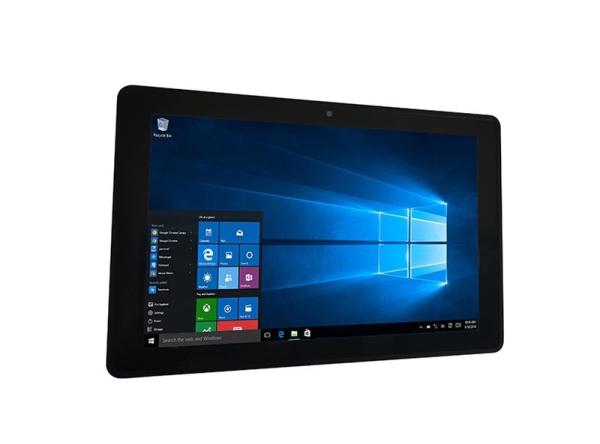

Android 15.6 inch Industrial Fanless Panel PC with RK3288 CPU, Multi-points Capacity Touch

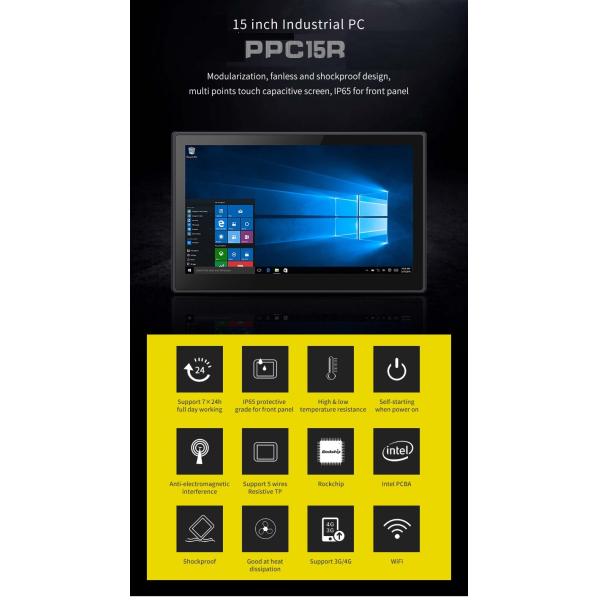

PPC15R Touch Panel PC is designed for HMI application, RK3288 processor, on-board 2GB,8GB eMMC, equipped with 15.6 inch LCD display and capacitive touch screen. DC 12V input,Fanless with low consumption.


The product support panel embedded,VESA and wall-mounted installation,convenient installation and maintenance.Fanless deisgn to ensure computer more stable operating.The internal heat of the system is rapidly dissipated by the external surface heat sink, enabling it to
adapt to more severe environment;It can be widely apply for Factory automation,machine manufacturing,CNC equipment,textile equipment,intelligent power,food traceability etc monitoring and control system.


PPC15R is compatible with Android 5.0 and above OS and embedded OS,also can support customized OS which is based on above systems and install industrial automation configuration software to comprise powerful HMI.

Features:


● RK3288 1.8GHz CPU
● RAM DDR3 2GB on-board
● eMMC 8GB
● Fanless with low consumption
● Wide Temperature Operating: 0℃ ~ 60℃
● IP65 of front panel
● DC12V Input

Specification:

Model Specification
PPC15R/15H CPU

RK3288 SoC Cortex-A17 Quad Core@ 1.8GHz

Intel Atom® x5-Z8350
LCD 15.6 inch 16:9 1366×768,350cd/㎡
TP Multi-points touch
RAM 2G DDR3
SSD 8GB
Speaker built-in 4Ω/2W x2
Connector SIM *1
TF *1
USB2.0*4
Φ3.5mm earjack x1
1*MiniPCIE X1 3G 4G WIFI BT
HDMI*1
COM*2 RS232
LAN*110/100/1000Mbps)
WIFI 802.11(a/b/g/n/ac) 2.4G+5.8G WIFI
BT4.2(BLE)
DC 12V Φ5.5mm
Optional
RAM Upgrade 2GB update to 4GB
SSD Upgrade 8GB update to 32GB
3G,4G LTE Module Mini-pcie interface ( USB and PCIe signal compatible)
Quectel EC25-AU Mini PCIe
Optional Accsessory
US standard power cable 10A 125v L=1.5m 3*0.824
Europe standard power cable 10A 125v L=1.5m 3*0.824

Android 15.6

Android 15.6

Android 15.6

Android 15.6

Android 15.6

Android 15.6
