Specifications
Brand Name :
HUAYIN
Model Number :
HY-I16K
Certification :
CE, FCC, ROHS, ISO
Place of Origin :
CHINA
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
50000 UNITS/M
Delivery Time :
2-4 Weeks
Packaging Details :
Exported Carton Box
Feature :
Waterproof
Charging interface :
DC 5V 3A
Camera :
Front camera 2.0MP, rear camera 5.0MP
Processor :
Intel Atom x5-Z8350
Memory capacity :
Minimum 4G LPDDR3
Touch screen :
Capacity screen
Resolution :
1280x800
Operation System :
Window 10
Weight :
737g
Storage :
64/128G
Communication :
4G/3G/2G, WiFi(2.5G+5.8G)+BT4.1
Battery :
7800mAh
Application :
1D/2D Barcode Scanner, NFC, GPS
Description

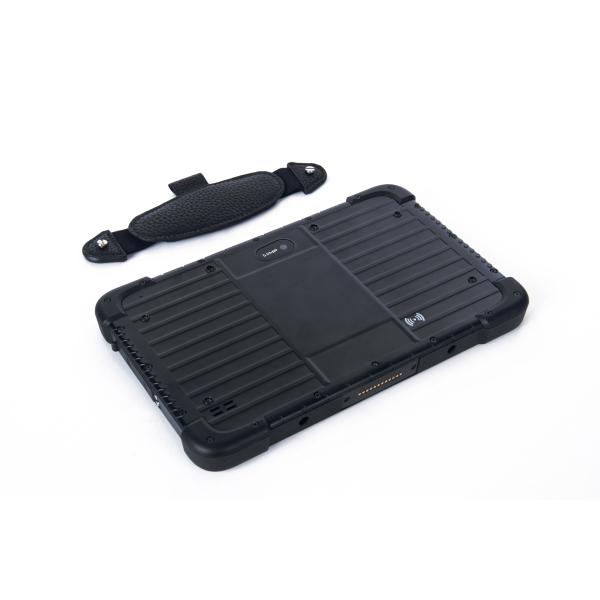

Touch Screen Outdoor Rugged Windows 10 Android Tablet With Fingerprint Reader 8gb RAM GNSS RJ45

Packaging & Delivery

Selling Units:
Single item
Single package size:
63.5X37.5X6 cm
Single gross weight:
1.382 kg
Package Type:
1). Packing list: Device, giftbox, charger, strap
2). Optional accessories: leather protective case, charger in vehicle, strap,charging docking, vehicle mount holding.
Lead Time :

Quantity(Pieces)

1 - 100

>100

Est. Time(days)

7

To be negotiated

Product Parameters

1).Industry Solutions/Products Usage:

-Logistics, Warehouse, Retail, Medical treatment, Services.

-Vehicle-holder, Smart Factory, Smart Home, Oil Exploration.

-Vehicle/Pipeline/Outdoor detection, Police Law Enforcement.

-Education, Map Survey&draw, Customs Anti-smuggling.ect.

2).Main Points:

-Rugged IP67 protective grade for waterproof & dustproof

-Intel Atom® x5-Z8350 (Cherry Trail)/Win10/Gorilla glass TP -1D/2D barcode scanner/NXP NFC(13.56M)

3).Industrial Accessories:

-Strap/Charging docking/Vehicle holder/Leather cover

Model No.
HY-I16K Specification
HY-I16K
CPU
Intel® Core™ Kabylake m3-7Y30 / m3-6Y30
OS
Windows 10 Home
LCD
10.1" 10 points touchscreen (1200*1920 IPS)
RAM
4G DDR3L
Flash
128GB
Wi-Fi
802.11(a/b/g/n/ac) (2.4G+5.8G dual band wifi)
Camera
Front2.0MP,Rear8.0MP AF
BT
BT4.2
Battery
7.4V/5000mAh removable battery
3G Module
FIBOCOM_H380-GL (M.2) :GSM/GPRS/EDGE Band(850&900&1800&1900 MHZ), WCDMA Band(850&900&1900&2100MHz),HSDPA 21Mbps,HSUPA 5.76 Mbps
Speaker
Built-in 8Ω/0.8W Speaker x 1
Sensor
G-Sensor
GPS
U-blox NEO-7
TF Card
Support SDHC/SDXC x1 max:128G
USB connector
USB 2.0*1(Micro USB) USB3.0*1 (typeA)
Earphone Jack
ф3.5mm standard headphone port
DB9 UART PORT
1 (RS232) TTL *1
RJ45 PORT
internet port*1(10/100 self-adaption)
HDMI connector
HDMI 1.4a Type C x1
Optional
OS
Windows 10 Home OS (4G DDR3L +128GB)
Windows 10 Home OS (8G DDR3L +128GB)
Windows 10 Pro OS (4G DDR3L +128GB)
Windows 10 Pro OS (8G DDR3L +128GB)
Windows 10 IOT Enterprise (Kabylake 7Y30平台)
DDR upgrade
4G DDR update to 8G DDR
4G LTE module
Quectel EC25-AU/M.2
AR FILM
AR FILM
Fingerprint Reader
SA-FC01A04-513-A0 (汇顶IC)
1D barcode
MOTO module
2D barcode
Honeywell module
Air outlet
*1( build in small board for customer customized )
Optional Accsessories
Handle
Easy to pick up.
Hand Straps
Easy to hold the device in the palm of your hand.
Shoulder Straps
Easy to be shouldering.
Leather Case
To protect the device.
Charging Docking
DC22K
Removable battery
7.4V/5000mAh
Charger in vehicle
Can charge the device in vehicle.
Vehicle mounted holder Kits
Fixed the device to the vehicle to use when driving.
Three-in-one Adaptor
US UK AUS three standard type in one adaptor.

8gb RAM GNSS RJ45 Rugged Android Tablet With Fingerprint Reader

8gb RAM GNSS RJ45 Rugged Android Tablet With Fingerprint Reader

8gb RAM GNSS RJ45 Rugged Android Tablet With Fingerprint Reader8gb RAM GNSS RJ45 Rugged Android Tablet With Fingerprint Reader

8gb RAM GNSS RJ45 Rugged Android Tablet With Fingerprint Reader

FAQ


Q: Are you the original rugged device manufacturer?
A: Yes,We are. Every product within its PCBA and plastic housing are entirely independent R&D company,only our cost of the plastic mold(tooling) R&D fee is more than USD 1.6 million dollars, just for good quality rugged products. We have many agents & distributors in others Alibaba shops,we are the source of their rugged products some of what they sell.

Q: What kind of services can you provide?

A: We have two services models, one is OEM/ODM service,which is with customer’s brand based on our standard products, the other is provide customization service according to the customer’s individual demands, which are including appearance design, structure design, mold development, soft & hardware development, technical support and etc.

Q: What are your product lines?

A: We have been engaged in the R&D and production of rugged products for more than 10 years within the industry, and we have over 600 workers till now, of which R&D employees are more than 50%.There are three self-developed product lines:

1).Rugged Product Series: Rugged handheld (4’’/5’’/6’’), Rugged tablet (7’’/8’’/10’’/11.6’’/12.2’’),Rugged notebook (11.6’’/12.2’’/14’’/15.6’’).

2).Industrial Computer Product Series: Heavy-duty panel PC (8"/10"/12"/15"), Light-duty panel PC (10"-21"), Industrial Fanless PC Box.

3).Medical Treatment Product Series: Medical PDA, Medical tablet, Digital medical display terminal.

Q: How about your after sale?

A: 1 year warranty ensured from the date of delivery. Free repairing is available for functional problems of non-artificial damage, otherwise that will be charged. Once you have after-sales need, our FAE employees will provide remote technical support & send maintenance materials first, FAE employees can also be sent to the customer's place to repair depending on the situation, or customer can directly send the damaged products back to Hongkong city where we has a maintenance center there , they will be repaired and send it out quickly.
