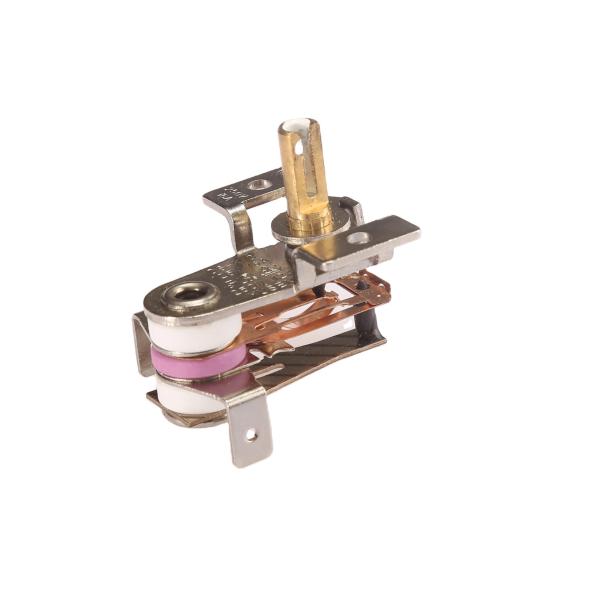

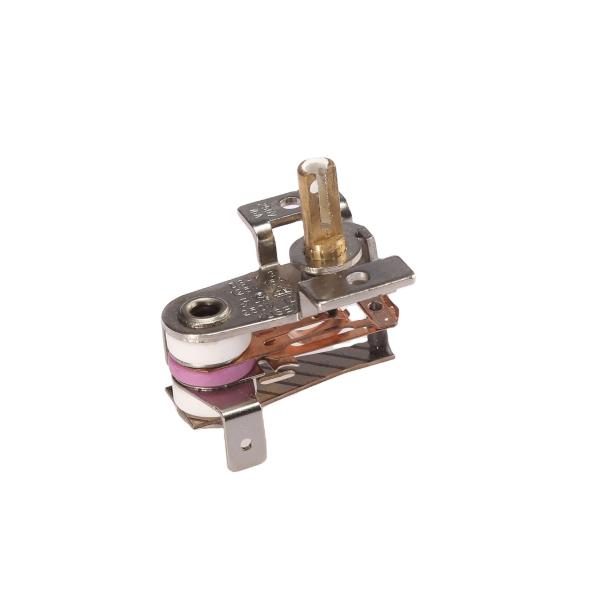

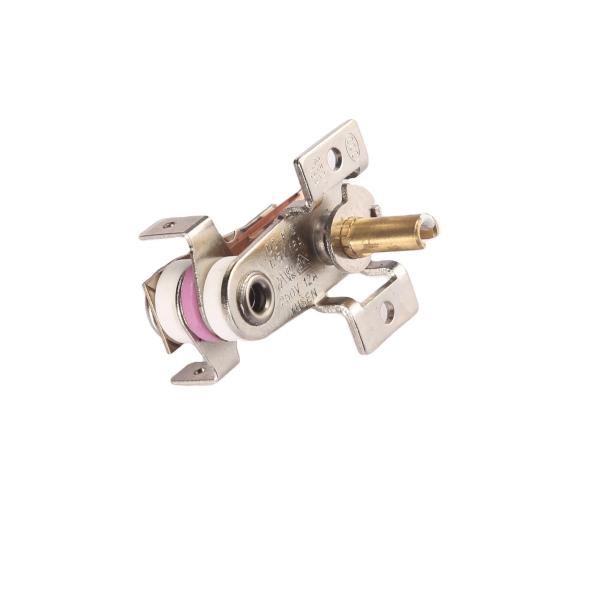

KST 207 Bimetallic Switch Thermostat Temperature Controller for Electric Oven in Household
KST 207 Bimetallic Switch Thermostat Temperature Controller for Electric Oven in Household
KST 207 Bimetallic Switch Thermostat Temperature Controller for Electric Oven in Household
KST 207 Bimetallic Switch Thermostat Temperature Controller for Electric Oven in Household
KST 207 Bimetallic Switch Thermostat Temperature Controller for Electric Oven in Household
KST 207 Bimetallic Switch Thermostat Temperature Controller for Electric Oven in Household
KST 207 Bimetallic Switch Thermostat Temperature Controller for Electric Oven in Household
KST 207 Bimetallic Switch Thermostat Temperature Controller for Electric Oven in Household
KST 207 Bimetallic Switch Thermostat Temperature Controller for Electric Oven in Household
KST 207 Bimetallic Switch Thermostat Temperature Controller for Electric Oven in Household
Specifications
After-sales Service Provided :
Free spare parts
Warranty :
None
Type :
Other Home Appliance Parts
Application :
Household
Power Source :
Electric
Place of Origin :
Guangdong, China
Brand Name :
yusen
Model Number :
DS-K
Voltage Current :
CUL :125V/16A ;VDE : 250V / 12A
Endurance test Cycle :
100,000 times
Operating Temperature :
50-250 ℃
Tolerance :
5℃%
Port :
Guangzhou
Supply Ability :
300000 Piece/Pieces per Month
MOQ :
1000 pieces
Price :
$0.45/pieces 1000-9999 pieces
Description
KST 207 Bimetallic Switch Thermostat Temperature Controller for Electric Oven in Household
Product Description
KST 207 Bimetallic Switch Thermostat Temperature Controller for Electric Oven in Household
kst 207 bimetal switch temperature control for electric oven
Main applications :
1) Oven, barbeque grill and various household appliances.
2) Fan heater
3)Electrical irons.
Principle:
Adjustable thermostat is based on bi-metal action in the principle of expansion and contraction. Bimetal thermostats turn on and
off within prescribed temperature range.
KST 207 Bimetallic Switch Thermostat Temperature Controller for Electric Oven in Household
Certificate
KST 207 Bimetallic Switch Thermostat Temperature Controller for Electric Oven in Household
Product Paramenters
Electrical Performance
10A/AC250V16A/AC 250V
Temperature Range
0 ºC-250°C
Ambient Temperature
T250°C
Wiring
A. Terminal Blocks :M4,M3
B.Plug terminal : 250#187#(0.8mm thick and bending: 30°,45°,90°,180°is available)
Product Cycles
100,000cycles
Thermostat Shaft Rotation Angle
150°,180°,210°,250°,270°,300°,310°
Electrical Strength
AC2000V/0.5mA/min
Insulation Resistance
>100MΩ
Contact Resistance
≤50MΩ
Grounding Method
Mounting plate or install oranges electrical enclosure parts connected by thermostat
KST 207 Bimetallic Switch Thermostat Temperature Controller for Electric Oven in Household
KST 207 Bimetallic Switch Thermostat Temperature Controller for Electric Oven in Household
KST 207 Bimetallic Switch Thermostat Temperature Controller for Electric Oven in Household
KST 207 Bimetallic Switch Thermostat Temperature Controller for Electric Oven in Household
